Section 07 BODY AND HULL
Subsection 02 (BODY)
smr2009-042-064_a

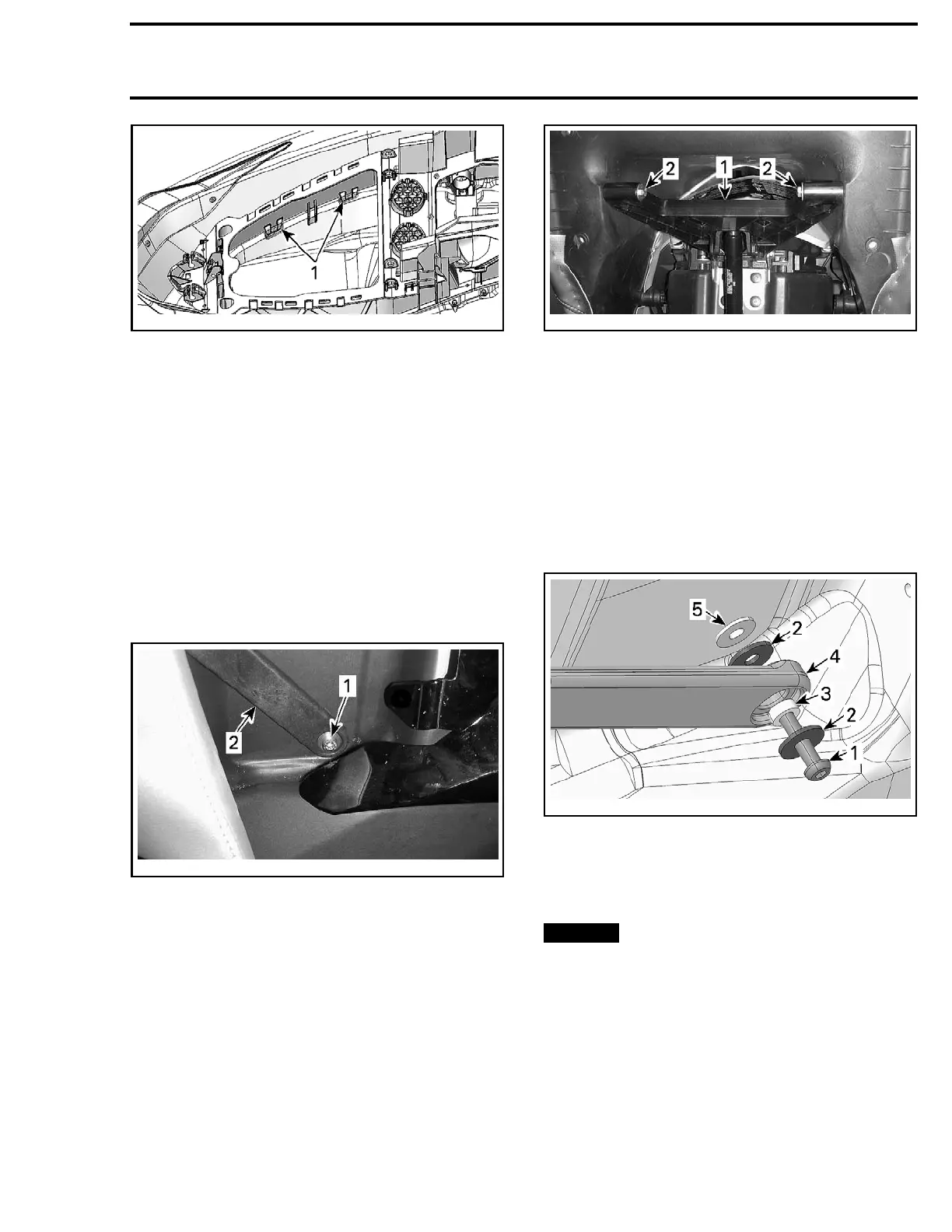

1. Front body module retaining tabs
6. Remove front body module.
Front Body Module Installation
The installation is the reverse of the removal pro-
cedure.
SEAT
Seat Removal
1. Open seat.
2. Attach the seat to support it during removal.
3. Remove Allen socket screw retaining the lateral
arm to moving deck (one each side).
smr2009-042-026_a
1. Allen socket screw
2. RH lat
eral arm
4. Remove bolts securing the central arm to seat.
smr2009-042-027_a
1. Central arm
2. Retaining bolts
5. Remove seat from vehicle.
Seat Installation
The installation is the reverse of the removal pro-
cedure. However, pay attention to the following.
Install seat to central arm. Tighten bolts to 4 N•m
(35 lbf•in).
Secure lateral arms to moving deck. Install parts
as shown.
smr2009-042-032_a
1. Allen so
cket screw
2. Stainless steel flat washers
3. Sleeve
4. RH late
ral arm
5. Rubber grommet in moving deck
Tighten screws to 1.5 N•m (13 lbf•in).
NOTICE
Do not t
ighten screws over this
recomm
ended torque. Otherwise, the rubber
gromme
t could turns and screw will be hard
to remo
ve.
Seat Cleaning
For gen
eral purpose cleaning, use
BRP PLASTIC &
VINYL C
LEANER (P/N 413 711 200)
, Vinyl Finish Vinyl
Clean
er, Fantastik or warm water with a mild dish
soap s
uch as Dawn or Ivory. Gently scrub with a
small
soft bristle brush.
