Section 02 ENGINE
Subsection 09 (COOLING SYSTEM)
WATER PUMP HOUSING

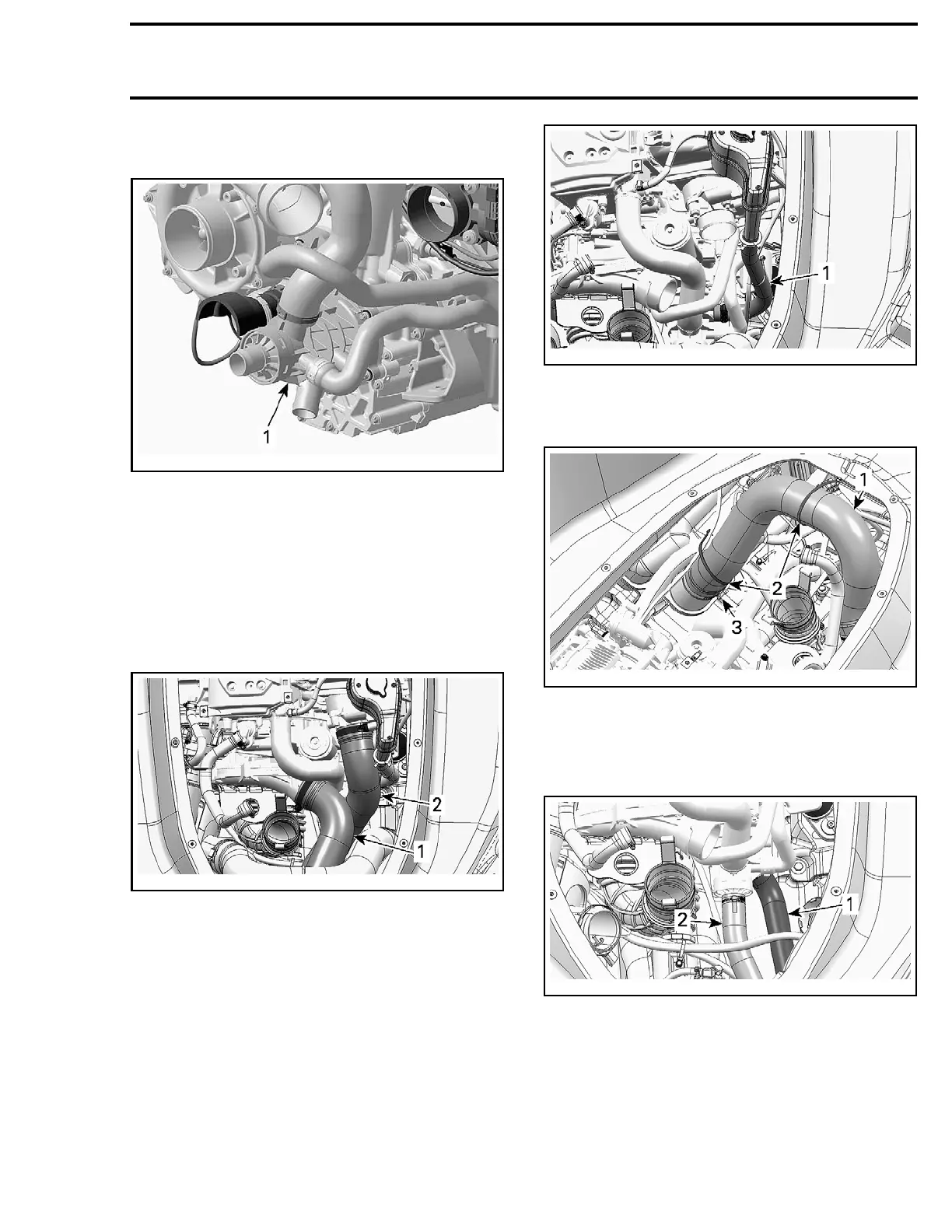

smr2009-024-004_b
1. Water pump housing
Water Pump Housing Removal
Remove the moving deck. Refer to
BODY
sub-
section.
Remove the air intake silencer. Refer to
AIR IN-
TAKE SYSTEM
subsection.
Remove both air hoses from intercooler to reach
supercharger.
smr2009-024-104_a
1. Intercooler air inlet hose
2. Intercooler air outlet hose
Drain cooling system and engine oil.
Disconnect the coolant expansion tank hose from
water pump housing and move expansion tank
aside to make room.
smr2009-024-105_a
1. Expansion tank hose
Disconnect exhaust hose from the resonator.
Place hose over muffler.
smr2009-024-106_a
1. Exhaust hose
2. Cut thes
e locking ties
3. Retaining clamp
Disconnect ride plate hoses from water pump
housing.
smr2009-024-107_a
1. Ride plate outlet hose
2. Ride plate inlet hose
Disconnect the cylinder head outlet hose and oil
cooler hoses.
smr2009-024 121
To Next Page
