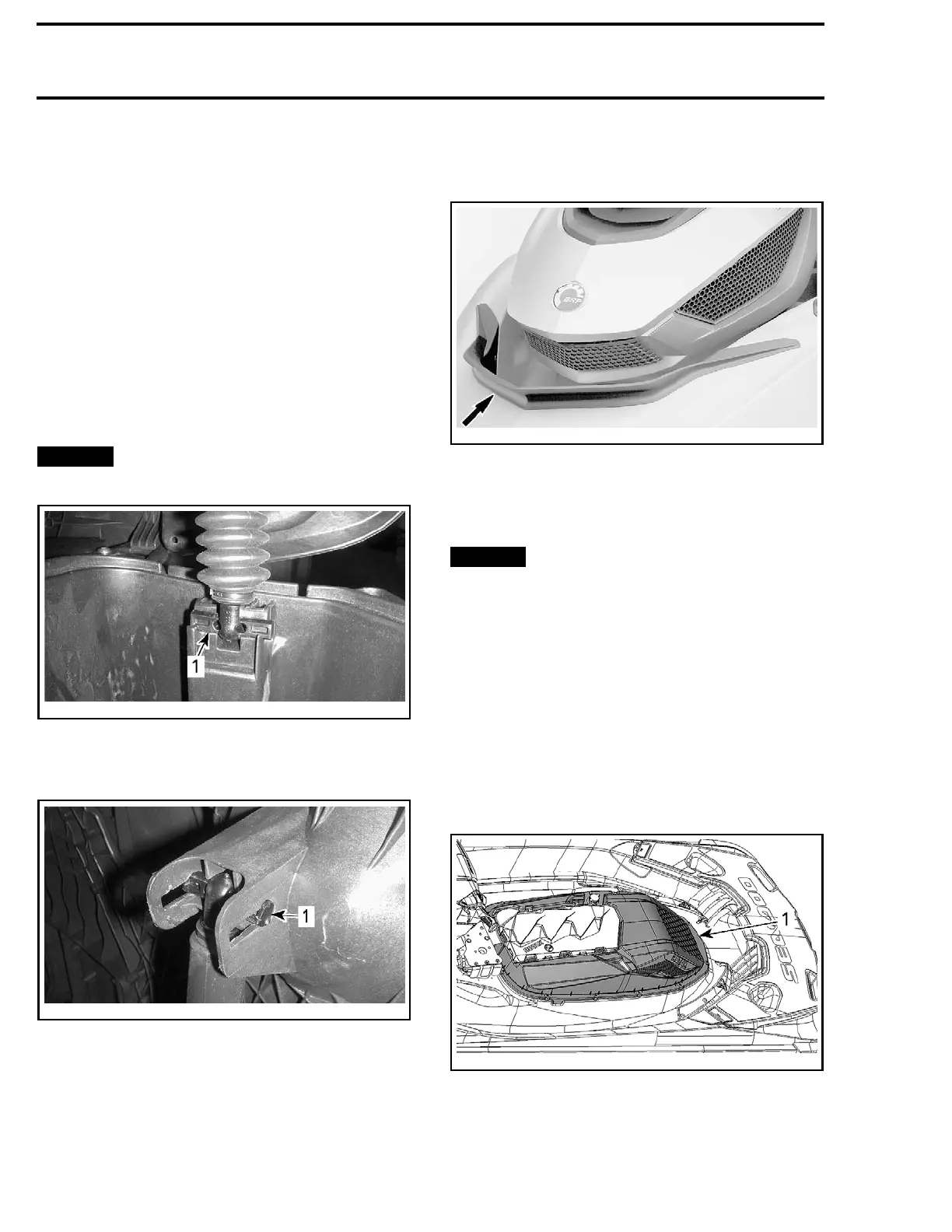

Section 07 BODY AND HULL
Subsection 02 (BODY)
2. Apply LOCTITE 243 (BLUE) (P/N 293 800 060) on
threads of shock absorber body.
3. Tighten manually the attachment on gas shock.
4. Install the bellows and secure it using a locking
tie.
5. Install the gas shock on cover.
NOTE: The corrugated section of bellows must
pointed downward.
6. Align boarding platform hinge openings with flat
sides of fixed hinges.
7. Push in the boarding platform to assemble
hinges.
8. Position the bottom of the gas shock on cavity
opening.
NOTICE
To avoid breaking the attachment,
do not force to insert it in cavity.
smr2009
-042-038_a
1. Lower attachment on cavity opening
NOTE: Make sure upper attachment is properly
inserted in its slots.
smr2009-042-039_a
1. Upper attachment
9. Close boarding platform to lock the bottom of
the gas shock.
10. Lock boarding platform.
SPLASH DEFLECTOR
Splash Deflector Removal
sdd2009-001-052_a
1. To remove the splash deflector, drill out the 4
rivets securing the splash deflector to the fixed
deck.
2. Pull the deflector from the fixed deck.
NOTICE
A molded location pin at each end
of the deflector are each inserted into the fixed
deck. Be careful not to break them when re-
moving the deflector.
Splash Deflector Installation
1. Position the splash deflector over the forward
end of the fixed deck and press the guide pins
into the holes provided in the deck.
2. Install four new rivets to secure the deflector to
the deck.
DECK EXTENSION
smr2009-042-009_a
1. Deck extension
Deck Extension Removal
1. Open seat.
2. Remove vent box.
468 smr2009-042
