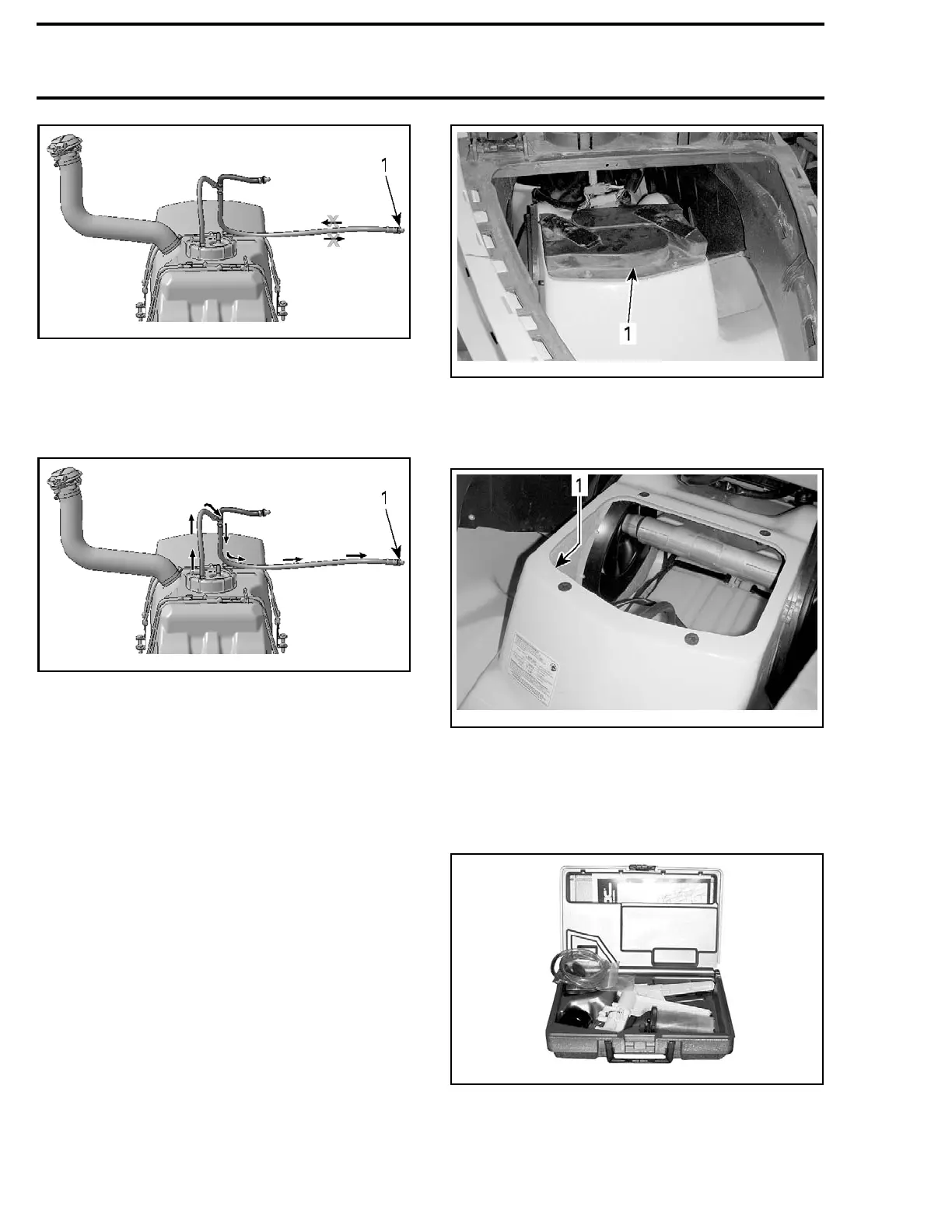

Section 04 FUEL SYSTEM
Subsection 03 (FUEL TANK AND FUEL PUMP)
smr2009-031-002_c
1. Outlet valve
If pressure in fuel tank build up and exceed
2.8 kPa - 7.6 kPa (.4 PSI - 1.1 PSI), the outlet valve
opens and let excess pressure evacuate outside
fuel tank.
smr2009-031-002_d
1. Outlet v
alve
INSPECT
ION
FUEL TAN
KLEAKTEST
Fuel Tank Test
Fill up f
uel tank.
Close fuel tank cap.
Open front storage compartment cover and re-
move storage bin.
Remove f
ront ventilation box.
smr2009-031-008_a
1. Ventilation box
Visually inspect condition of hoses and clamps.
Pull out inlet valve from its grommet.
smr2009-031-009_a
1. Pull out inlet valve
Make su
re that grommets of inlet and outlet
valves
are not plugged.
Use the
VACUUM/PRESSURE PUMP (P/N 529 021
800)
.
5290
21800
NOTE: A Y-fitting and a check valve can be in-
stalled to use compressed air for quick pressure
build-up when fuel tank is not full.
258 smr2009-031
