Section 06 STEERING AND PROPULSION
Subsection 02 (iBR AND VTS)
sdd2009-001-042_a

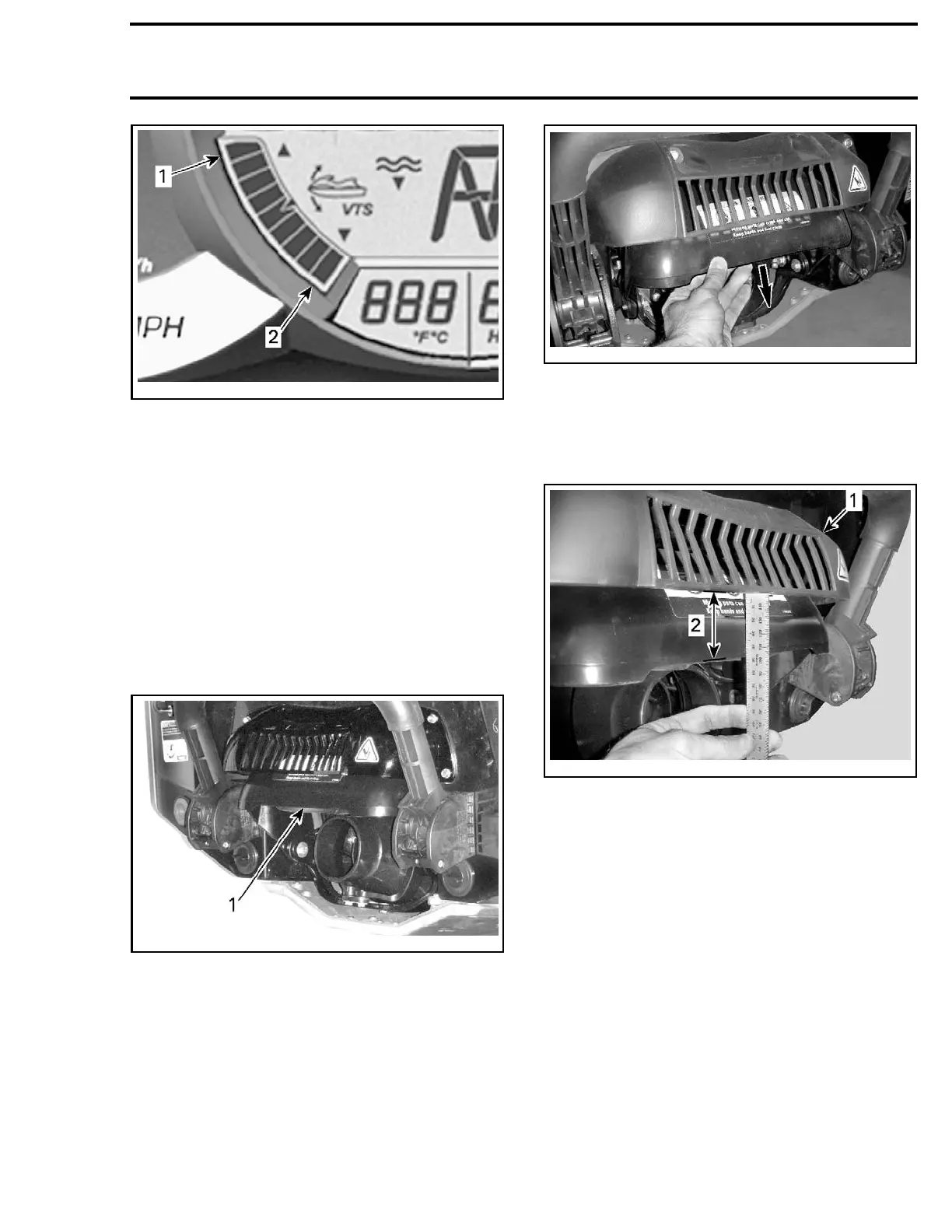

INFORMATION CENTER — VTS POSITION INDICATOR
1. Bow up
2. Bow down
NOTE: Only the segment indicating the relative
position of the VTS will be on. The illustration
shows all segments on as can be seen during the
self test function.
MAINTENANCE
iBR GATE BACKLASH CHECK
1. Using the iBR override function, move the iBR
gate to the up position. Refer to
SYSTEM DE-
SCRIPTION (iBR)
in this subsection.
smr2009-038-017_a
1. iBR gate moved to up position
2. Take hold of the lower edge of the iBR gate and
pull down on it slightly, then release it.
smr2009-038-026_a
PULL DOWN SLIGHTLY ON iBR GATE
3. Using a machinists ruler, measure the distance
between the bottom of the guard and the
trailing edge of the iBR gate (example 48 mm
(1.89 in)). Note as measurement "A".
smr2009-038-018_a
1. iBR guard
2. Measurement "A"
4. Without using excessive force, push up on the
trailing edge of the iBR gate to pick up the
backlash in the gate mechanism. As you hold
the gate up, measure the distance between
the trailing edge of the guard and the trailing
edge of the iBR gate again (example 41 mm
(1.61 in). Note as measurement "B".
smr2009-037 379
