Section 04 FUEL SYSTEM
Subsection 02 (ELECTRONIC FUEL INJECTION (EFI))

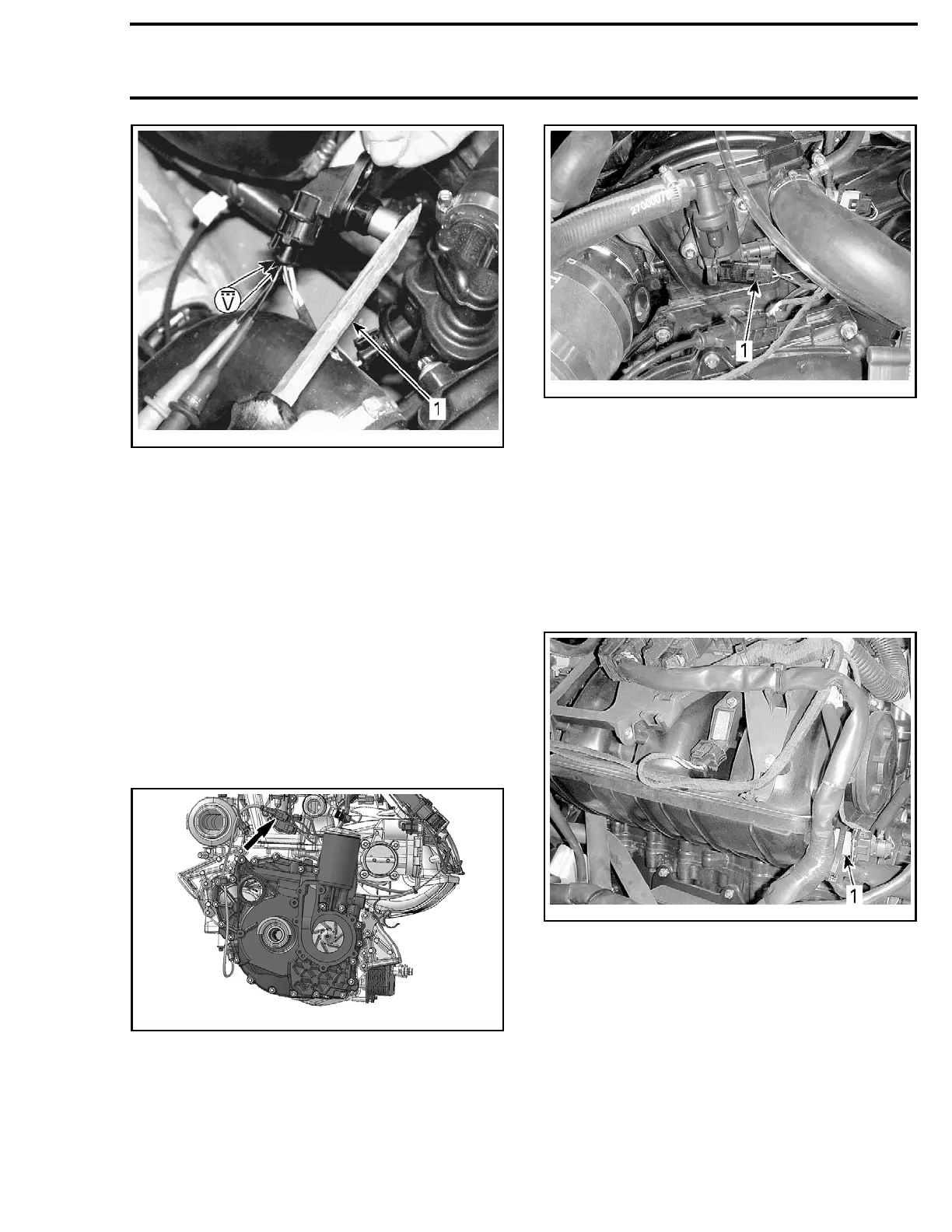

smr2007-021-009_c
1. Metallic object
If voltage is appropriate, check/repair wiring/con-
nector between sensor and ECM. If it is good,
check ECM. Refer to
ENGINE CONTROL MOD-
ULE (ECM)
.
If voltage is wrong, try a new CAPS.
CAPS Replacement
Open seat.
Remove rear ventilation box. Refer to
AIR INTAKE
SYSTEM
.
Remove deck extension. Refer to
BODY
.
Remove air intake silencer. Refer to
AIR INTAKE
SYSTEM
.
Detach CPS connector from its holder.
smr2008-023-016_a
TYPICA
L
Disconnect CAPS connector.
smr2009-030-034_a
1. CAPS connector
Unscrew the retaining screw.
Pull out CAPS from engine.
Install the CAPS. Ensure to reinstall O-ring.
Apply Loctite 243 (blue) on thread and torque to
9N•m(80lbf•in).
MANIFOLD AIR TEMPERATURE
SENSOR (MATS)
smr2009-030-036_b
1. Manifold air temperature sensor (MATS)
MATS Resistance Test
To gain access to the MATS, remove the required
parts as described in
MATS REPLACEMENT.
Disconnect the MATS connector.
smr2009-030 245
