Section 02 ENGINE
Subsection 08 (LUBRICATION SYSTEM)

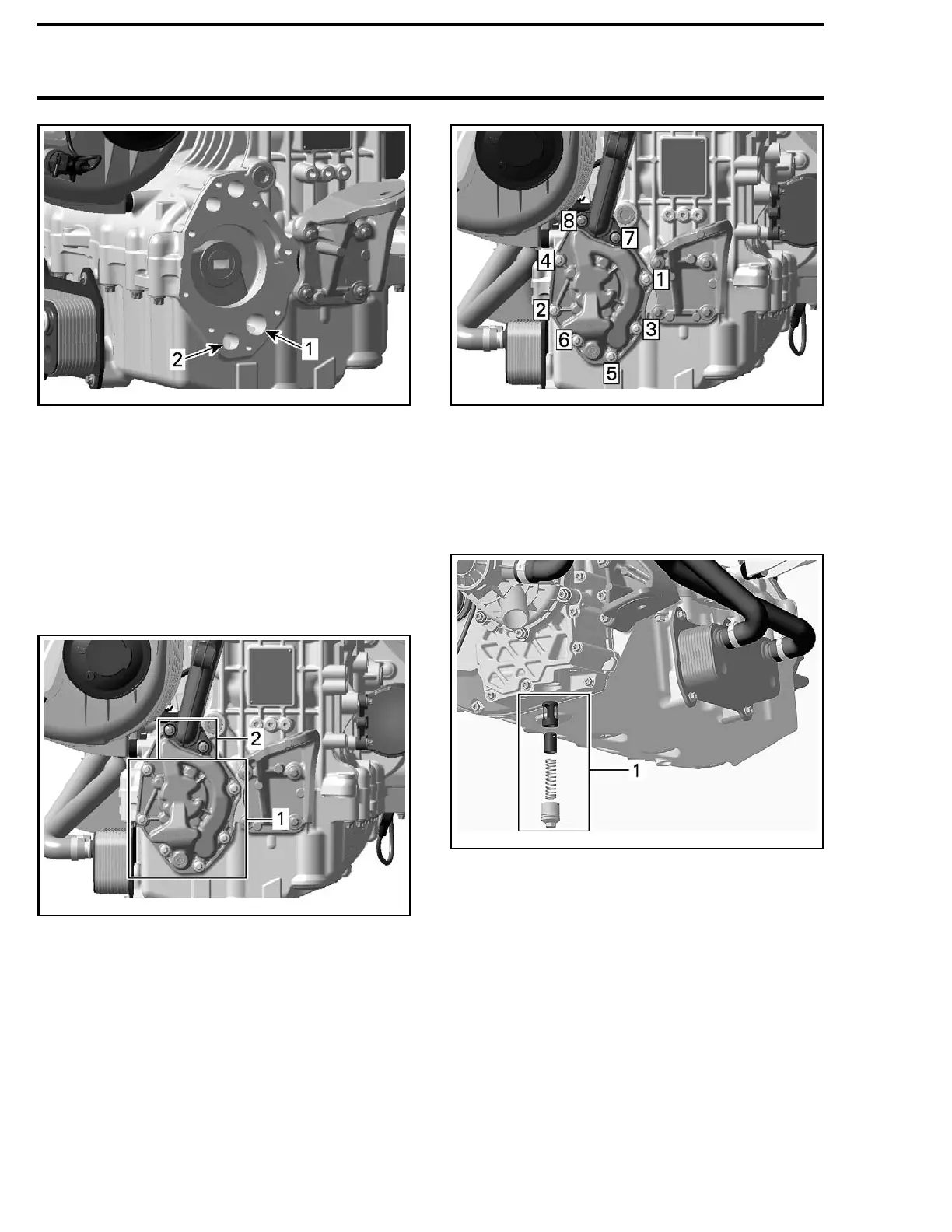

smr2009-023-007_a
1. Oil inlet
2. Oil outlet
Suction Pump Oil Strainer Installation
For installation, reverse the removal procedure.
However, pay attention to the following.
Apply
LOCTITE 243 (BLUE) (P/N 293 800 060) on
threads of the suction pump cover screws and
tighten them to 9 N•m (80 lbf•in).
Position screws according to their length as
shown.
smr2009-023-008_a
1. Screws M6 x 25
2. Screws
stainless steel M6 x 45
Torque suction pump cover screws as per se-
quence illustrated below.
smr2009-023-009_a
TIGHTENING SEQUENCE
ENGINE OIL PRESSURE
REGULATOR
The oil pressure regulator is located on the bottom
of the PTO housing.
smr2007-015-005_a
TYPICAL
1. Oil pre
ssure regulator
NOTE: The oil pressure regulator system opens
when the oil pressure exceeds 400 kPa (58 PSI).
Oil Pressure Regulator Removal
Remove engine oil. See procedure in
OIL
CHANGE
in this subsection.
Remove
:
– Oil pressure regulator plug
– Compression spring
–Valve
piston
– Valve piston guide.
98 smr2009-023
