Section 07 BODY AND HULL
Subsection 02 (BODY)

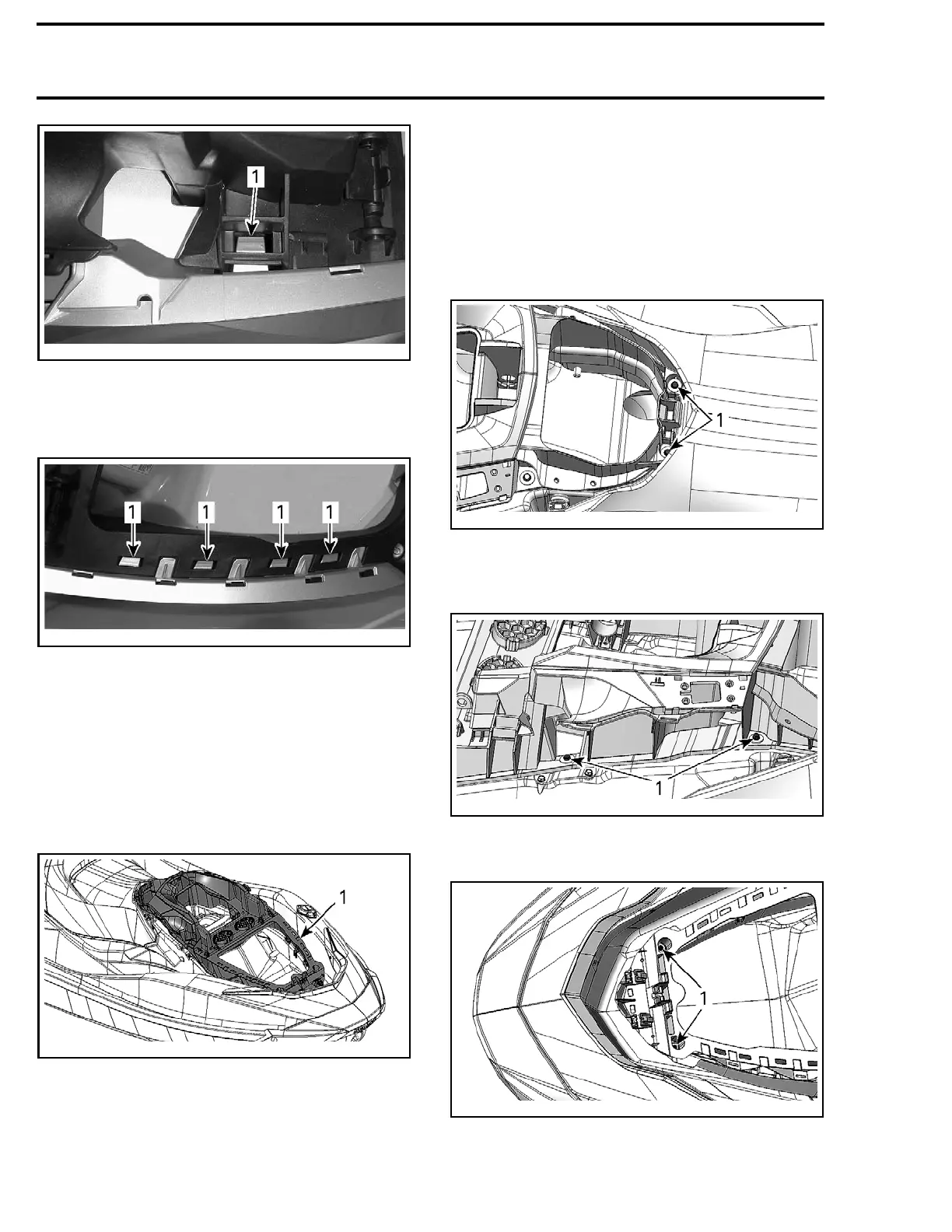

smr2009-042-059_a
RH SIDE SHOWN
1. Center retaining tab
10. Unlock the four retaining tabs securing the
front of body cover.
smr2009-042-060_a
RH SIDE S
HOWN
1. Front retaining tab
11. Remove body covers.
Body Cov
er Installation
The installation is the reverse of the removal pro-
cedure.
FRONT BODY MODULE
smr2009-042-065_a
1. Front body module
Front Body Module Removal
1. Refer to appropriate procedures and remove
the following parts:
– Storage compartment cover
– Storage bin
– Glove box cover
– Body covers and front grille
– Steering and steering lock
– Speed-Tie unit (if equipped).
2. Remove both screws and washers located be-
tween seat and glove box.
smr2009-042-061_a
1. Rear reta
ining screws
3. On each side of front body module, remove
both retaining screws.
smr2009-042-062_a
1. LH side retaining screws
4. At the front of body module, remove screws.
sm
r2009-042-063_a
1. Front retaining screws
5. Unlock retaining tabs.
480 smr2009-042
