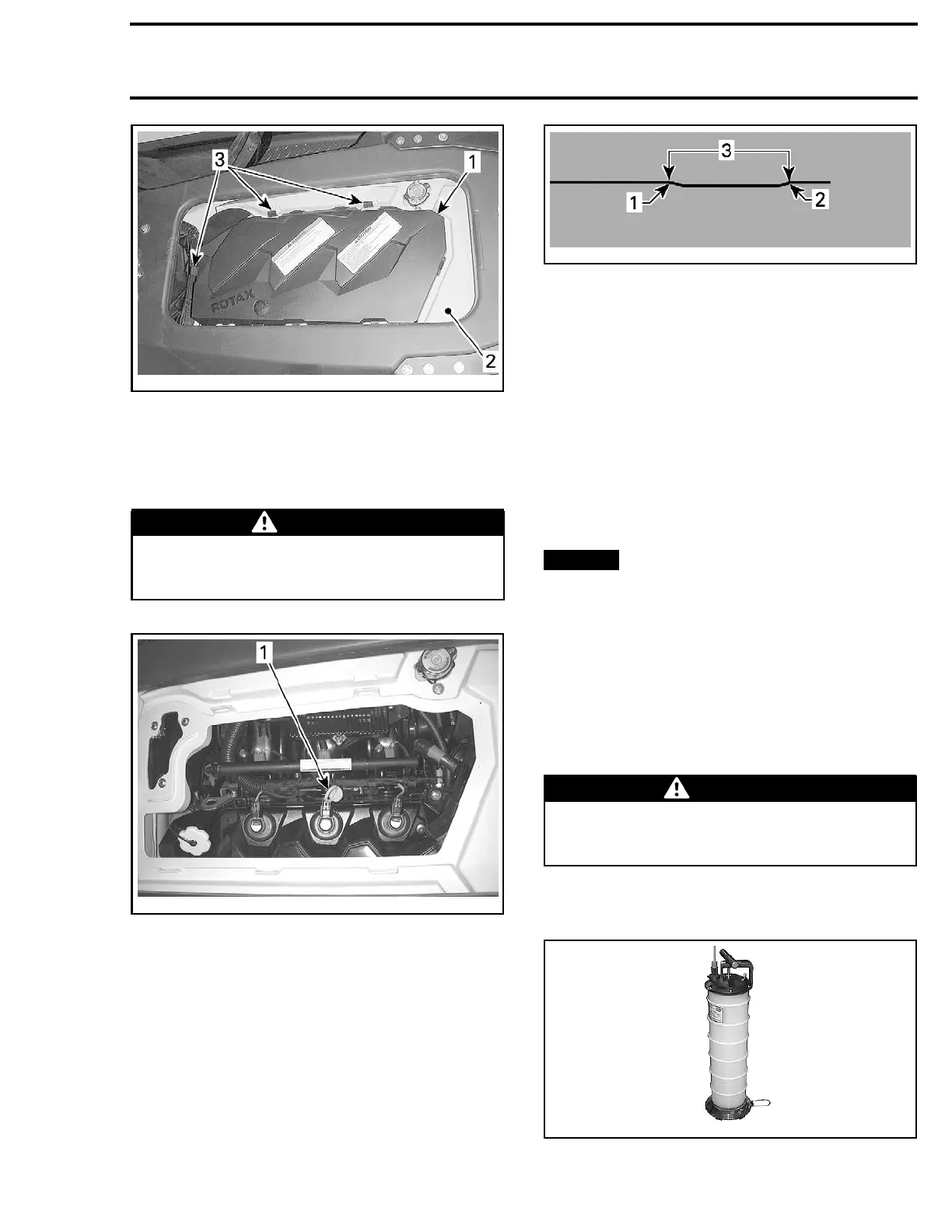

Section 02 ENGINE
Subsection 08 (LUBRICATION SYSTEM)
smo2009-002-002_a
1. Rear ventilation box
2. Deck extension
3. Retaining clips
6. Wait at least 30 seconds for the oil to settle
in the engine, then pull dipstick out and wipe
clean.
WARNING
Engine oil may be hot. Certain components
in the engine compartment may be very hot.
Direct contact may result in skin burn.
smo20
09-002-003_b
1. Oil dipstick
7. Reinstall dipstick, push in completely.
8. Remove dipstick and read oil level. It should be
between the FULL and ADD marks.
lmr2007-053-100_a
1. Full
2. Add
3. Operating range
Otherwise, add oil until its level is between marks
as required.
To add oil, unscrew oil cap. Place a funnel into the
oil filler neck opening and add the recommended
oil to the proper level. Do not overfill.
Oil Change
NOTE: Oil and oil filter must be replaced at the
same time. Oil change and oil filter replacement
should be done with a warm engine.
Bring engine to its normal operating temperature.
NOTICE
When watercraft is out of water:
– Never run engine without supplying water to
the exhaust system.
– Never run engine longer than 2 minutes.
Drive line seal has no cooling when water-
craft is out of water.
Run engine for 10 seconds at 4000 RPM and shut
it off at this RPM. This will move oil from PTO
housing to oil tank to allow maximum oil draining.
Remove oil filler cap and dipstick.
WARNING
Engine oil may be hot. Certain components
in the engine compartment may be very hot.
Direct contact may result in skin burn.
Using the SUCTION PUMP (P/N 529 035 880), siphon
oil through dipstick hole.
529035880
smr2009-023 91
