Sea-doo RXT iS 255 2009 User Manual

Section 09 WIRING DIAGRAM
Subsection 02 (CONNECTOR INFORMATION)
smr2009-045-027_a
WARNING
Before terminal installation, ensure all ter-
minals are properly crimped on wires. After
plugging connectors, ensure they are prop-
erly fastened.

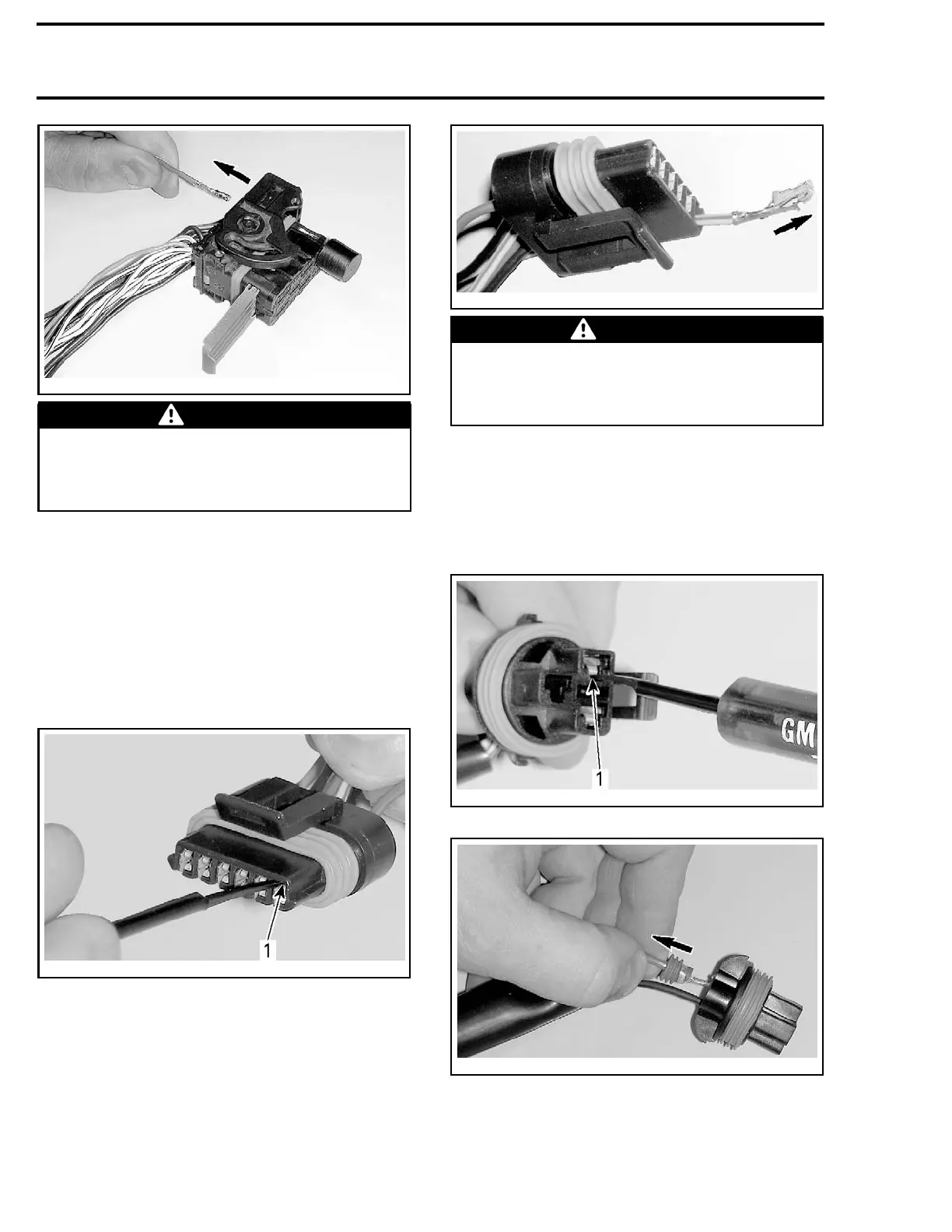

BRLS, TAS AND STARTER
SOLENOID CONNECTORS
(DELPHI)
To remove a terminal from connector, use a spe-
cial tool such as the
DELPHI TERMINAL EXTRAC-
TOR (P/N 12094429)
.
NOTE: Grinding the tool end to make it smaller is
required.
smr20
09-045-014_a
1. Unlock terminal here
smr2009-045-015_a
WARNING
Before terminal installation, ensure all ter-
minals are properly crimped on wires. After
plugging connectors, ensure they are prop-
erly fastened.
iBR AND iS POWER
CONNECTORS (DELPHI)
To remove a terminal from connector, use a spe-
cial tool such as the
GM TERMINAL EXTRACTOR
(P/N 12094430)
.
smr2009-045-016_a
1. Unlock terminal here
smr2009-045-017_a
524 smr2009-044
