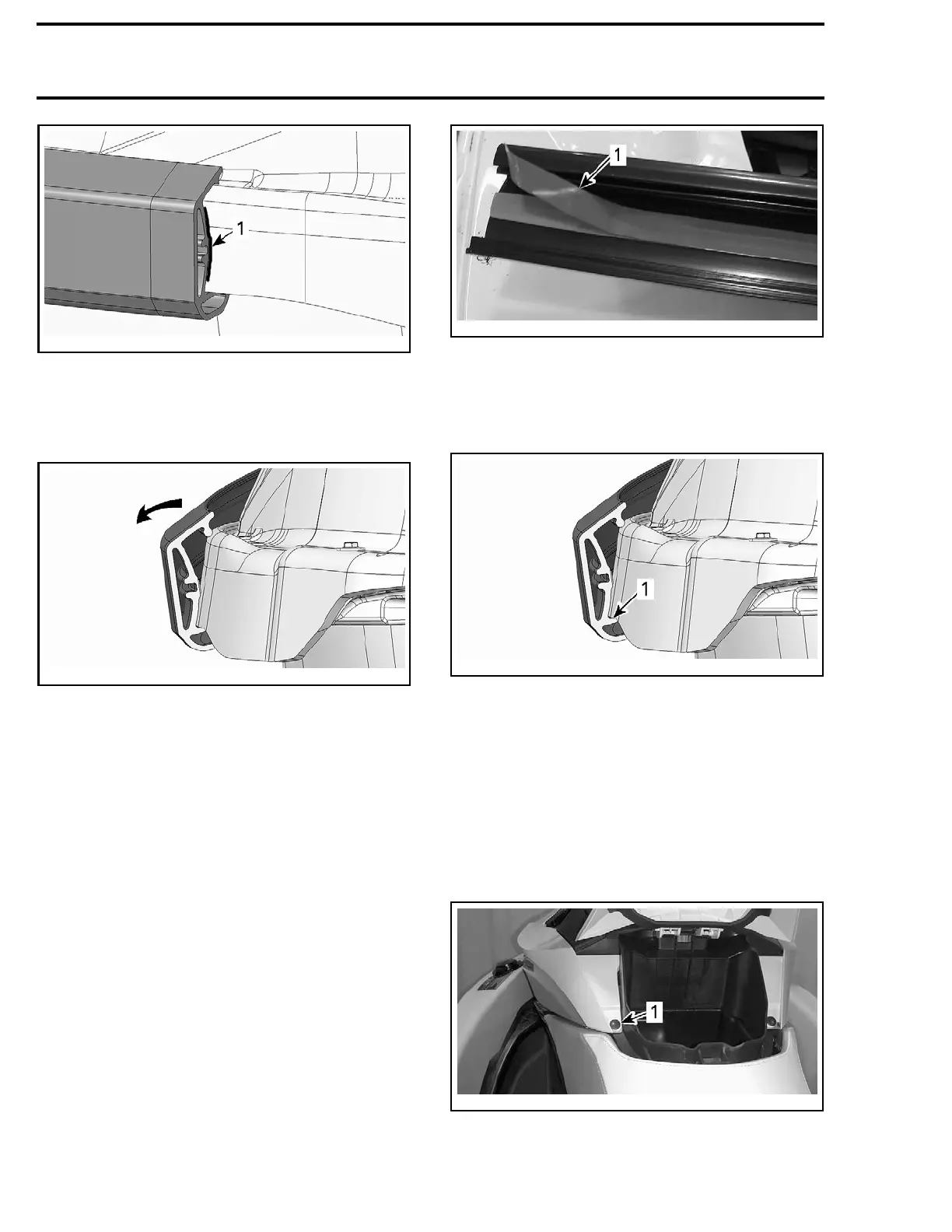

Section 07 BODY AND HULL
Subsection 02 (BODY)
smr2009-042-051_a
1. Trace a line here
3. Pull the top of bumper to unclip it from body.
NOTE: Aheatguncanbeusedtosoftenside
bumper.
smr2009-042-052_a
Bumper Installation
Front and Rear Bumper
The inst
allation is the reverse of the removal pro-
cedure.
Tighten bumper screws to 5 N•m (44 lbf•in).
Side Bumpers
1. Remove
all remaining residues of the mounting
tape.
2. Clean bumper area using isopropyl alcohol.
3. Remove the protective skin on mounting tape.
smr2009-042-053_a
1. Protective skin
4. Insert bumper over body lip.
4.1 Insert lower section first.
4.2 Insert upper section last.
smr2009-042-052_b
1. Make sure bumper is positioned correctly
NOTE: A
heat gun can be used to soften side
bumper
.
SPEED-
TIE UNIT
Front Speed-Tie Unit Removal
1. Open th
e glove box.
2. Remove the plastic push-in clip securing the LH
upper trim.
ssi2009-003-002_a
1. Remove this plastic push-in clip
3. Move upper trim rearward and remove it.
484 smr2009-042
