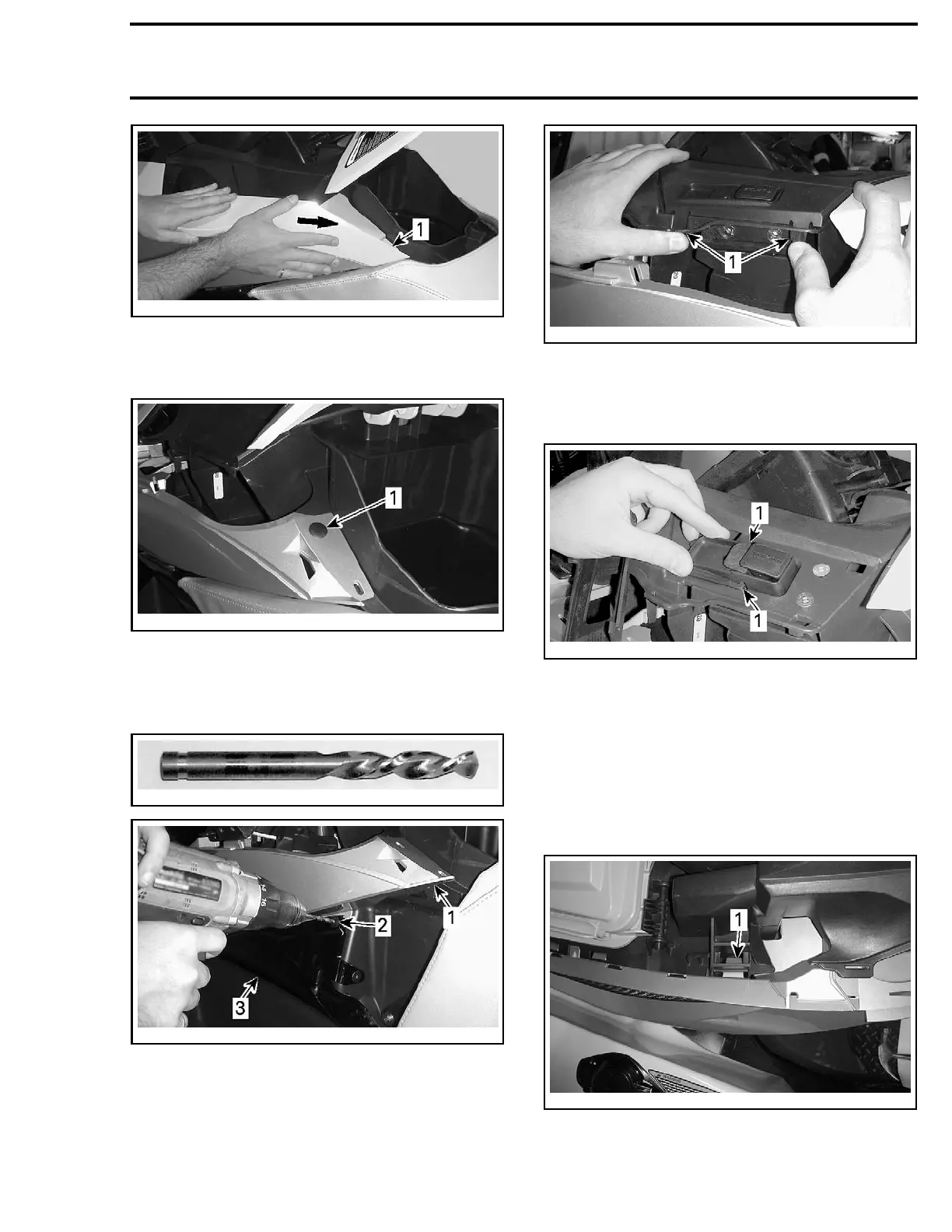

Section 07 BODY AND HULL
Subsection 02 (BODY)
ssi2009-003-003_a
1. Upper trim
4. Remove the plastic push-in clip retaining the LH
trim.
ssi2009-003-004_a
1. Remove this plastic push-in clip
5. Open sea
t and using the
SUPERTITANIUM DRILL
BIT 3/16
" (P/N 529 031 800)
, drill the rivet securing
the LH bo
dy cover and the seat trim.
529031800
ssi2009-003-008_a
1. LH body cover
2. Rem
ove this rivet
3. Seat trim
6. Remove front trim by releasing both retaining
tabs.
smr2009-042-034_a
1. Retaining tabs
7. Using a small screwdriver, release both retain-
ing hooks securing the cam trim on locking
mechanism.
ssi2009-003-015_a
1. Retaining hooks
8. Remove t
he four screws retaining the Speed-
Tie uni
t.
9. Position the reel of Speed-Tie unit to the bottom
of its cavity.
10. Remove the locking mechanism from vehicle.
11. Open s
torage cover and unlock the front tab
secur
ing the LH trim.
ssi2009-003-009_a
1. Front locking tab
12. Unlatch the rear tab.
