Section 07 BODY AND HULL
Subsection 01 (SUSPENSION (iS))
4. Secure hydraulic pump to suspension base.
4.1 Install pump retaining screw and tighten it
to 10 N•m (89 lbf•in).
4.2 Install retaining clamp and tighten it to
2N•m(18lbf•in).
5. Secure hose to reservoir with a new locking tie.
6. Route pump harness and secure it with new
locking ties.
7. Connect the hydraulic pump connector to iS
module.
8. Install a weight of 90 kg (200 lb) on moving
deck and using suspension controls on steer-
ing, cycle the suspension fully up and fully
down 3 times. This action will remove air
bubbles trapped into hose and pump during
installation.
9. Check for leaks.
10. Install all other removed parts.
ACTUATOR
Actuator Inspection
Check actuator for leaks at hose opening and
around inner piston.
Replace actuator if any leak is detected.
Actuator Removal
1. Refer to
HYDRAULIC PUMP REMOVAL (AS A
UNIT WITH ACTUATOR)
and remove the pump
from the vehicle.
2. Remove and discard the screw securing actua-
tor link to alignment support.

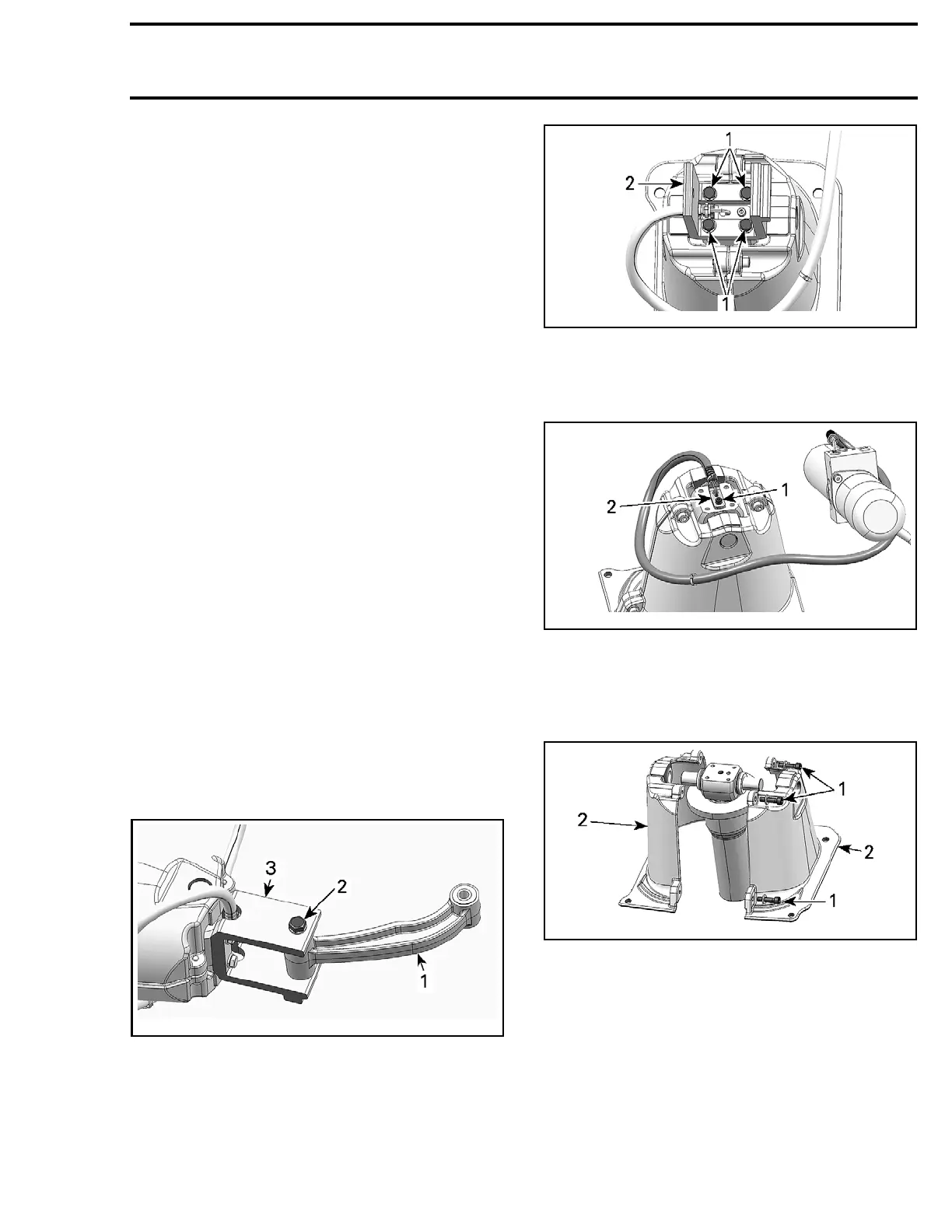

smr20
09-041-047_a
1. Actuator link
2. Retaining screw
3. Alig
nment support
3. Remove the alignment support from actuator
holder. Discard screws
smr2009-041-048_a
1. Retaining screws
2. Alignment support
4. Turn actuator up side down and remove hy-
draulic hose.
smr2009-041-049_a
1. Retaini
ng socket screw
2. Hydraulic hose lock
5. Remove and discard the three socket screws
securing actuator holder halves and split the ac-
tuator holder.
smr2009-041-050_a
1. Socket screws
2. Actuator holder halves
Actuator Installation
The installation is the reverse of the removal pro-
cedure. However, pay attention to the following.
Install hydraulic hose in accordance with the fol-
lowing illustration.
smr2009-041 457
