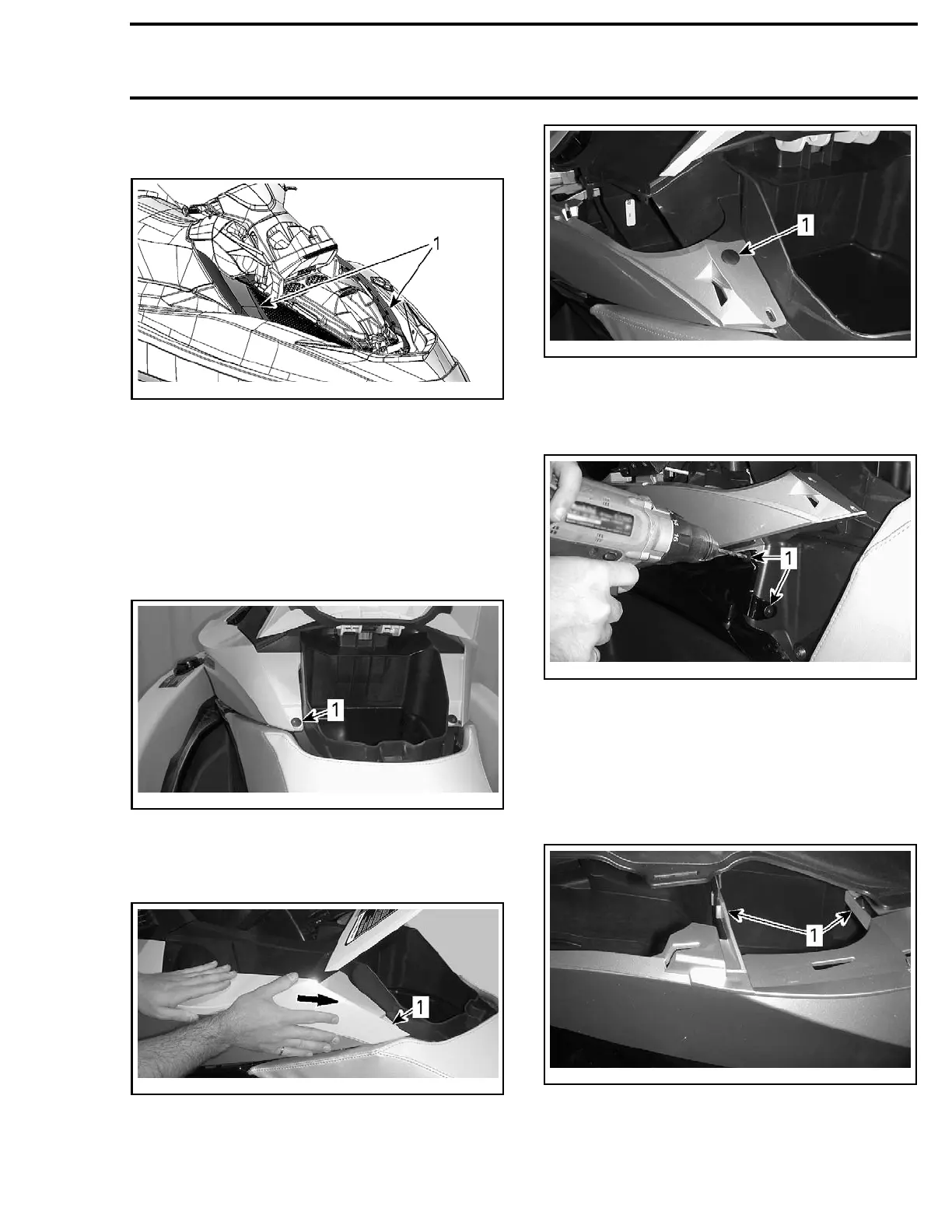

Section 07 BODY AND HULL
Subsection 02 (BODY)
BODY COVER
smr2009-042-057_a
1. Body covers
Body Cover Removal
1. Remove the
STORAGE COMPARTMENT
COVER
, see procedure in this subsection.
2. Remove the
FRONT GRILLE
, see procedure in
this subsection.
3. Remove the plastic push-in clip securing the up-
per trim.
ssi2009-003-002_a
LH SIDE SHOWN
1. Remove this plastic push-in clip
4. Move both upper trims rearward and remove
them.
ssi2009-003-003_a
LH SIDE SHOWN
1. LH upper trim
5. Remove the plastic push-in clips retaining the
LH and RH trims.
ssi2009-003-004_a
LH SIDE SHOWN
1. Remove this plastic push-in clip
6. Open seat and using a 3/16" drill bit, drill the
rivets securing the seat trims.
ssi2009-003-008_b
LH SIDE S
HOWN
1. Remove these rivets
7. Remove seat trim and drill the front rivet secur-
ing the body cover.
8. At the front of front body module, remove
screws or rivets retaining both body cover.
9. Unlock
rear and center retaining tabs.
smr2009-042-058_a
RH SIDE SHOWN
1. Rear retaining tabs
smr2009-042 479
