Section 09 WIRING DIAGRAM
Subsection 01 (WIRING DIAGRAM INFORMATION)

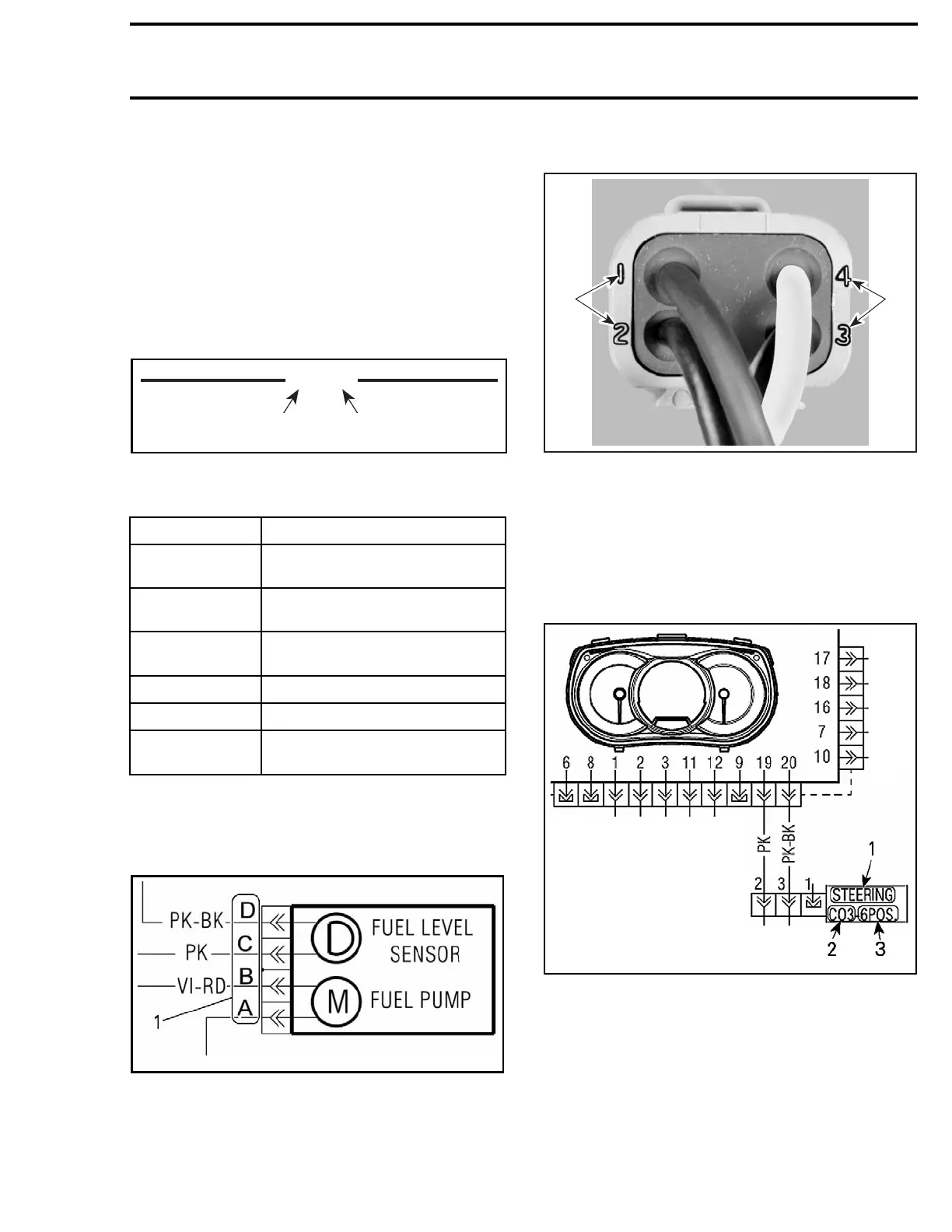

WIRING DIAGRAM INFORMATION
GENERAL
WIRING DIAGRAM LOCATION
The wiring diagram is in the back cover pocket.
WIRING DIAGRAM CODES
Wire Color Codes
YL - BK
1 2
smr05-026-002_a
1. Wire main co
lor
2. Tracer (thin colored line)
General Wir
e Color Use
COLOR USE
RED
Battery power (12 Vdc directly
connectedtobattery)
RED + tracer
Fused 12 Vdc power or switched
power from relay
YELLOW
Alternating current (AC)
from magneto
BLACK Ground
BLACK + tracer Switched ground (by ECM)
WHITE/RED
WHITE/BLACK
CAN HI wires
CAN LO wires
Terminal Identification on Connector
On the wiring diagram, a letter or a digit is used to
identify the terminal position in a connector.
smr2009-045-005_a
1. Terminal position
On a con
nector, a letter or a digit is usually molded
on the c
onnector to identify the terminal position.
F04H6LA
1 1
TYPICAL
1. Wire identification numbers
Terminal Identification on Wiring
Diagram
In-line connectors of wiring harness are given on
the wiring diagram with their approximate location
and the following information.
smr2009-045-006_a
1. Connector location
2. Conn
ector identification (reference number)
3. Number of pins
CAN Wire Circuit References
On the wiring diagram, CAN linked components
use the following coding.
smr2009-044 517
