Section 06 STEERING AND PROPULSION
Subsection 01 (STEERING AND O.T.A.S.)

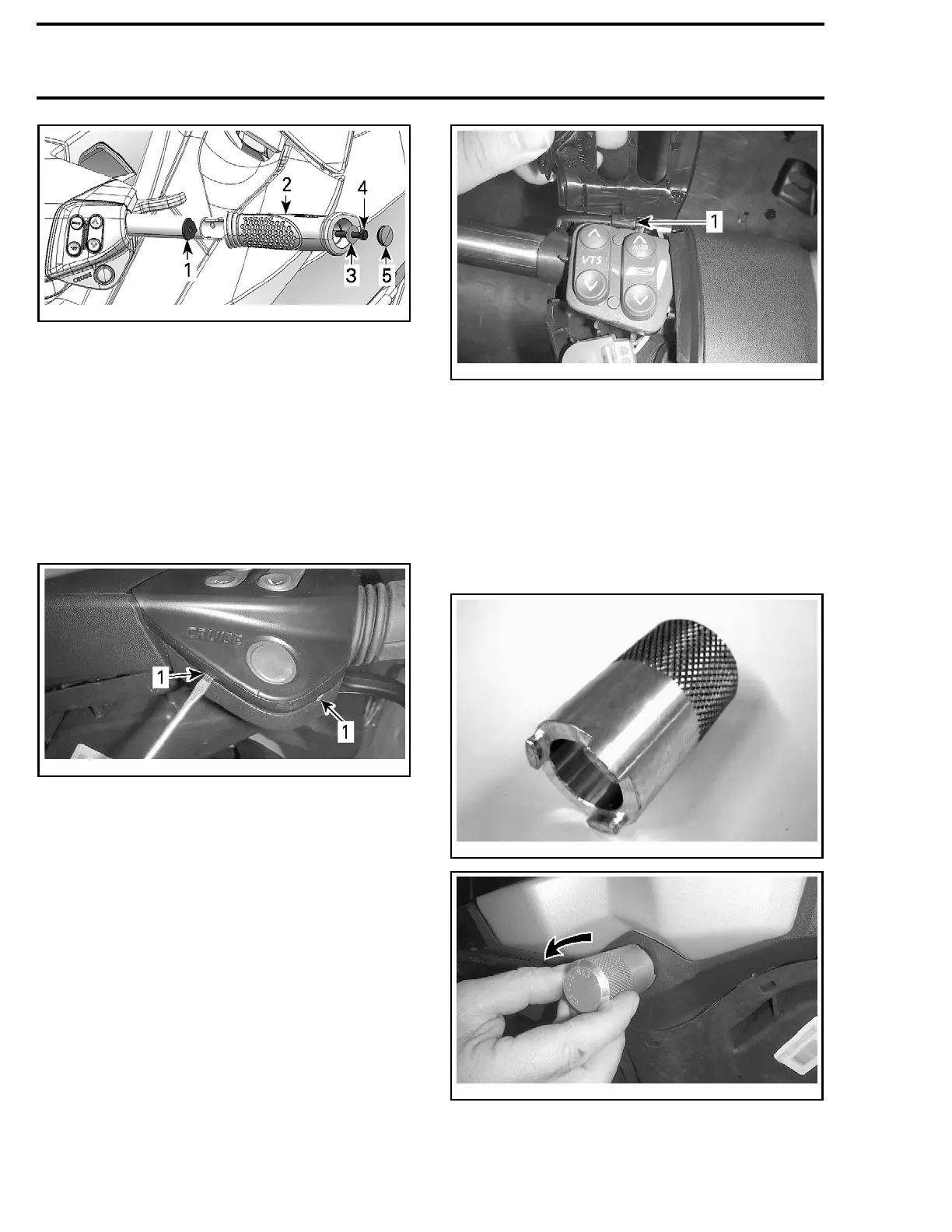

smr2009-037-009_a
1. Grip insert
2. Grip
3. Flat washer
4. Screw
5. Cap
HANDLEBAR SWITCH COVER (LH
OR RH)
Handlebar Switch Cover Removal (LH
or RH)
1. Insert the end of a small screwdriver in one of
cover slots.
smr2009-037-010_a
RH SIDE SHOWN
1. Cover slots
2. Turn screwdriver to open cover.
3. Remove the switch cover.
Handlebar Switch Cover Installation
(LH or RH)
Install the round rubber button in the cover.
Insert the front tab and tilt the cover over the
switches.
smr2009-037-012_a
RH SIDE SHOWN
1. Front tab
Press on the cover to lock it.
STEERING COVER
Steering Cover Removal
1. Using the D.E.S.S. POST REMOVER (P/N 529 035
943)
, remove the nut retaining the D.E.S.S.
post.
529035943
smr2009-037-015_a
2. Remove both handlebar switch covers. See
procedure in this subsection.
364 smr2009-037
