Section 02 ENGINE
Subsection 07 (PTO HOUSING AND MAGNETO)
Reinstall LH engine support. Apply LOCTITE 243
(BLUE) (P/N 293 800 060)
on screw threads then
torque to 24 N•m (18 lbf•ft).
Remove block under engine.
Install both rear engine support screws.
Carry out an engine alignment, refer to the
ENGINE REMOVAL AND INSTALLATION
subsec-
tion.
NOTICE
An engine alignment procedure
must be carried out to ensure proper engine
alignment or severe component damage may
occur.
Install all remaining parts, reconnect hoses and
electrical connectors. Refer to applicable subsec-
tions for procedures and specific details (torques,
service products or special instructions).
Refill engine with oil and cooling system with
coolant. Refer to
LUBRICATION SYSTEM
and
COOLING SYSTEM
subsections.
PTO SEAL
PTOSealInspection
Inspect the PTO seal on the PTO housing. If brit-
tle, hard or damaged, or if you see a sign of oil
leakage, replace it.
Inspect ball bearing within PTO seal for excessive
play and smooth operation.
Replace PTO seal if oil seal or ball bearing is dam-
aged.

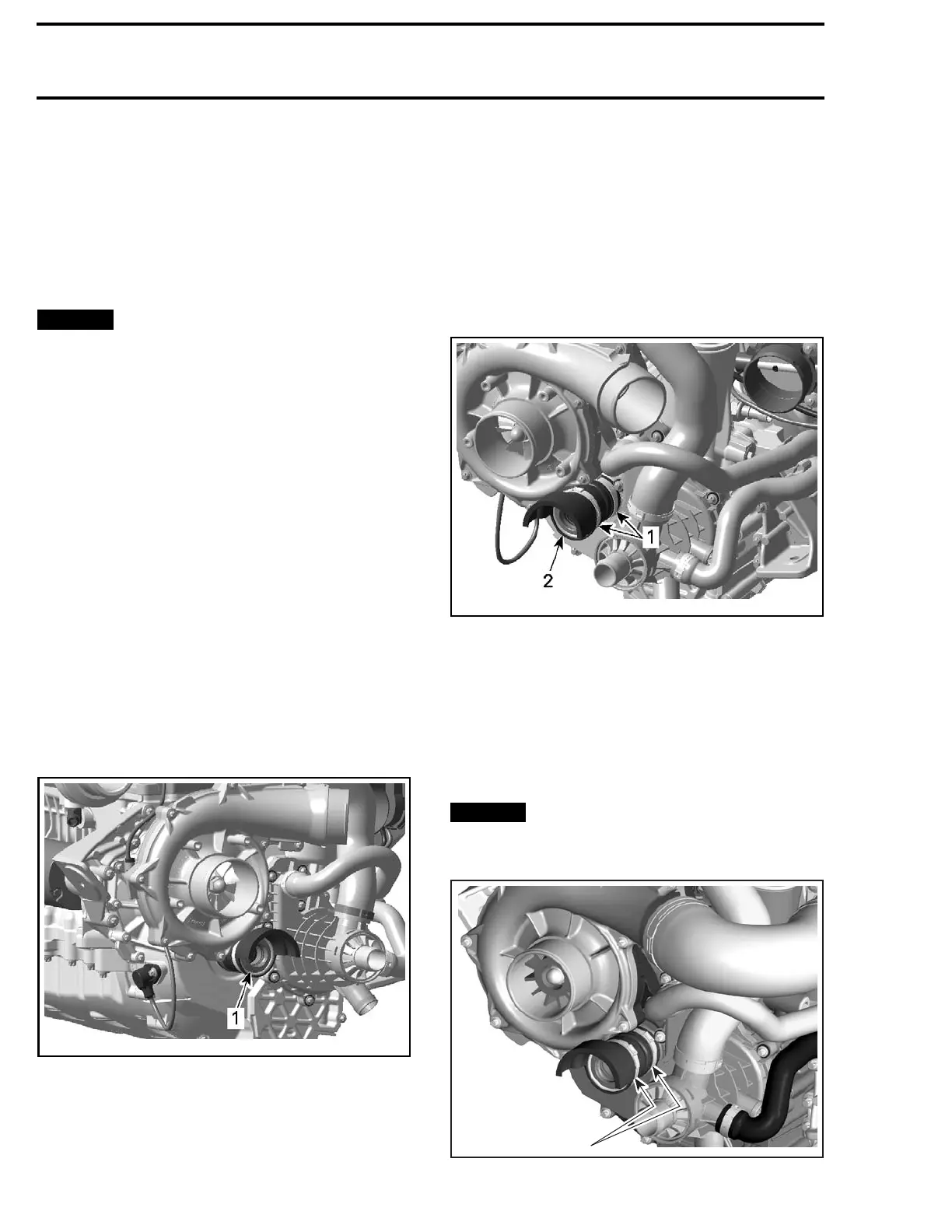

smr2009-022-006_a
1. PTO sea
l
PTO Seal Removal
Place rags under PTO housing to prevent spillage.
If spillage occurs, clean immediately with
PULLEY
FLANGE CLEANER (P/N 413 711 809)
to prevent oil
stains.
NOTE: Note position of seal and orientation of
Oetiker clamp for installation.
Remove the Oetiker clamp retaining the seal to
the PTO housing.
smr2009-
022-007_a
TYPICAL
1. Oetiker clamps
2. PTO seal
Pull seal from PTO housing.
PTO Seal Installation
Insert a NEW Oetiker clamp over the seal.
Push seal
onto PTO housing. Be sure to align seal
and clamp
as noted at removal.
NOTICE
When installing PTO seal on super-
charged engines, make sure to position the
Oetiker clamps as illustrated.
1
R1503motr367A
1. Oetiker clamps
76
smr2009-022
