Section 07 BODY AND HULL
Subsection 01 (SUSPENSION (iS))

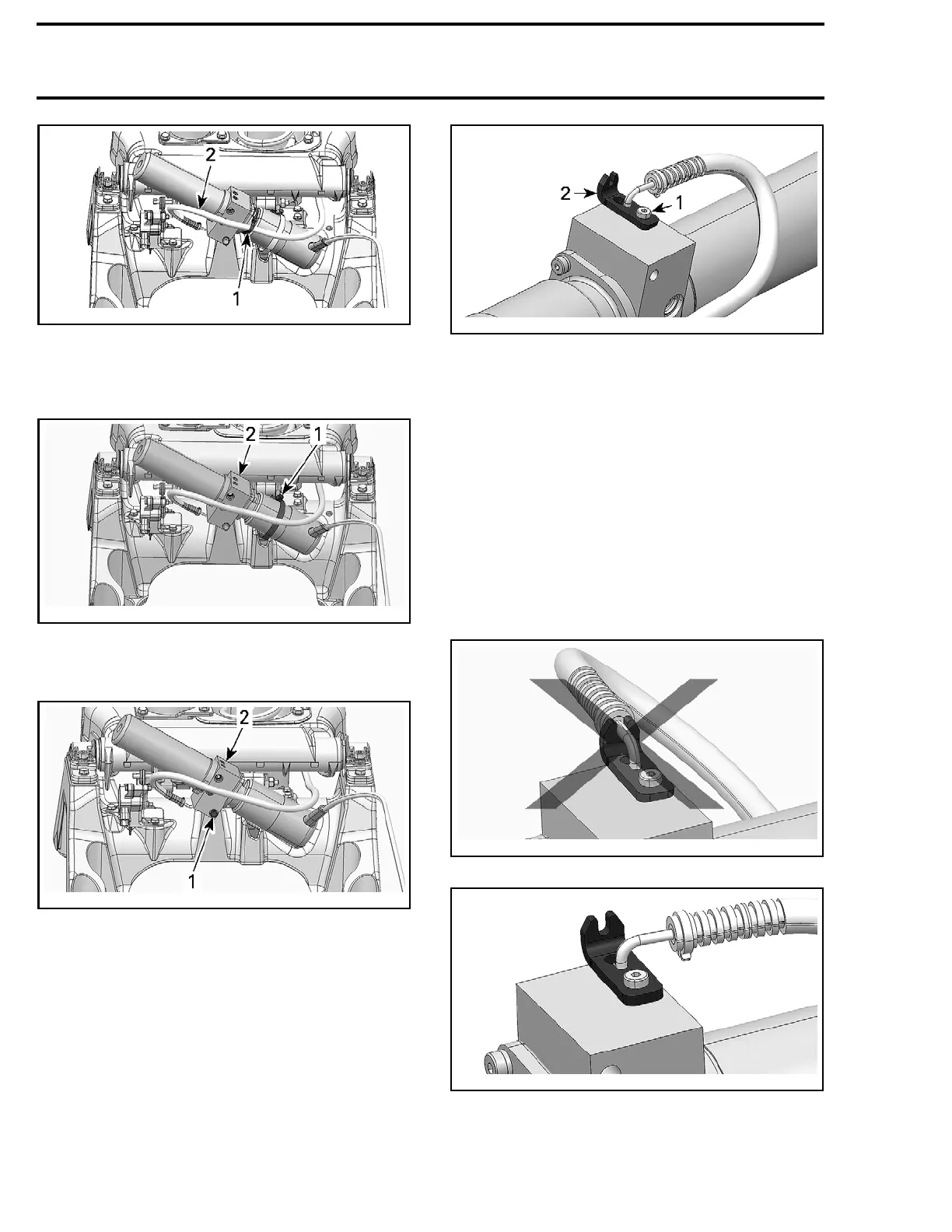

smr2009-041-016_a
1. Cut this locking tie
2. Hydraulic hose
6. Unscrew the retaining clamp completely and re-
move it.
smr2009-
041-017_a
1. Retaining clamp
2. Hydraulic pump
7. Remove h
ydraulic pump retaining bolt.
smr2009-041-018_a
1. Retaining bolt
2. Hydraulic pump
8. At the bottom of pump housing, remove socket
screw securing hydraulic hose lock.
smr2009-041-019_a
1. Socket screw
2. Hydraulic hose lock
9. Remove hose from pump and plug hose to
avoid oil spillage.
10. Place your finger on pump opening and re-
move pump from vehicle.
NOTE: Wipe any oil spillage.
Hydraulic Pump Installation
(Without Actuator)
1. Install hydraulic hose on pump and secure hose
using the the hydraulic hose lock.
NOTE: The hose must turn freely. Do not inserted
hose into lock hook.
smr200
9-041-020_a
WRONG POSITION
smr2009-041-021
RECOMMENDED POSITION
2. Apply LOCTITE 243 (BLUE) (P/N 293 800 060) on
threads of lock screw.
3. Tighten screw to 8 N•m (71 lbf•in).
456 smr2009-041
