Section 07 BODY AND HULL
Subsection 01 (SUSPENSION (iS))

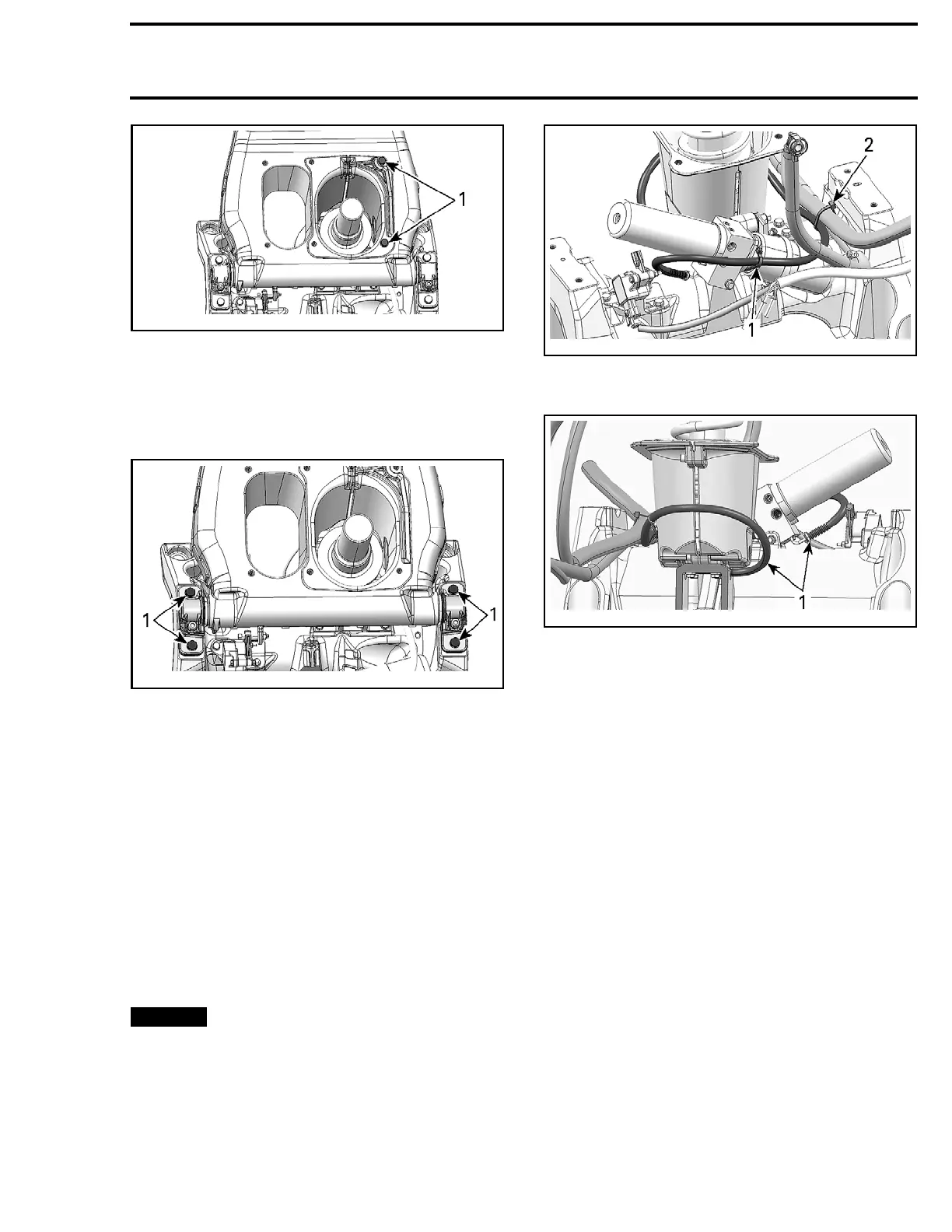

smr2009-041-028_a
1. Actuator holder screws
7. Remove the suspension position sensor to
avoid damaging it.
8. Remove screws securing both rear ends of
front suspension arm to suspension base.
smr2009-041-027_a
1. Retain
ing screws
9. Lift the rear of the front suspension arm to
make room for hydraulic pump.
10. Remov
e hydraulic pump with actuator by
lifti
ng them through the suspension bellows
openi
ng.
Hydraulic Pump Installation
(as a U
nit with Actuator)
The installation is essentially the reverse of the re-
moval procedure. However, pay attention to the
following.
Make sure to secure the actuator link to suspen-
sion base. Tighten actuator link bolt to 25 N•m
(18 lbf•ft).
NOTI
CE
Failure to do so might result in
spring failure.
Hydr
aulic hose routing is very critical to avoid
prob
lems with hydraulic unit. Use the following
illu
stration to route and attach the hydraulic hose
prop
erly.
smr2009-041-045_a
VIEW FROM THE REAR OF VEHICLE
1. Secure hydraulic hose to hydraulic pump
2. Secure hydraulic hose, fuel hose and vehicle wiring harness
smr2009-041-046_a
VIEW FROM THE FRONT OF VEHICLE
1. Position both ends of hydraulic hose on same side
Install the
FRONT SUSPENSION ARM
. See pro-
cedure in this subsection.
Hydraulic Pump Removal
(Without Actuator)
1. Remove the deck extension. Refer to
BODY
subsection.
2. Remove the air intake tube. Refer to
AIR IN-
TAKE SYSTEM
subsection.
3. Unplug the hydraulic pump connector from the
iS module.
4. Cut any locking ties securing the pump harness
to vehicle harness.
5. Cut locking tie securing the hydraulic hose to
pump.
smr2009-041 455
