Section 05 ELECTRICAL SYSTEM
Subsection 04 (CHARGING SYSTEM)

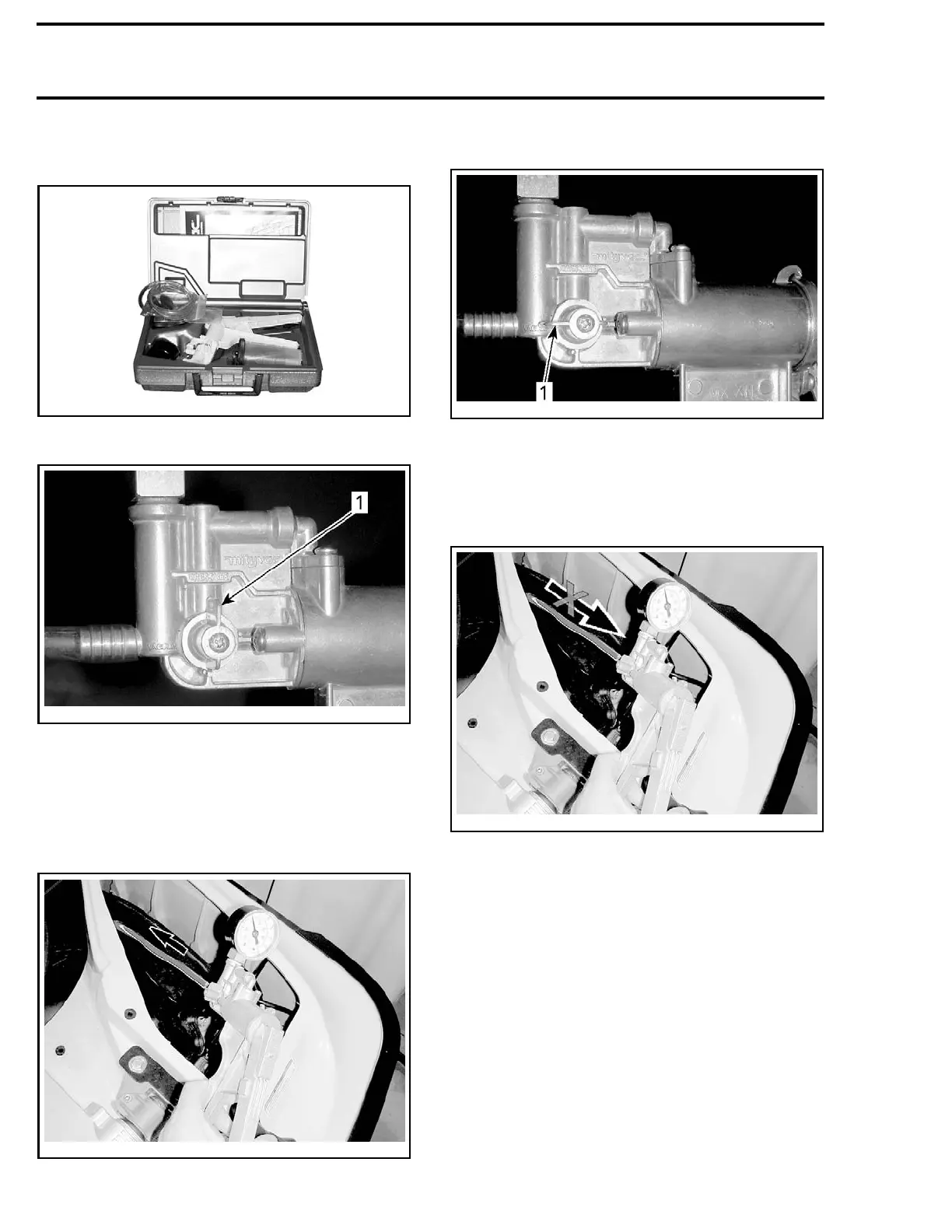

Use the vacuum/pressure pump in the ENGINE
LEAK TEST KIT (P/N 295 500 352)
.
295500352
Set vacuum/pressure pump to PRESSURE.
smr2009-031-012_a
1. Pressure selected
Connect vacuum/pressure pump to the vent hose
end.
Squeeze the vacuum/pressure pump handle sev-
eral times to push air out through the check valve.
Check valve must let air flow out.
smr2009-033-010_a
AIR M
UST FLOW OUT
Set vacuum/pressure pump to VACUUM.
smr2009-031-013_a
1. Vacuum selected
Squeeze th
e vacuum/pressure pump handle sev-
eral times
to draw air in through the check valve.
Check valve must hold air with 10 in Hg (-34 kPa)
of vacuum without leaking.
smr2009-033-010_b
MUST HOLD AIR IN THIS POSITION
If any test failed, check the vent hose and if good,
replace check valve.
At installation, ensure to position check valve with
black side connected to vent line and ORANGE
side inserted in the grommet protruding through
the hull as shown.
302 smr2009-033
