Section 06 STEERING AND PROPULSION
Subsection 02 (iBR AND VTS)

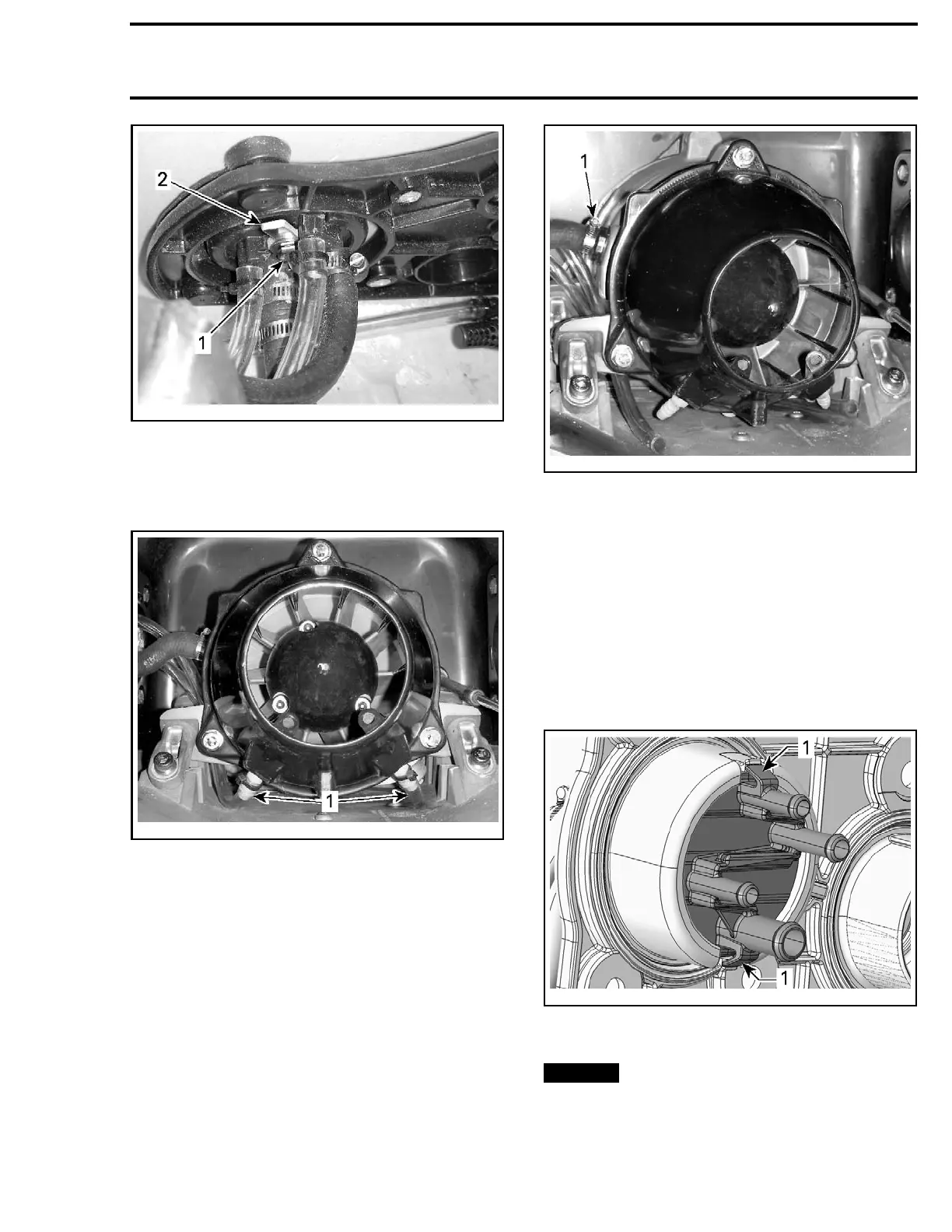

smr2009-043-005_a
TYPICAL
1. Hexagonal screw
2. Metal fitting plate retainer
4. Cut the locking ties and disconnect the 2 bailer
hoses from the jet pump venturi.
smr2009-039-002_a
1. Bailer hoses
5. Loose
n the gear clamp and disconnect the wa-
ter p
ressure hose from the jet pump.
smr2009-039-003_a
1. Water pressure hose
6. Pull the fitting plate out of the outer support
plate from the jet pump side.
Models With Plastic Retaining Tabs
on Fitting Plate
NOTE: On models with plastic retaining tabs on
the fitting plate, the procedure is the same as
models with a metal retaining tab except for the
following.
1. Compress the fitting plate retaining tab and pull
the fitting plate from the outer support plate.
smr2009-043-012_a
1. Fitt
ing plate tabs
2. Discard the fitting plate.
NOT
ICE
When the fitting plate retaining tabs
are compressed for removal, the tabs become
deformed and weakened. Do not reinstall a
used fitting plate. Always install a new fitting
plate. Failure to comply with this notice can
result in water seeping into the bilge.
smr2009-037 401
