Section 06 STEERING AND PROPULSION
Subsection 02 (iBR AND VTS)

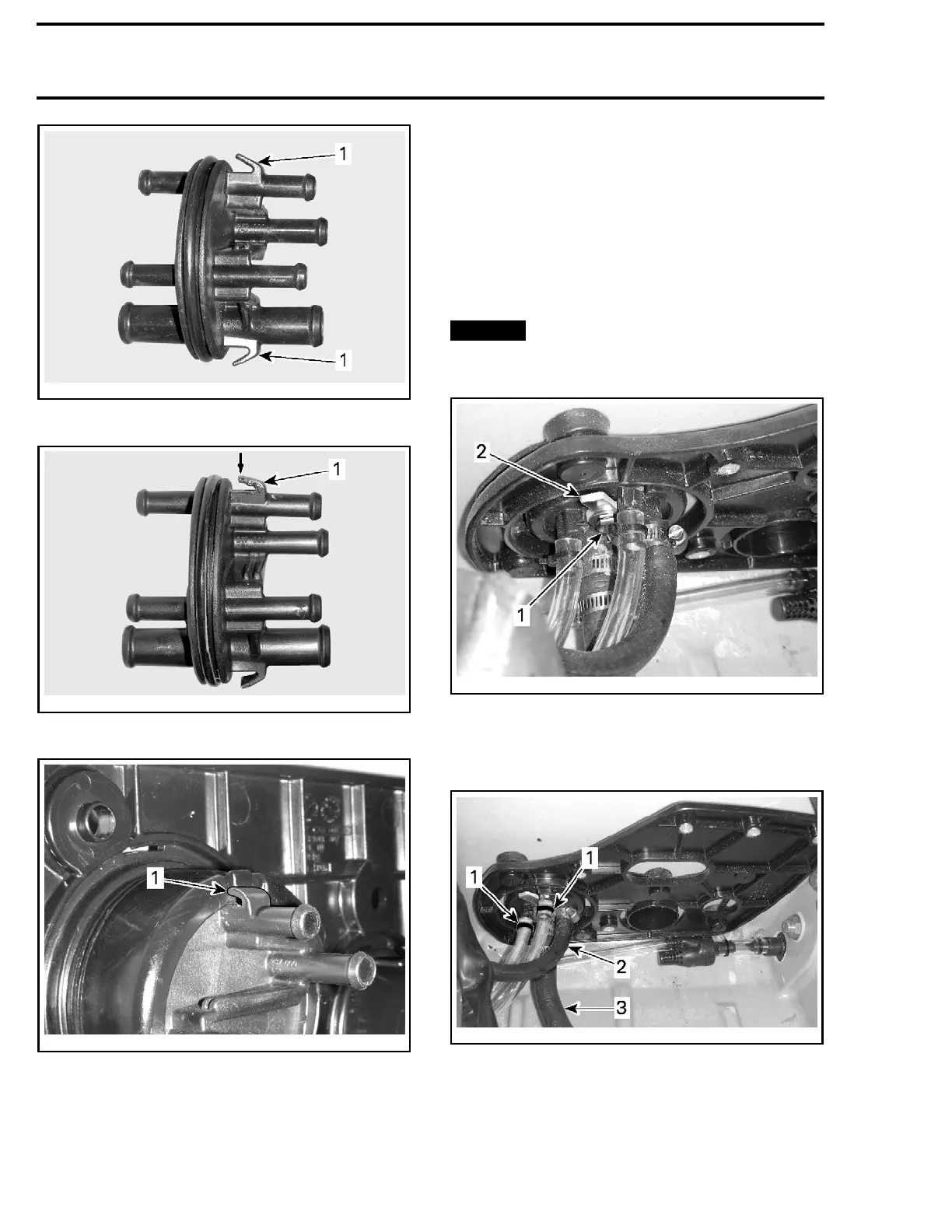

smr2009-043-007_a
NEW FITTING PLATE
1. Good retaining tabs
smr2009-043-009_a
OLD FITTING PLATE (DO NOT REUSE)
1. BAD retaining tabs (compressed and deformed)
smr2009-043-010_a
OLD FITTING PLATE (BAD RETAINING TAB CONTACT)
1. Retaining tab
Fitting Plate Installation
Models With a Metal Retainer on Fitting Plate
1. Ensure the "O" ring seal is properly installed on
the fitting plate and in good condition.
2. Insert the fitting plate through the outer iBR
support plate.
3. Install the metal retainer and tighten the hexag-
onal screw until it is snug.
NOTICE
Do not attempt to torque the hexag-
onal screw or screw threads in the plastic fit-
ting plate will be damaged.
smr2009-043-005_a
1. Hexagonal screw
2. Metal retainer
4. Install the four hoses on the inner fitting plate.
Torque gear clamps to 1.7 N•m (15 lbf•in).
smr2009-043-006_a
TYPICAL
1. Bailer hoses (x2)
2. Intercooler bleed hose
3. Pump water pressure hose
5. Install the three hoses on the jet pump.
6. Torque the gear clamp securing pressure hose
to the jet pump to 1.7 N•m (15 lbf•in).
