Section 06 STEERING AND PROPULSION
Subsection 02 (iBR AND VTS)

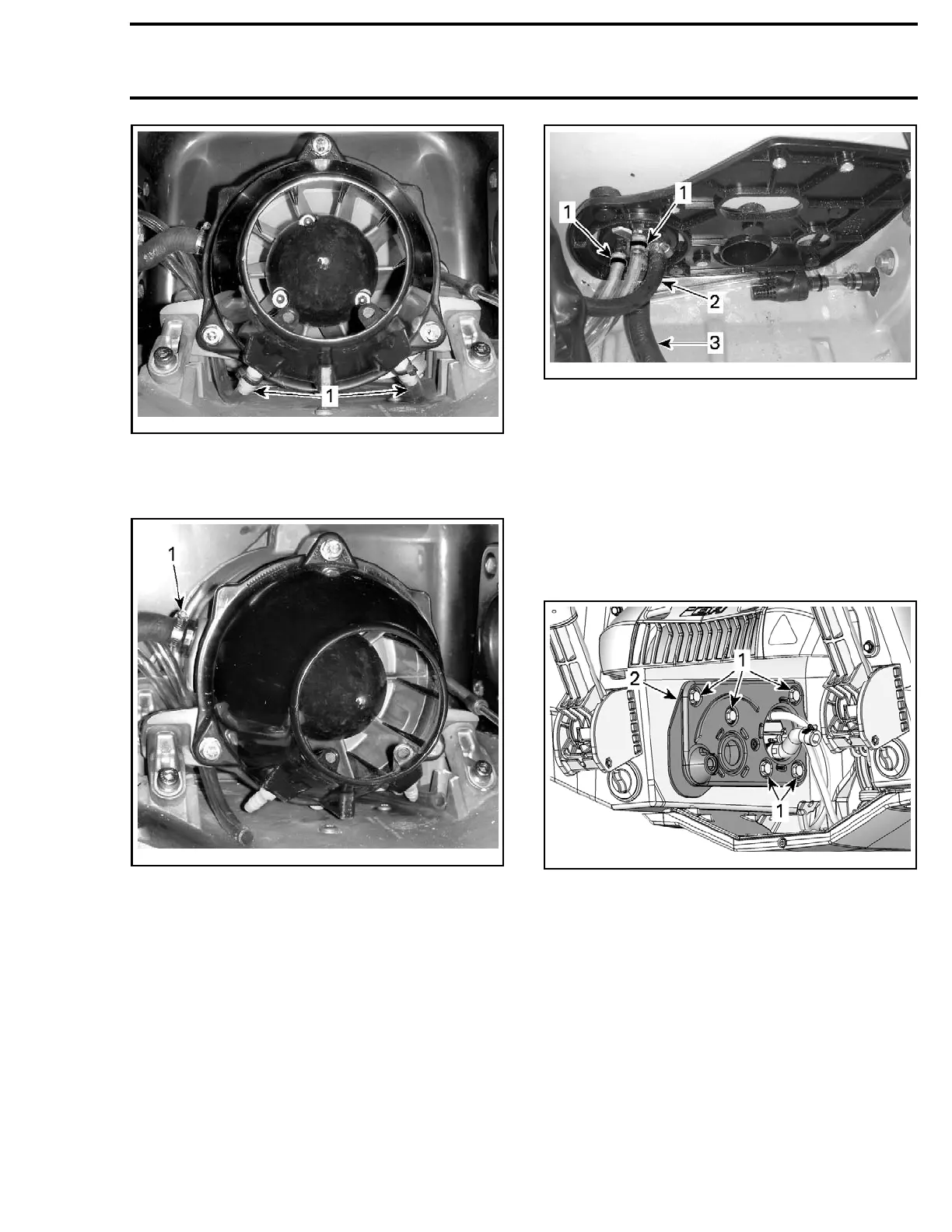

smr2009-039-002_a
1. Bailer hoses
3. Loosen the gear clamp and disconnect the wa-
ter pressure hose from the jet pump.
smr2009-039-003_a
1. Wate
r pressure hose
4. Remove the LH storage bin, refer to the
BODY
subsection.
5. Disc
onnect the four hoses connected to the fit-
tin
g plate mounted in the iBR support plate.
smr2009-043-006_a
TYPICAL
1. Bailer hoses (x2)
2. Intercooler bleed hose
3. Pump water pressure hose
6. Remove the
FITTING PLATE
from the support
plate as described in this subsection (this step
is only applicable to models with a metal re-
tainer on the support plate).
7. Remove and discard the 5 hexagonal screws
securing the outer support plate to the inner
support plate.
smr20
09-043-011_a
TYPICAL - MODEL WITH PLASTIC RETAINING TABS
ILLUSTRATED
1. Hexag
onal screws to remove
2. Outer support plate
8. From the iBR actuator side, carefully com-
press the outer support plate tab retaining the
two support plates together using a common
screwdriver.
smr2009-037 399
