Section 02 ENGINE
Subsection 11 (CYLINDER BLOCK)

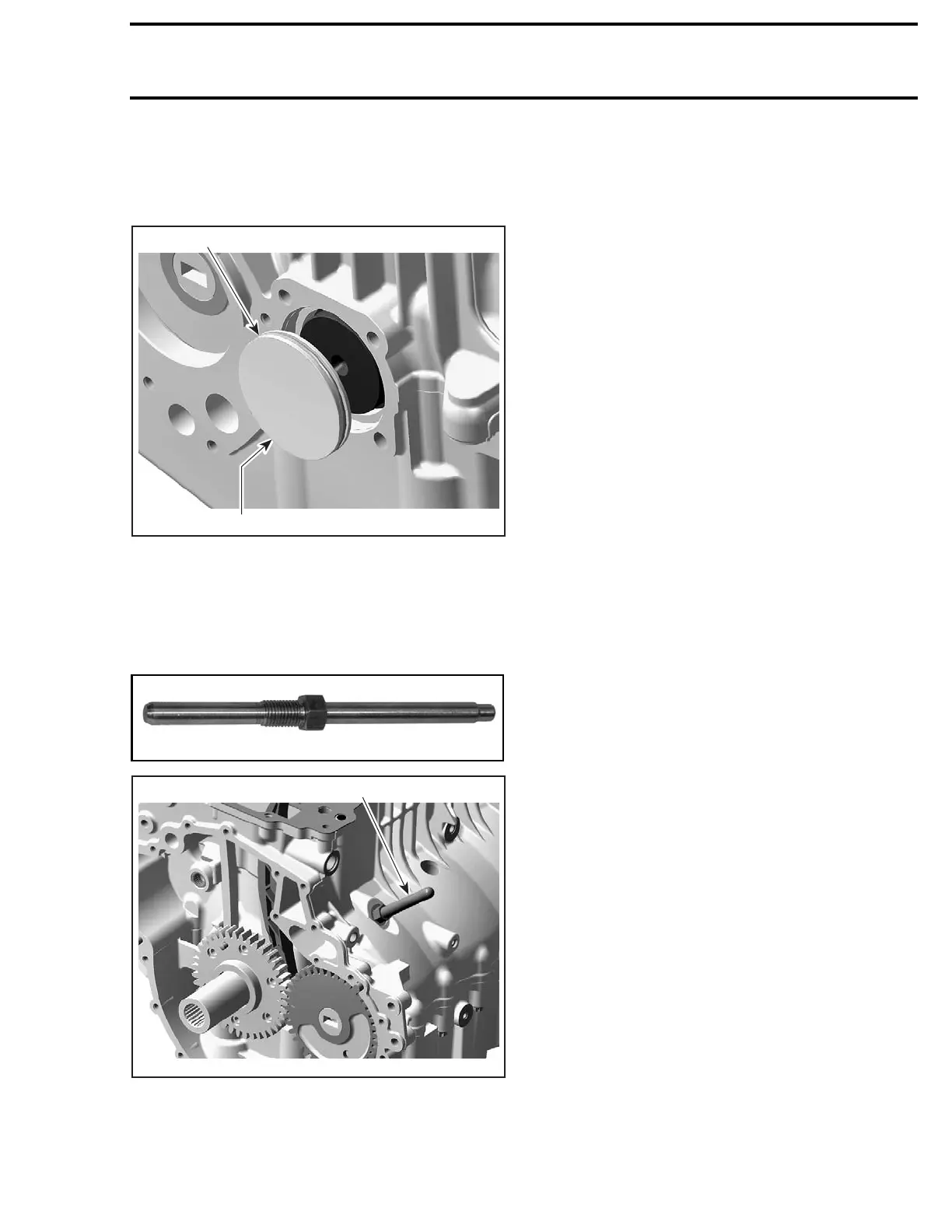

Install the crankshaft cover before mounting the
engine bracket. Apply engine oil on O-ring and
press cover in. Crankshaft cover has to be flush
with cylinder block surface.
1
R1503motr19A
2
1. O-ring
2. Crankshaft cover
Install the CRANKSHAFT LOCKING TOOL (P/N 529
035 821)
right away to position crankshaft at TDC
before installing the camshaft and the rocker arms
(refer to
CYLINDER HEAD
subsection).
529035821
1
R1503motr18A
1. Crankshaft locking tool
Install cylinder head, PTO housing and the other
parts in accordance with the proper assembly pro-
cedures.
smr2009-026 171
