Section 05 ELECTRICAL SYSTEM
Subsection 05 (STARTING SYSTEM)
smr2009-034-002_d

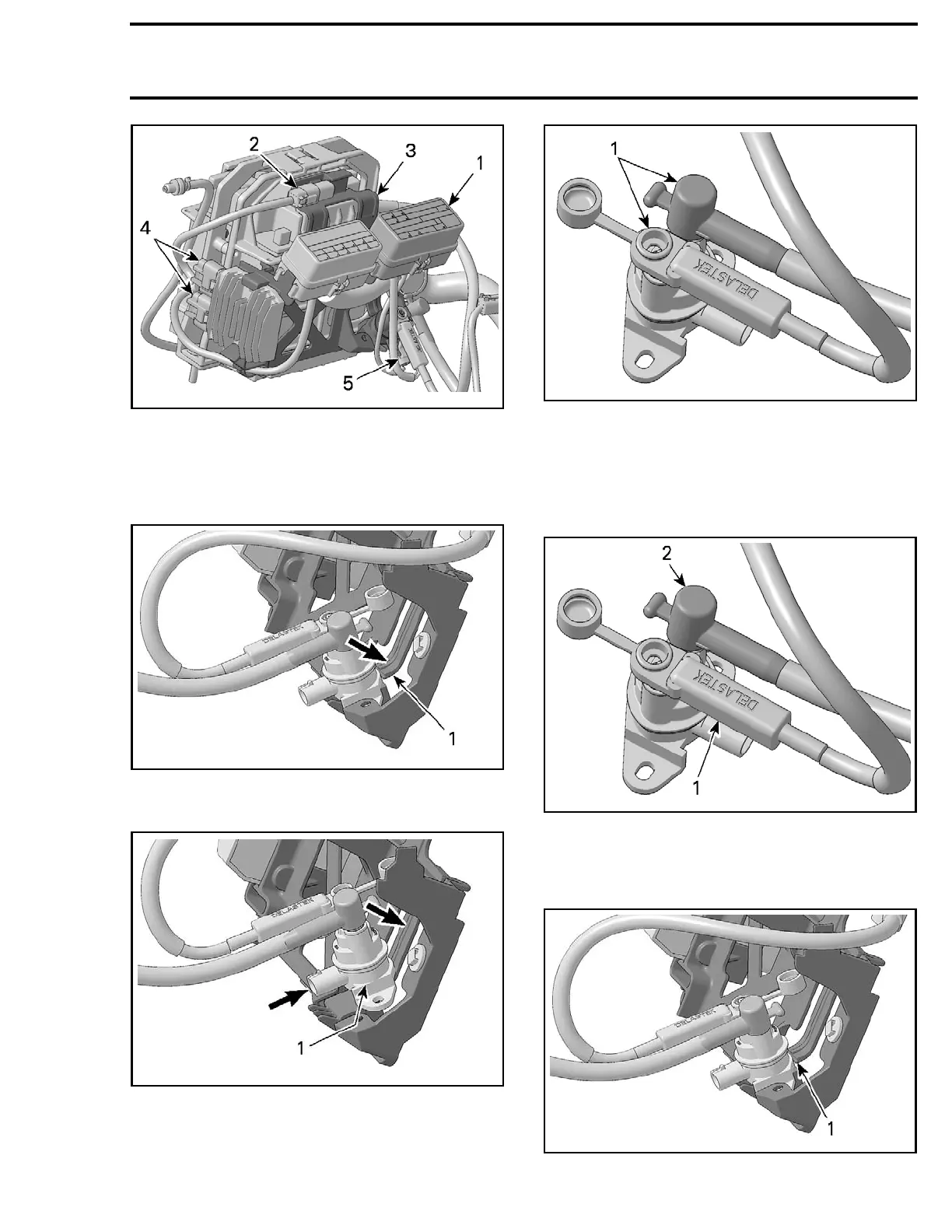

1. Fuse box 2
2. Diagnostic connector
3. Electrical component support
4. Voltage regulator/rectifier connectors
5. Starter solenoid connector
7. Push locking tab and HOLD it.
smr2009-034-003_a
1. Locking tab
8. Slide
solenoid out.
smr2009-034-004_a
1. Solenoid
9. Disconnect solenoid cables.
smr2009-034-005_a
1. Cables
Solenoid Installation
Revert removal operations and pay attention to
the following.
Connect cables to solenoid as shown.
smr2009-034-005_b
1. Cable fr
om battery
2. Cable to starter motor
Ensure to push solenoid until a “click” is heard
(locking tab engagement).
smr2009-034-003_b
1. Solenoid locked here
smr2009-034 321
