Section 06 STEERING AND PROPULSION
Subsection 02 (iBR AND VTS)

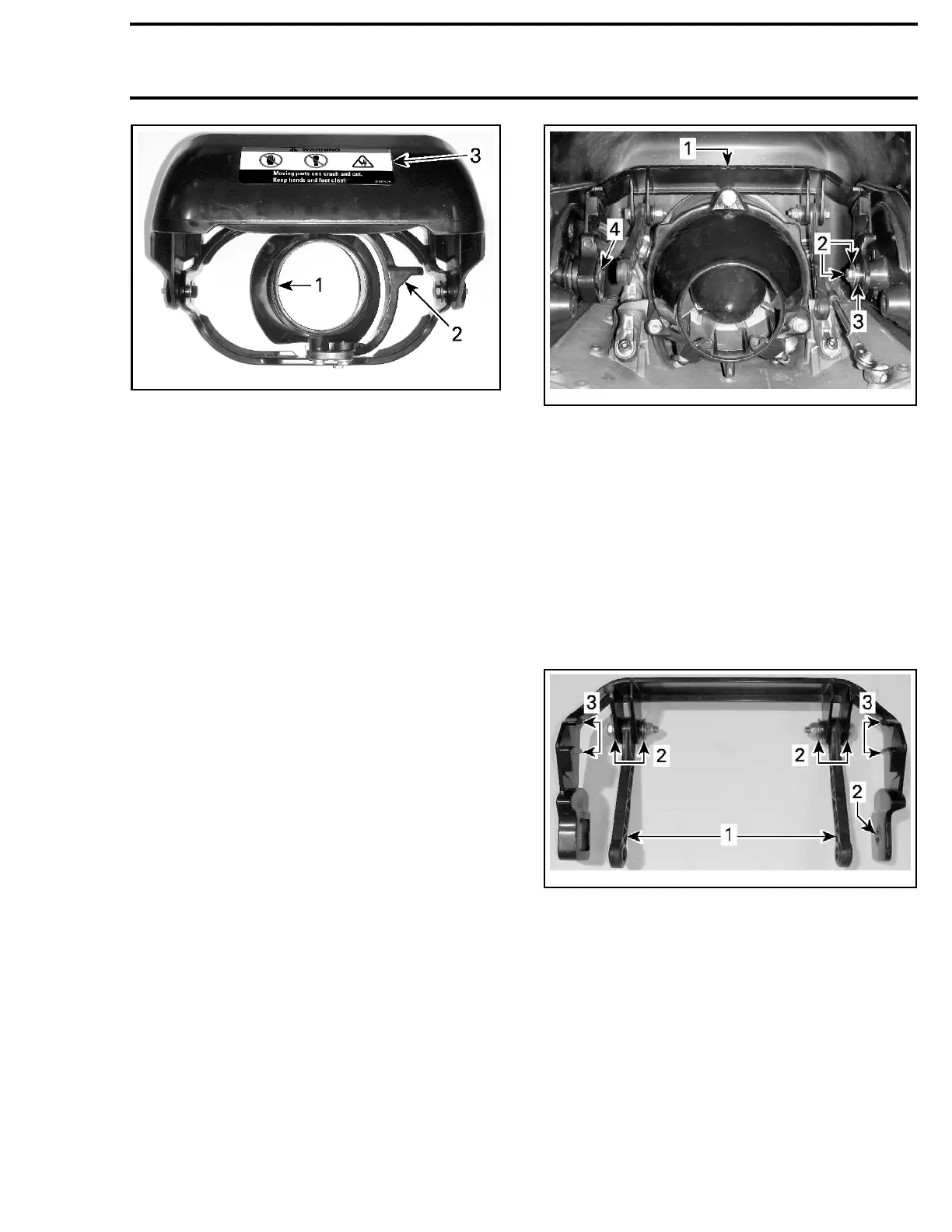

smr2009-038-011_b
1. Small end of nozzle
2. Steering lever
3. Warning label
iBR Gate Installation (with VTS Trim
RingandSteeringNozzle)
Installation is the reverse of the removal proce-
dure however, pay attention to the following:
– Install new plastic bushings (as required).
– Install all new hexagonal screws with Scotch
Grip threadlocker.
– Lift the 2 linkage arms on the "U" ring as you
insert the iBR gate and VTS ring between the
mounting plates.
– Secure the VTS ring to the mounting plates,
then secure the linkage arms to the iBR gate.
– Torque all retaining screws as specified in ex-
ploded view.
"U" ARM
"U" Arm Removal
1. Carry out the
iBR GATE REMOVAL (WITH VTS
TRIM RING)
procedure as detailed in this sub-
section.
2. Remove the RH "U" arm retaining hexagonal
screw and washer.
3. Secure the "U" arm with one hand and remove
the RH spacer sleeve.
4. Remove "U" arm from actuator shaft.
smr2009-038-015_a
1. "U" arm
2. Hexagonal screw and washer
3. Spacer sleeve
4. Actuator shaft
"U" Arm Inspection
1. Inspect "U" arm and linkage arms (x2) for cracks,
wear, and signs of twisting and bending.
2. Ensure the VTS cams on the "U" arm are not
worn, cracked or broken.
3. Inspect the plastic bushings (x5) for cracks,
wear and deformation.
4. Replace parts as required.
smr20
09-038-016_a
1. Linkage arms
2. Plastic bushings (x5)
3. VTS c
ams
"U" Arm Installation
Inst
allation is the reverse of the removal proce-
dure
however, pay attention to the following:
– Install new plastic bushings (as required).
– Install all new hexagonal screws with Scotch
Grip threadlocker.
–Tor
que all retaining screws as per exploded
vie
w.
smr2009-037 397
