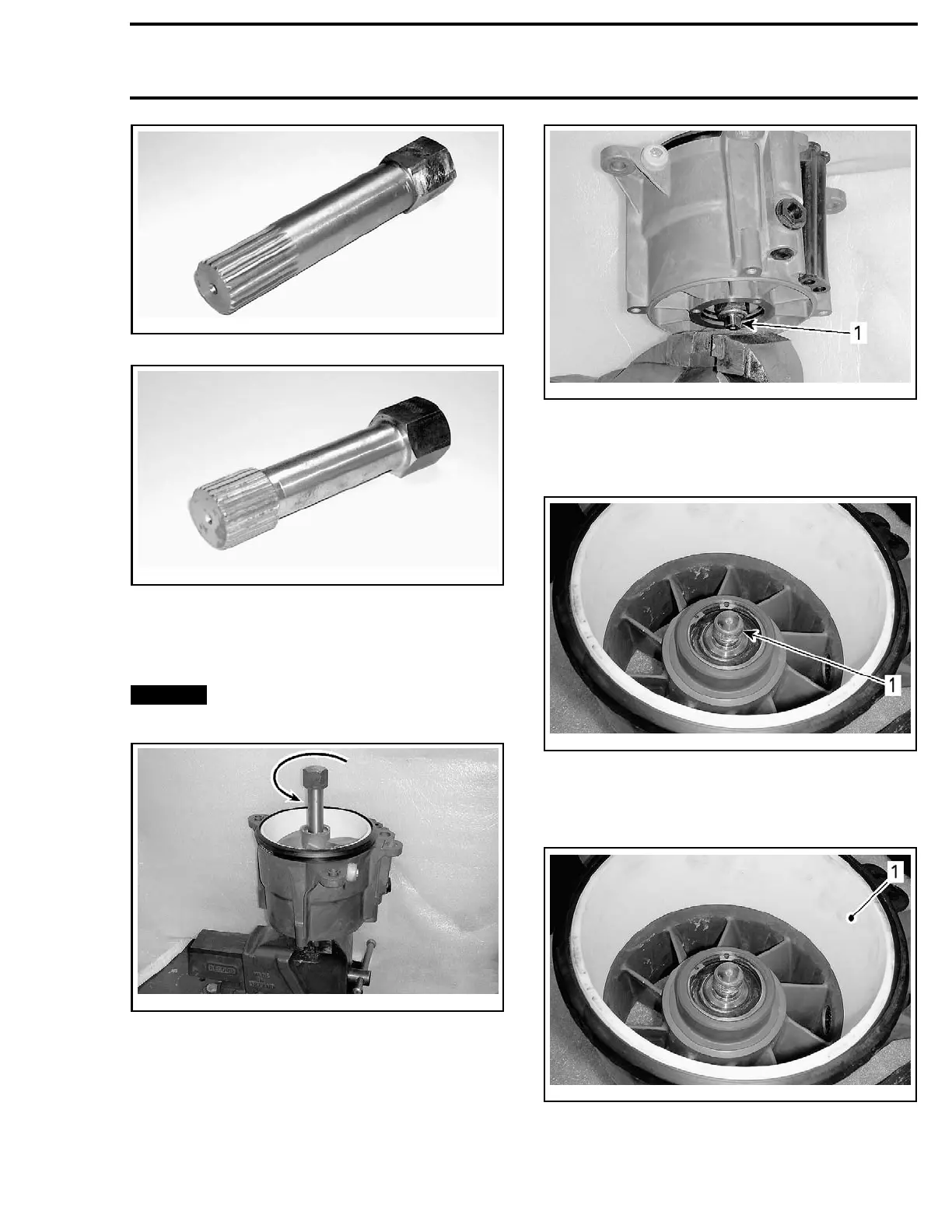

Section 06 STEERING AND PROPULSION
Subsection 03 (JET PUMP)
529035820
TOOL FOR 130 A
ND 155 ENGINES
529035956
TOOL FOR 215 AND 255 ENGINES
6. Unscrew the impeller counterclockwise.
NOTE: It may be necessary to heat the impeller
to ease removal.
NOTICE
Never use an impact wrench to
loosen impeller.
smr2009-006-006_b
TYPICAL
7. To pul
l impeller out of the pump, apply a rotating
movem
ent as you pull on the impeller.
Impeller Installation
1. Moun
t the flat sides of the impeller shaft in a
vise
.
smr2009-006-005_a
TYPICAL
1. Flat side
2. Apply LOCTITE 767 (ANTISEIZE LUBRICANT)
(P/N 293 800 070)
on threads of impeller shaft.
smr2009-006-002_b
TYPICAL
1. Antise
ize lubricant
3. Apply XPS LUBE (P/N 293 600 016) on the wear
ring surface.
smr2009-006-002_c
TYPICAL
1. XPS Lube
4. Start screwing the impeller on its shaft.
smr2009-039 417
