Section 06 STEERING AND PROPULSION
Subsection 03 (JET PUMP)
smr2009-006-009_a
TYPICAL

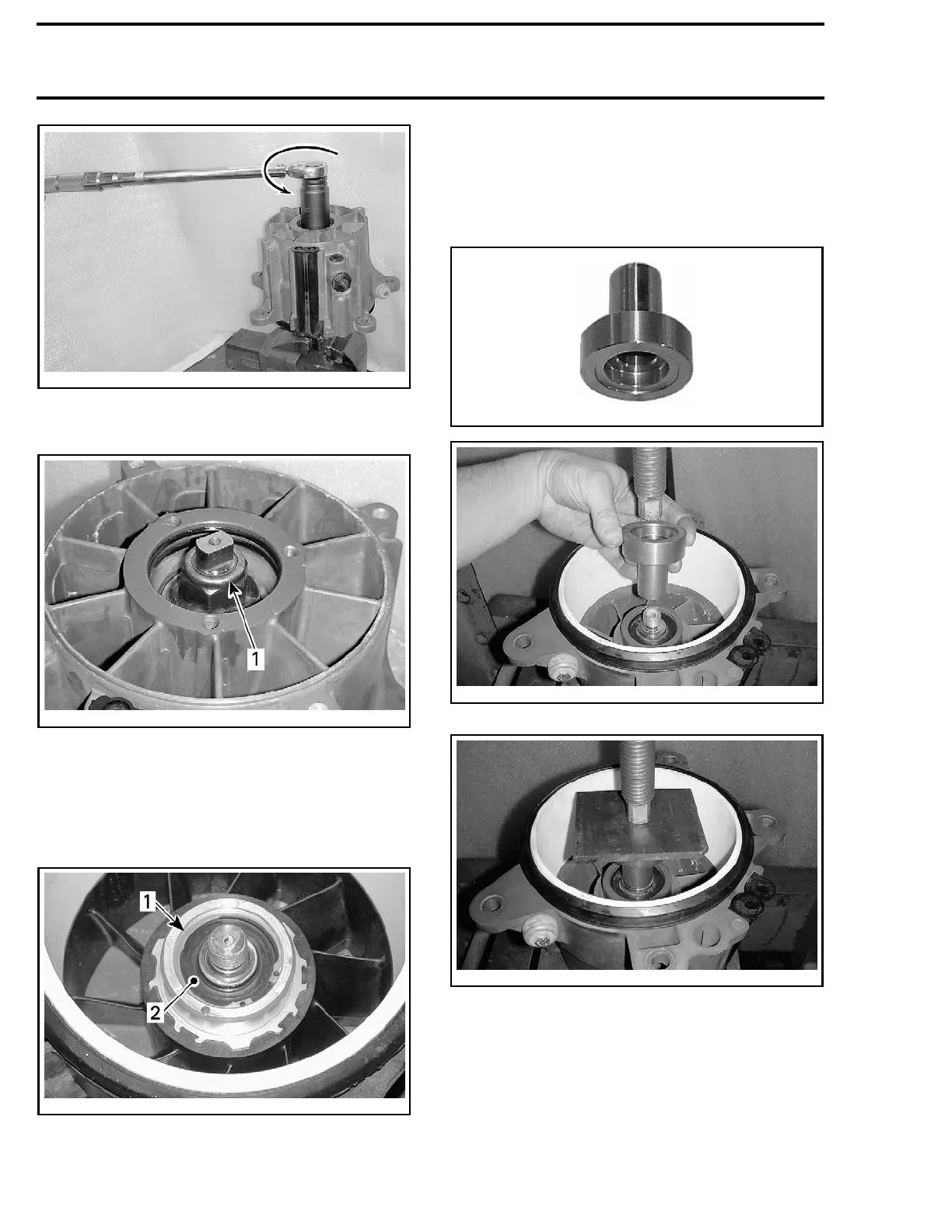

5. Remove impeller shaft nut.
smr2009-006-003_b
TYPICAL
1. Nut
6. Remove impeller as described in this subsec-
tion.
7. From th
e impeller side, remove circlip, seals,
space
r and O-ring.
smr2006-027-007_b
TYPICAL
1. Circlip
2. Seal
8. Use the IMPELLER SHAFT PUSHER (P/N 529 035
955)
to press impeller shaft out of pump hous-
ing.
NOTE: Bearing will come out with the impeller
shaft.
529035955_a
smr2009-006-010_a
TYPICAL
smr2009-006-011
TYPICAL
9. Use the IMPELLER SHAFT BEARING TOOL
(P/N 529 036 168)
to press bearing off impeller
shaft.
420 smr2009-039
