Section 06 STEERING AND PROPULSION
Subsection 03 (JET PUMP)

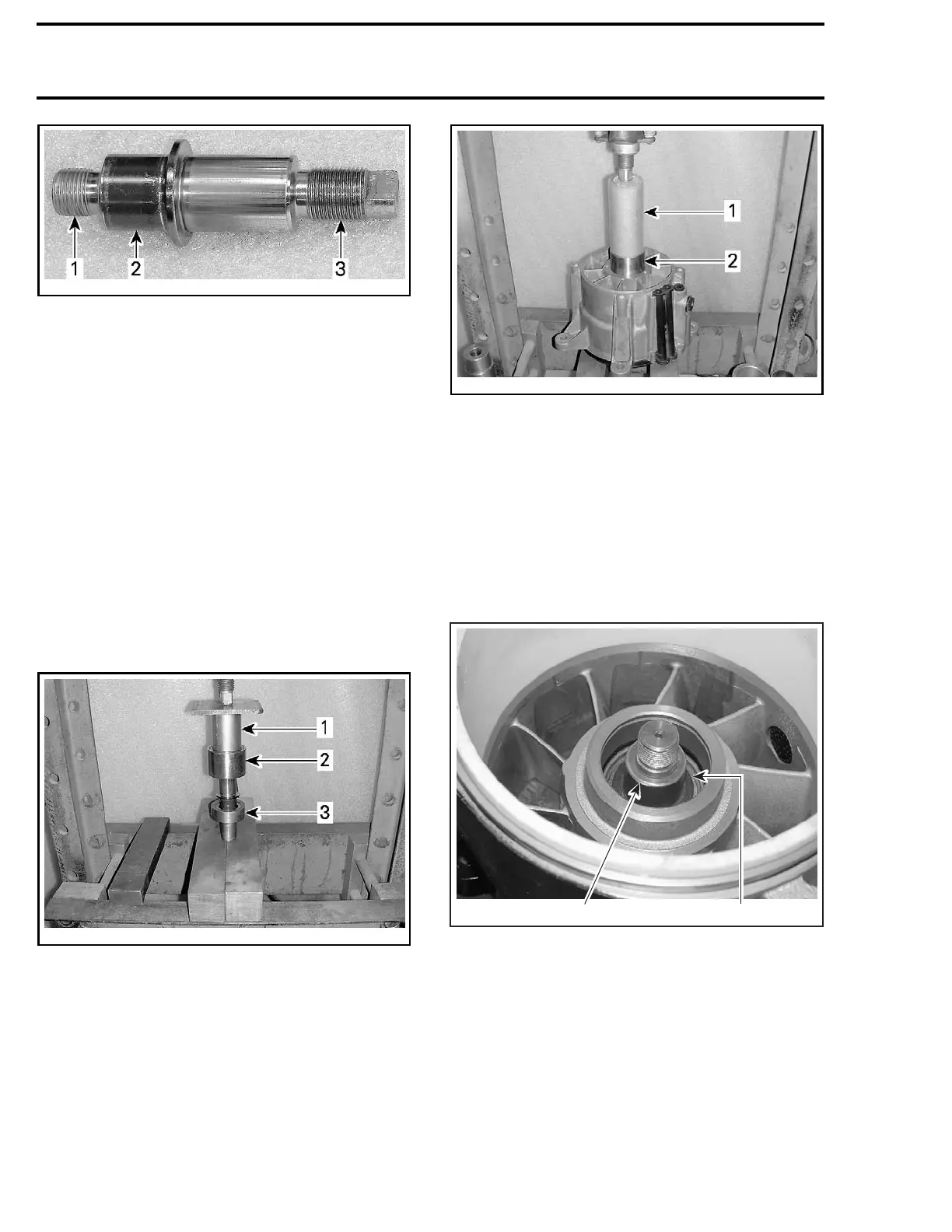

smr2009-006
-019_a
TYPICAL
1. Threads
2. Seal lip cont
act surface
3. Threads
Inspect ball bearing for corrosion.
Impeller Sha
ft and Bearing Installation
Bearing Installation
The installation is essentially the reverse of the re-
moval procedure. However, pay attention to the
following.
1. Using the
IM
PELLER SHAFT BEARING TOOL
(P/N 529 036
168)
on the bearing inner race,
press the be
aring on the impeller shaft.
2. Use the
IMPELLER SHAFT PUSHER (P/N 529 035
955)
to protect the impeller shaft threads.
NOTE: The bearing can be installed in either direc-
tion.
smr2009-006-013_a
TYPICAL
1. Impeller shaft bearing tool on INNER race
2. Impeller shaft and bearing
3. Impeller shaft installer/pusher tool
3. Press bearing until it bottoms.
Impeller Shaft Installation
NOTE: Ensure there is no O-ring in pump housing
on the cover side.
1. From the outlet side of pump, press impeller
shaft assembly into housing using the
IM-
PELLER SHAFT BEARING TOOL (P/N 529 036
168)
.
smr2009-00
6-014_a
TYPICAL
1. Bearing tool
2. Impeller s
haft and bearing
2. Press bearing until it bottoms.
NOTE: Ensu
re impeller shaft turns freely and
smoothly.
3. Turn pump upside down.
4. Coat shaft surface with
JET PUMP BEARING
GREASE (P/N 293 550 032)
.
5. Install O
-ring at bottom.
1
F19J07A
2
TYPI
CAL
1. O-ring at bottom
2. Coat surface
6. Appl
y 4 ml (.1 U.S. oz) of
JET PUMP BEARING
GREA
SE (P/N 293 550 032)
on bearing.
422 smr2009-039
