Section 07 BODY AND HULL
Subsection 02 (BODY)
Tilting Moving Deck for Servicing
Watercraft

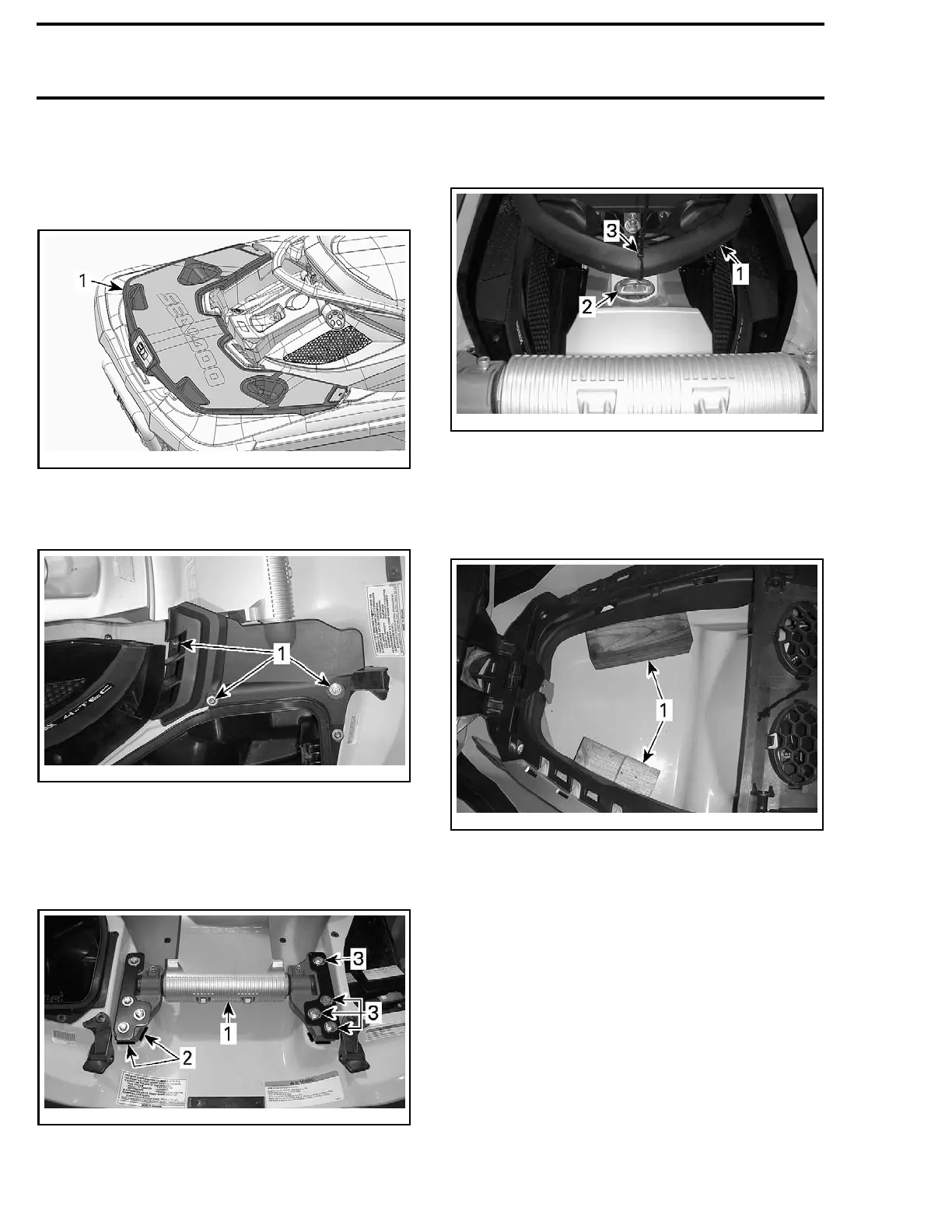

1. Remove the
BOARDING PLATFORM
, see pro-
cedure in this subsection.
ssi2009-0
02-002_a
1. Boarding platform
2. Remove bolts securing both rear suspension
arm covers.
smr2009-042-010_a
1. Cover screws
3. Mark position of rear suspension arm brackets
for proper reinstallation.
4. Remove and discard screws securing rear sus-
pension arm to fixed deck.
smr
2009-042-011_a
1. Rear suspension arm
2. Reinstallation marks
3. Sc
rews (discard)
5. Lift the rear suspension arm against seat handle
and attach it with locking tie or strap.
smr2009-042-012_a
1. Seat handl
e
2. Ski/wakeboard attachment
3. Locking tie
6. Install t
wo pieces of wood (4 x 4) under mov-
ing deck f
ront area as shown to avoid potential
damage wh
en lifting the moving deck.
smr2009-042-022_a
1. Pieces of wood
7. Place steering in its lower position.
8. Using suitable lifting devices, raise the rear of
moving deck to 340 mm (13-1/2 in).
470 smr2009-042
