Section 09 WIRING DIAGRAM
Subsection 02 (CONNECTOR INFORMATION)
2
A32E2SA
1
POSITIONI

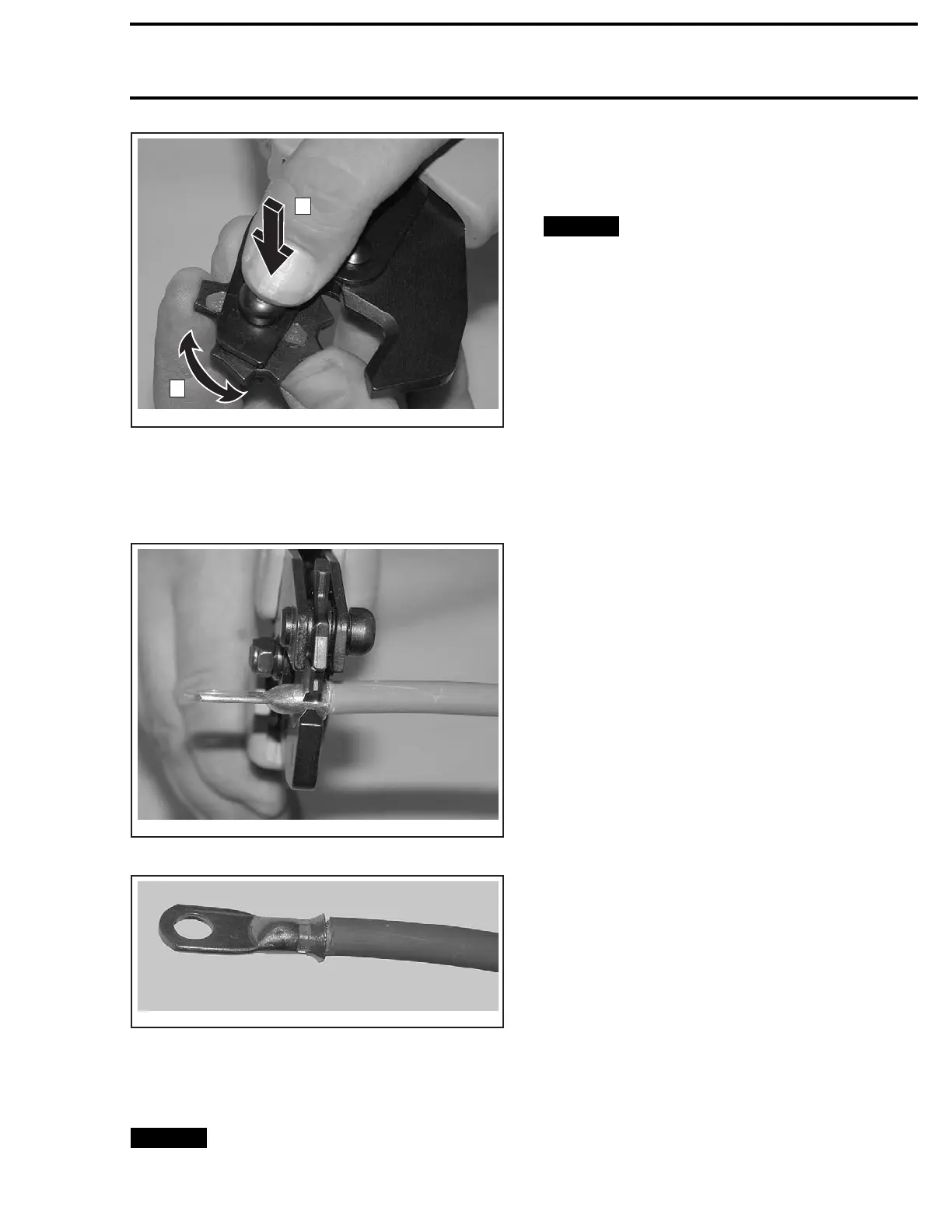

NG THE CRIMPING PLIERS
Step 1: Press
Step 2: Rotate
After posi
tioning the crimping pliers, crimp the ter-
minal alre
ady installed on wire.
A32E2TA
CRIMPING OF WIRE
A32E2UA
PROPERLY CRIMPED WIRE
To verify, if the wire is properly crimped, apply
some pulling force on wire and the terminal at the
same time from both directions.
NOTICE
Never weld the wire to the terminal.
Welding can change the property of the wire
and it can become brittle and break.
Install the protective heat shrink rubber tube on
the terminal. Heat the heat shrink rubber tube us-
ing the heat gun so that it grasps the wire and the
terminal.
NOTICE
Make sure that the protective heat
shrink rubber tube has been properly installed
and no part of wire is exposed.
