Section 02 ENGINE
Subsection 05 (INTERCOOLER)

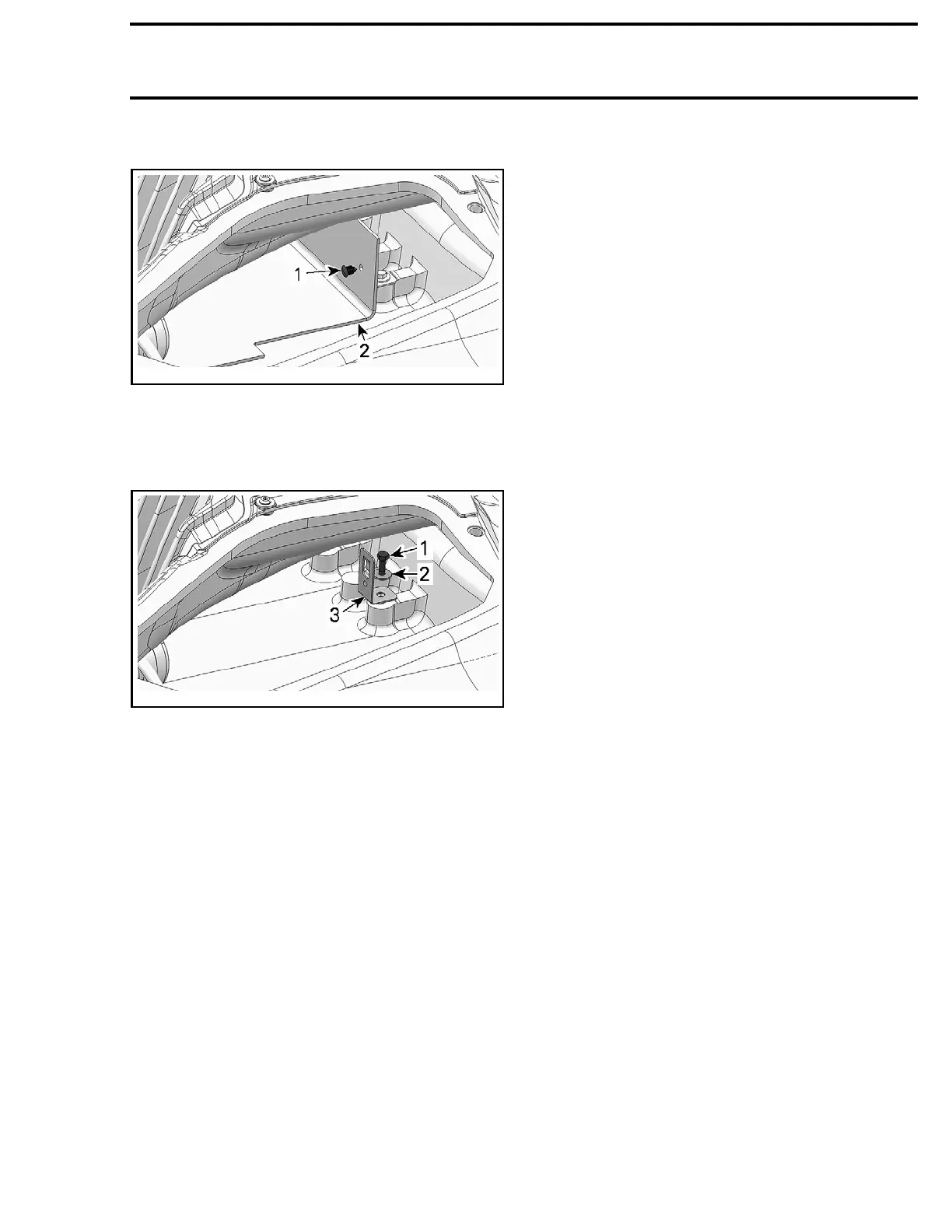

Remove plastic rivets and rubber pad.
smr2009-019-050_a
THROUGH THE
LH REAR OPENING
1. Plastic rivet
2. Rubber pad
Remove and d
iscard screw securing the attach-
ment to the
hull.
smr2009-019-051_a
THROUGH THE LH REAR OPENING
1. Retaining screw
2. Washer
3. LH rear attachment
Install a new attachment using a NEW screw.
Tighten screw to 8 N•m (71 lbf•in).
Install all other removed parts.
smr2009-019 57
