Start-up and Parameter Settings
FLOWSIC100 · Operating Instructions · 8012513/YSA5/V 2-1/2016-07 · © SICK Engineering GmbH 145
Subject to change without notice
4.3.2 Configuring optional analog modules
Analog output module
The basic settings (field "Analog Outputs - General Configuration") apply to all additional
analog outputs.
To set the parameters, carry out the following procedure:
Select the MCU type in the project window, enter the Level 1 password and switch the
measuring system to "Maintenance"
p. 126, 4.2.
Select directory "Configuration / I/O-Configuration / Output Parameter" (see
Fig. 123).
Activate the checkbox "Use first analog output module".
New dialog boxes for "Analog Output 2 Parameter" and "Analog Output 3 Parameter" are
opened.
Configure the optional analog outputs according to the requirements in § 4.2.4.

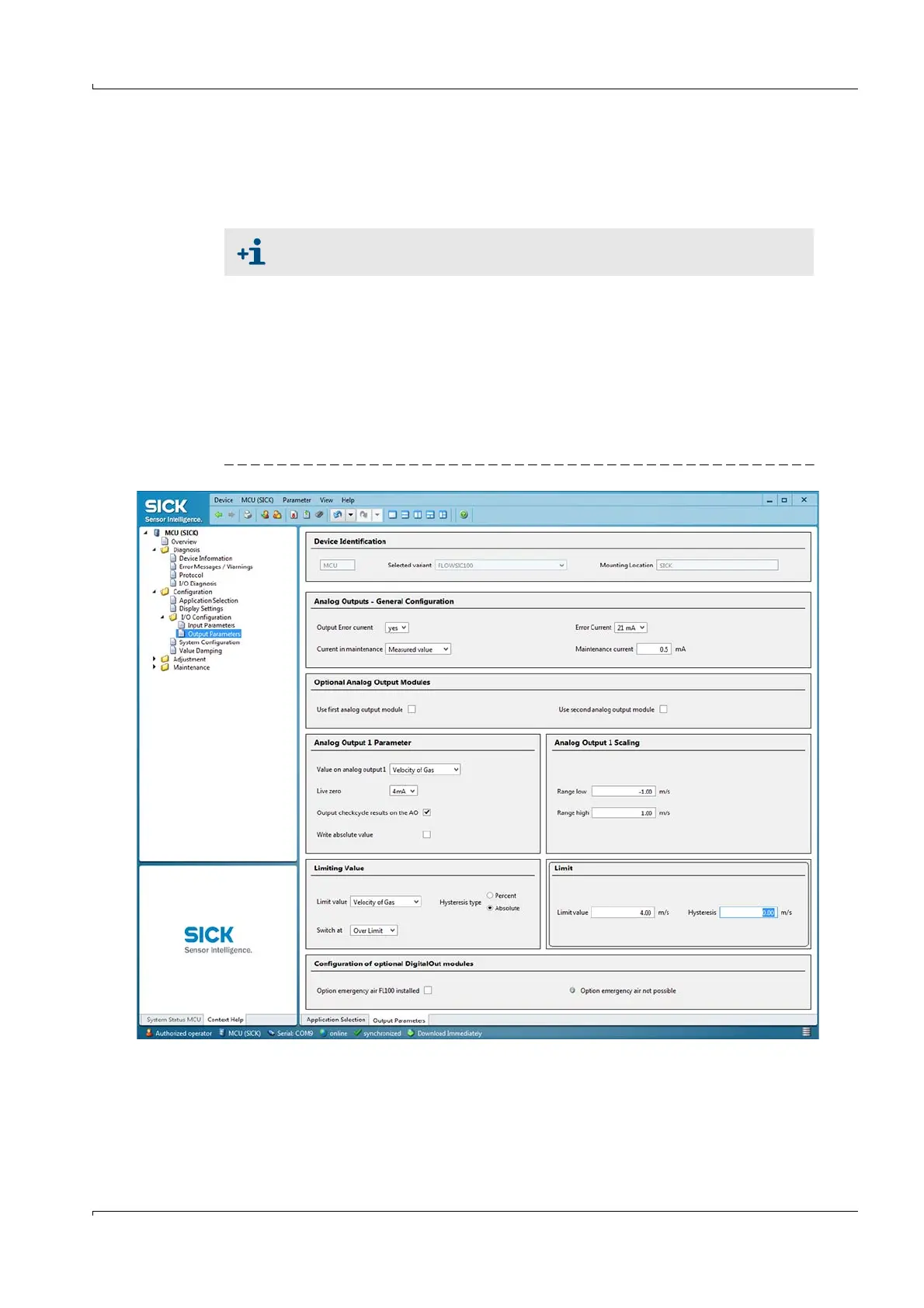

Fig. 123 Configuring the optional analog outputs
To configure further analog outputs, activate the checkbox "Select optional module /
use first or second optional module".
Maximum 4 AO are also available (2 AO modules each with 2 outputs)
