SICK FLOWSIC100 User Manual

Assembly and Installation
FLOWSIC100 · Operating Instructions · 8012513/YSA5/V2-1/2016-07 · © SICK Engineering GmbH 93
Subject to change without notice
3.3.4.2 Emergency air supply for device types PM, PH and PHS

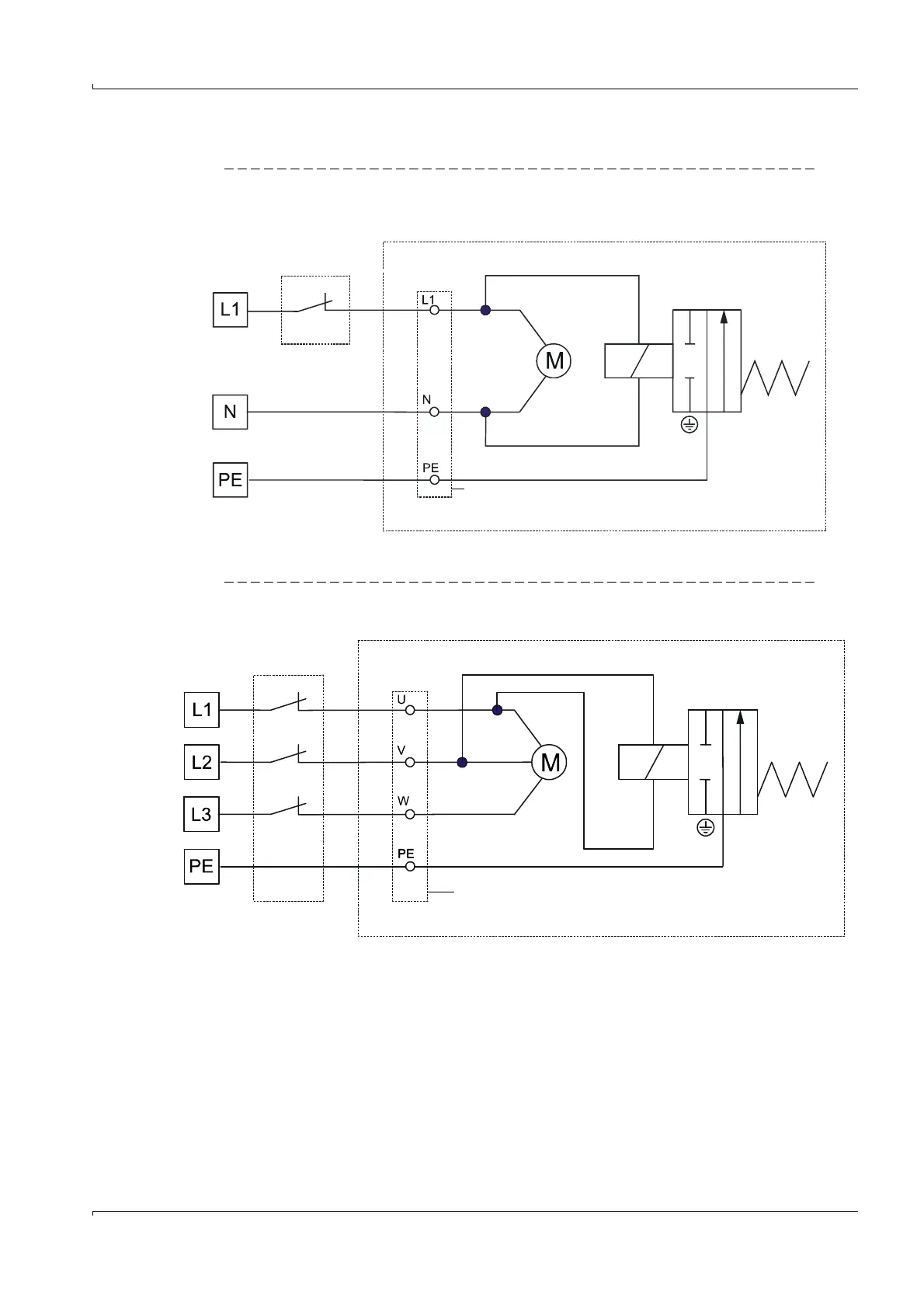

Fig. 64 Connection for operating voltage 230 V AC
Fig. 65 Connection for operating voltage 380 V AC (without phase sensor)
Purge air unit
Motor circuit breaker
(onsite)
Junction box
Purge air blower
Solenoid valve *)
*) In SICK scope of delivery but not fitted
Purge air unit
Motor circuit breaker
(onsite)
Junction box
Purge air blower
Solenoid valve *)
*) In SICK scope of delivery but not fitted
