SICK FLOWSIC100 User Manual

152 FLOWSIC100 · Operating Instructions · 8012513/YSA5/V2-1/2016-07 · © SICK Engineering GmbH
Start-up and Parameter Settings
Subject to change without notice
4.4 Operating / Configuring with the LC-Display option
4.4.1 General information on use
The display and operation interface of the LC-Display contains the functional elements
displayed in Fig. 128.

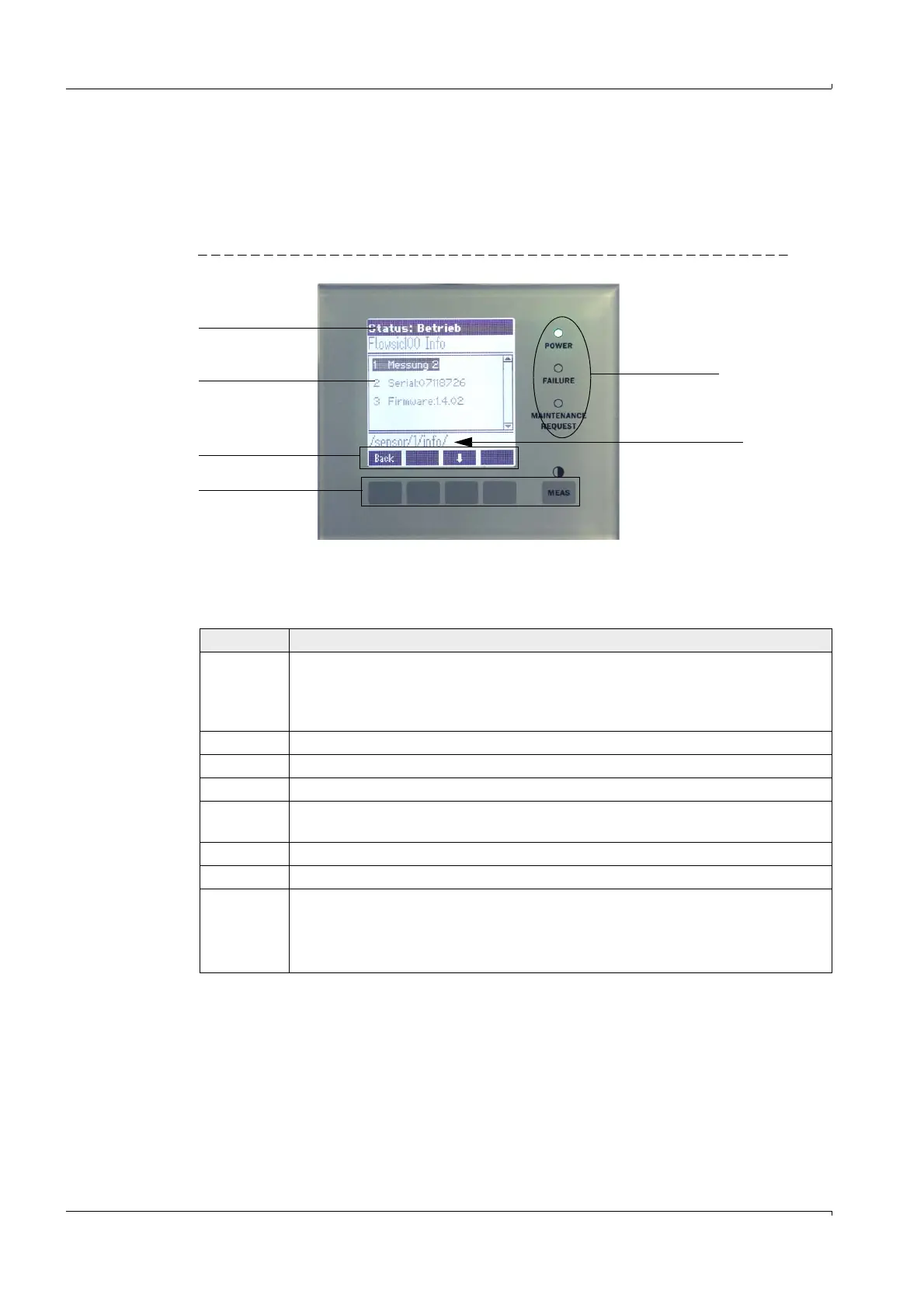

Fig. 128 Functional elements LC-Display
Key functions
Key functions depend on the current selected menu. Only the function currently displayed
over the key is available.
Status line
Display field
Current key
functions
Control buttons
Status LED
Selected menu
Button Function
Diag
Displays diagnostic information (warnings and errors during a start using the Main
menu, sensor information during a start using the Diagnostics menu; see
 p. 153,
Fig. 129)
This function is only active when warnings or malfunctions are present.
Back Returns to the next higher level
Arrow  Scrolls up
Arrow  Scrolls down
Enter
Starts the action selected with the arrow keys (go to submenu, confirmation of
selected parameter during configuration)
Start Starts an action
Save Saves a changed parameter
Meas
Selects the single measured value to be displayed
Toggles between text and graphic display
Returns to main menu from submenus
Displays the contrast settings (after 2.5 s)
