SICK FLOWSIC100 User Manual

174 FLOWSIC100 · Operating Instructions · 8012513/YSA5/V2-1/2016-07 · © SICK Engineering GmbH
Specification
Subject to change without notice
6.3.2 Flange with tube

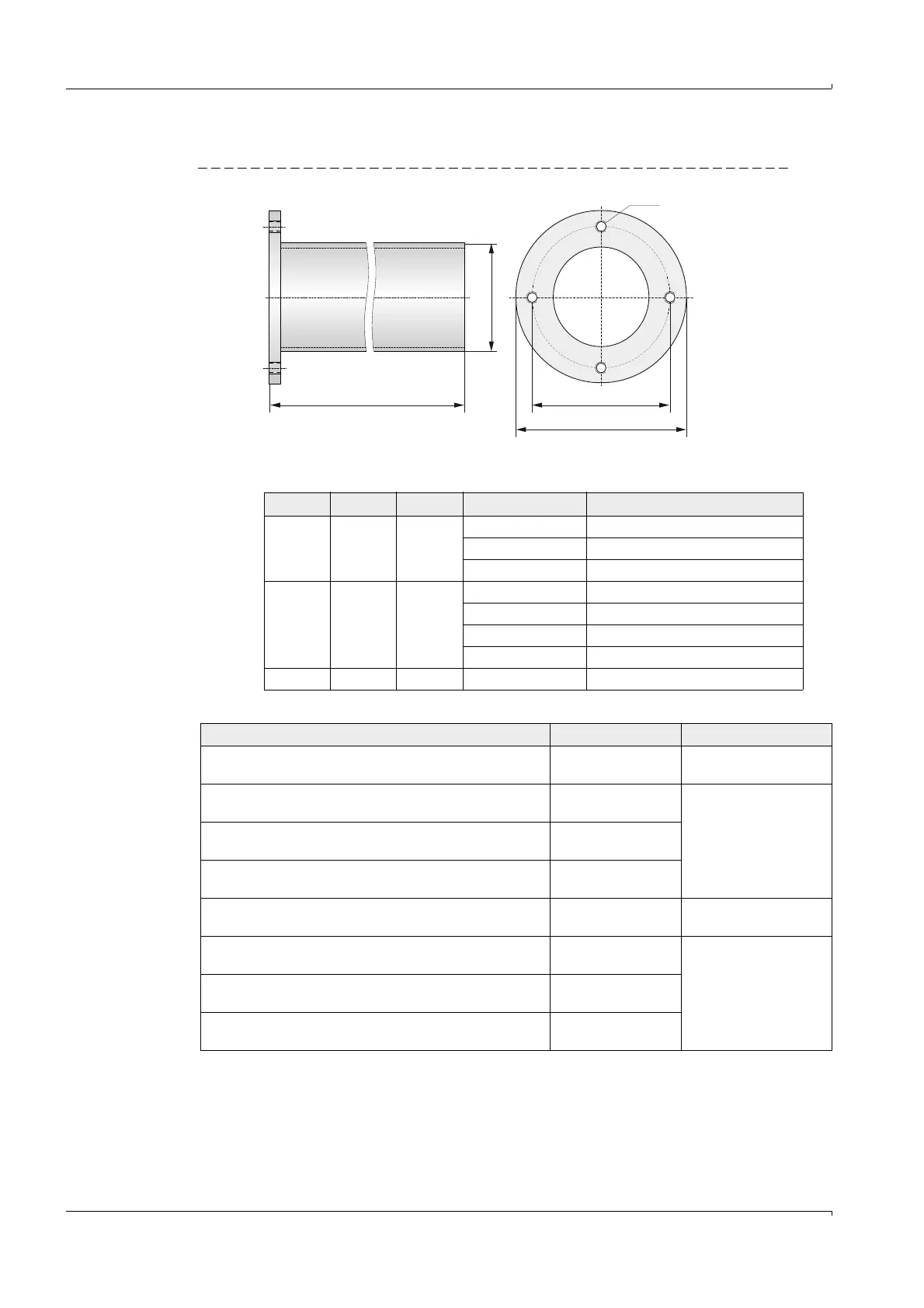

Fig. 143 Flange with tube
D1
D1 D2 D3 NL Type FLSE100
48,3 75 100
125 SA, SD
200, 350 SA, SD, M
350, 550 M, MAC
76,1 100 122
200 H, PM, PH
350 H, HAC, PR, PM, PH
550 H, HAC, PR, PM, PH
750 H, PR, PM, PH
114,3 170 210 350, 550, 750 PHS
L
L = NL - 12
M8
D2
D3
Designation Part No. For type FLSE100
Flange with tube D70ST200
Material St37, nominal length 200 mm 7042106
H, PM, PH
Flange with tube D70ST350
Material St37, nominal length 350 mm 7042109
H, PR,
PM, PH
Flange with tube D70ST550
Material St37, nominal length 550 mm 7042110
Flange with tube D70ST750
Material St37, nominal length 750 mm 7042247
Flange with tube D70SS200
Material VA, nominal length 200 mm 7042111
H, PM, PH
Flange with tube D70SS350
Material VA, nominal length 350 mm 7042112
H, PR,
PM, PH
Flange with tube D70SS550
Material VA, nominal length 550 mm 7042113
Flange with tube D70SS750
Material VA, nominal length 750 mm 7042249
