4.2.4 Configuring the analog output
Select MCU directory "Configuration / I/O Configuration / Output Parameters" (  Fig. 104) to
set the analog output.

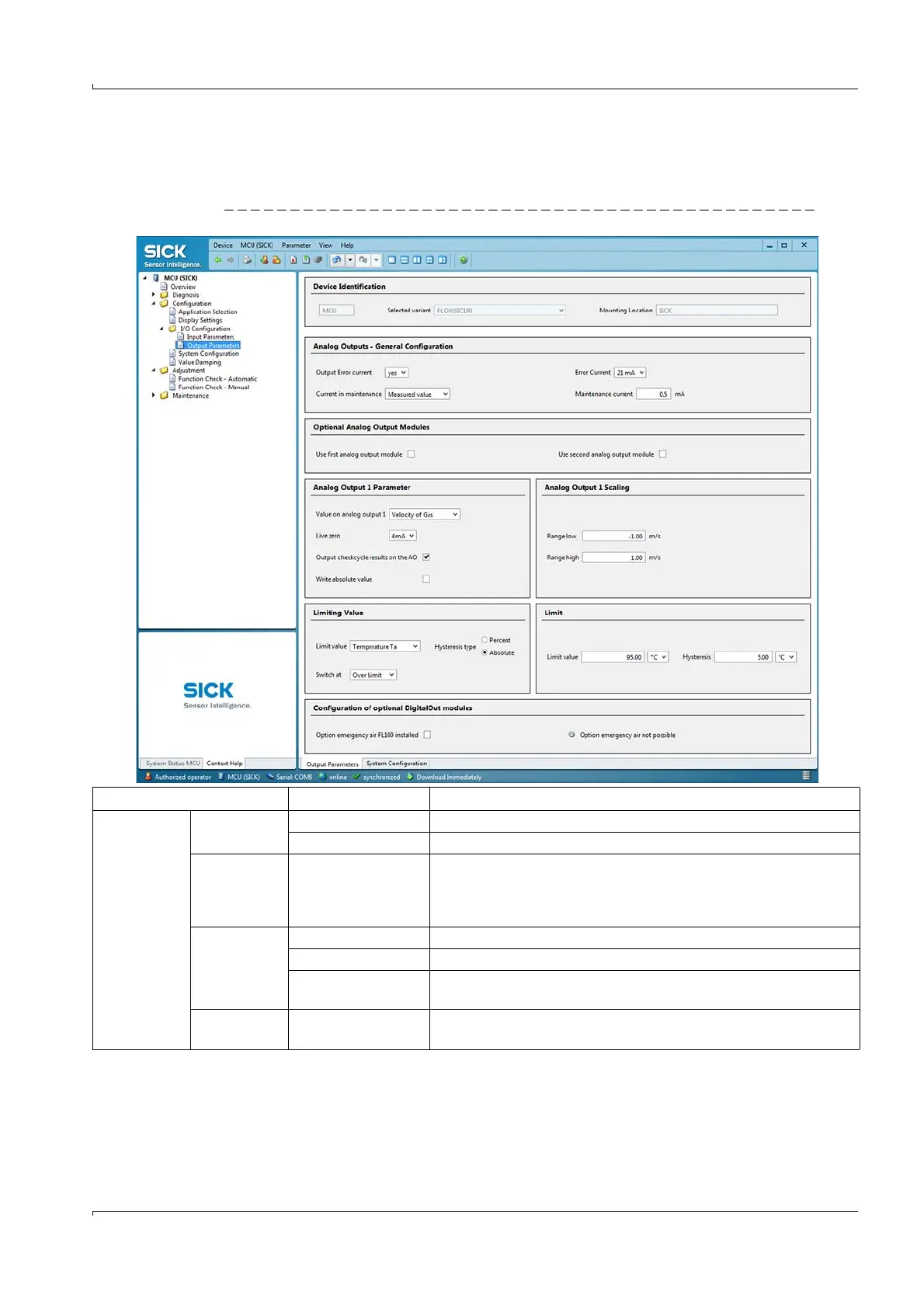

Fig. 104 Directory "Output Parameter"
Field Parameters Remark
Analog Out-
puts - General
Configuration
Output fault
current
Yes The fault current is output
No The fault current is not output
Differential
current
Value > 20 mA mA value to be output in case of malfunction
Note
Select a value < Live Zero when connected evaluation systems can only
process the range 0 to 20 mA.
Maintenance
current
Last measured value The last measured value is output during Maintenance mode
User defined value A value to be defined is output during Maintenance mode
Measured value out-
put
The current measured value is output during Maintenance Mode
Current at
maintenance
Value if possible

Live Zero
mA value to be output during Maintenance mode
