3.1.2 Further planning information
Installing the FLSE100 in horizontal ducts
On horizontal ducts and pipelines, the sender/receiver units should be installed slightly
inclined from horizontal to prevent possible condensate from entering the duct (
Fig. 28).

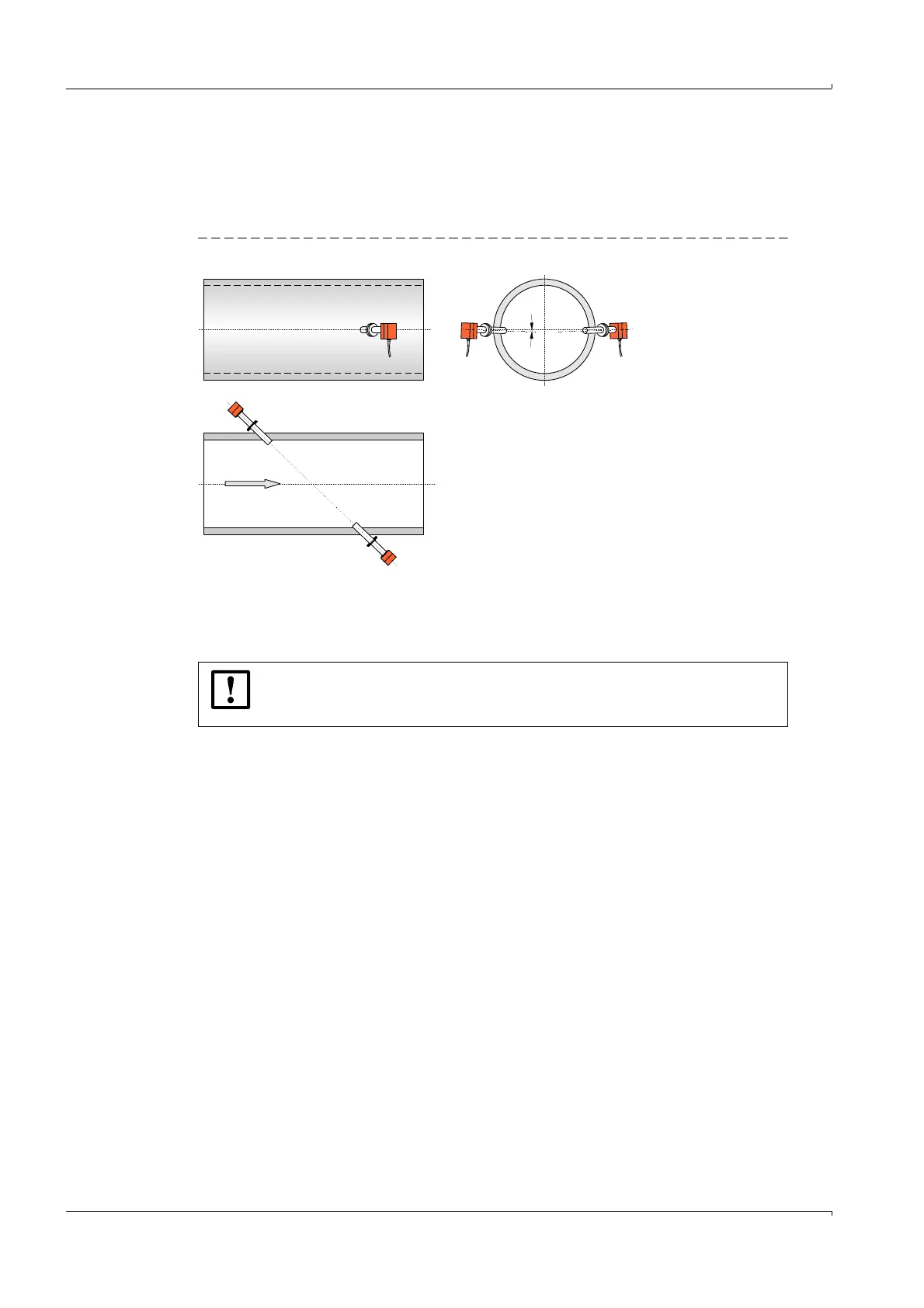

Fig. 28 Installing the sender/receiver units on horizontal ducts
Duct
1 ... 2°
FLSE100 Master (A)
FLSE100 Slave (B)
NOTICE:
On FLOWSIC100 S devices, the sender/receiver unit FLSE100-SD with
electronics unit is the master.
