SICK FLOWSIC100 User Manual

Specification
FLOWSIC100 · Operating Instructions · 8012513/YSA5/V 2-1/2016-07 · © SICK Engineering GmbH 169
Subject to change without notice
6.3 Dimensions, Part No.
All dimensions are in mm.
6.3.1 Sender/receiver units
Standard sender/receiver units

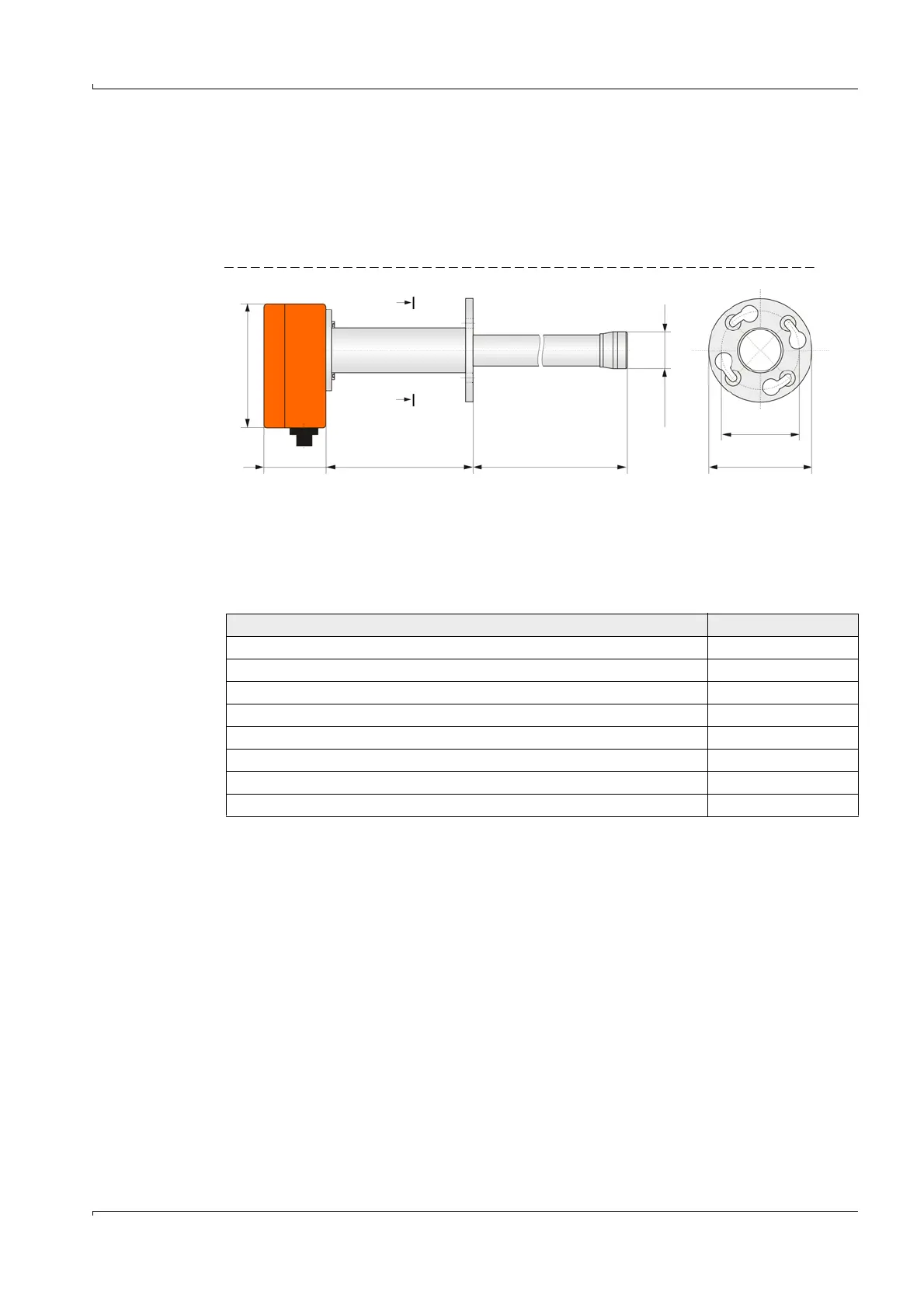

Fig. 135 FLSE100-M
NL = 200 / 350 / 550**
60 132 NL
*
Ø 75*
120
Ø 35
A - A
A
A
*: Deliverable with pitch diameter 100 mm and flange
diameter 125 mm on request
**: Other nominal lengths on request
Ø 100*
Designation Part No.
FLSE100-M 20SSTI
sender/receiver unit 1042678
FLSE100-M 35SSTI
sender/receiver unit 1042679
FLSE100-M 55SSTI
sender/receiver unit 1042680
FLSE100-M 20TITI
sender/receiver unit 1042681
FLSE100-M 35TITI
sender/receiver unit 1042682
FLSE100-M 55TITI
sender/receiver unit 1042683
FLSE100-M 20HSHS
sender/receiver unit 1042684
FLSE100-M 35HSHS
sender/receiver unit 1042685
