Assembly and Installation
Subject to change without notice
3.2.5 Installation of the weatherproof cover for the sender/receiver units

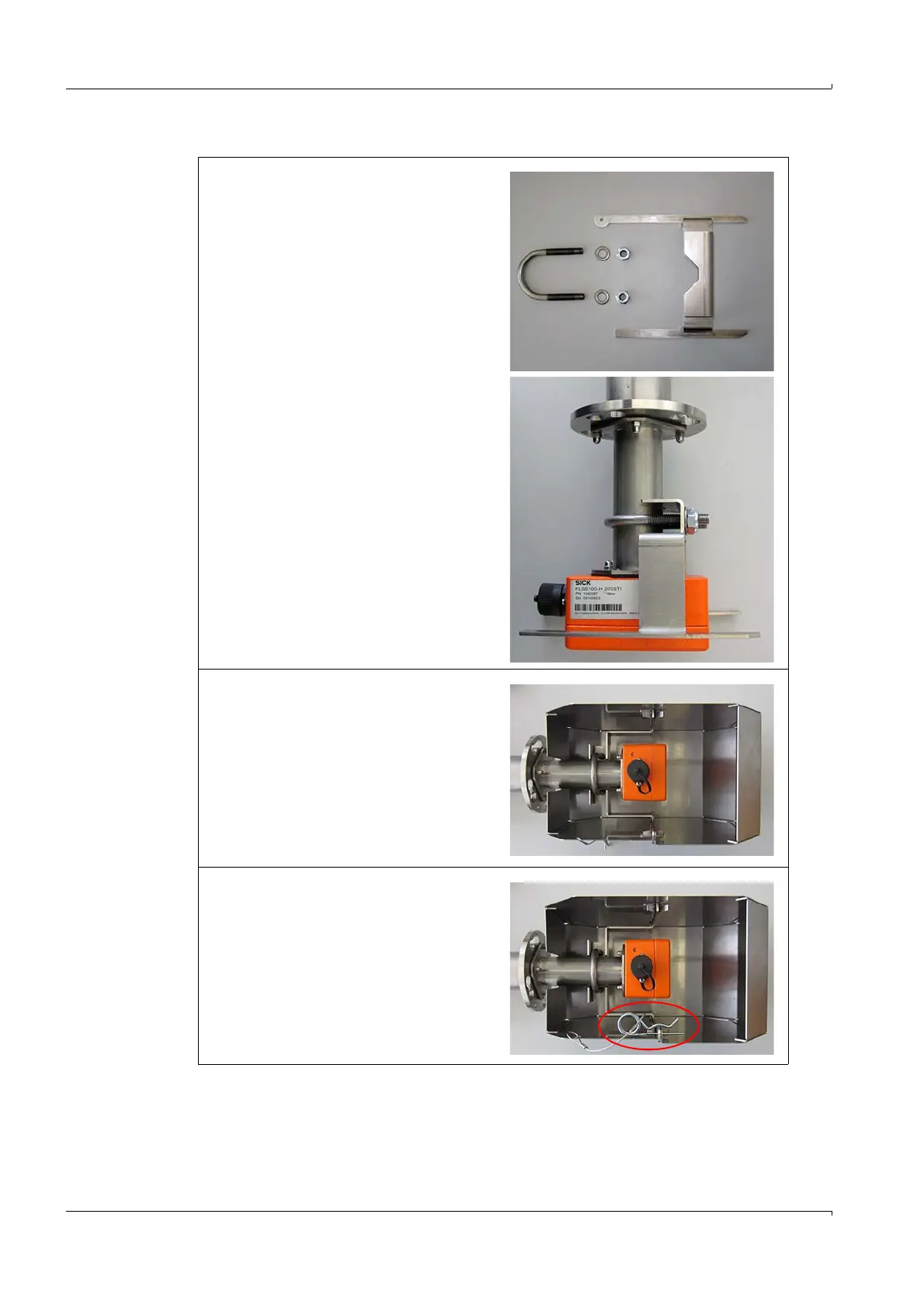

Fix the holder to the sender/receiver
unit:
– Use the fixing accessories to attach
the holder with round steel bow to
the probe neck of the FLSE100
– Pay attention to the correct align-
ment of the holder. See adjacent fig-
ure.
Position the protective hood on the
holder.
Secure the weather protection with the
split pin.
