4.4.5 Changing the display settings with SOPAS ET
To change the factory settings, select the device file "MCU", enter the Level 1 password and
select the ‘‘Configuration / Display Settings” menu.

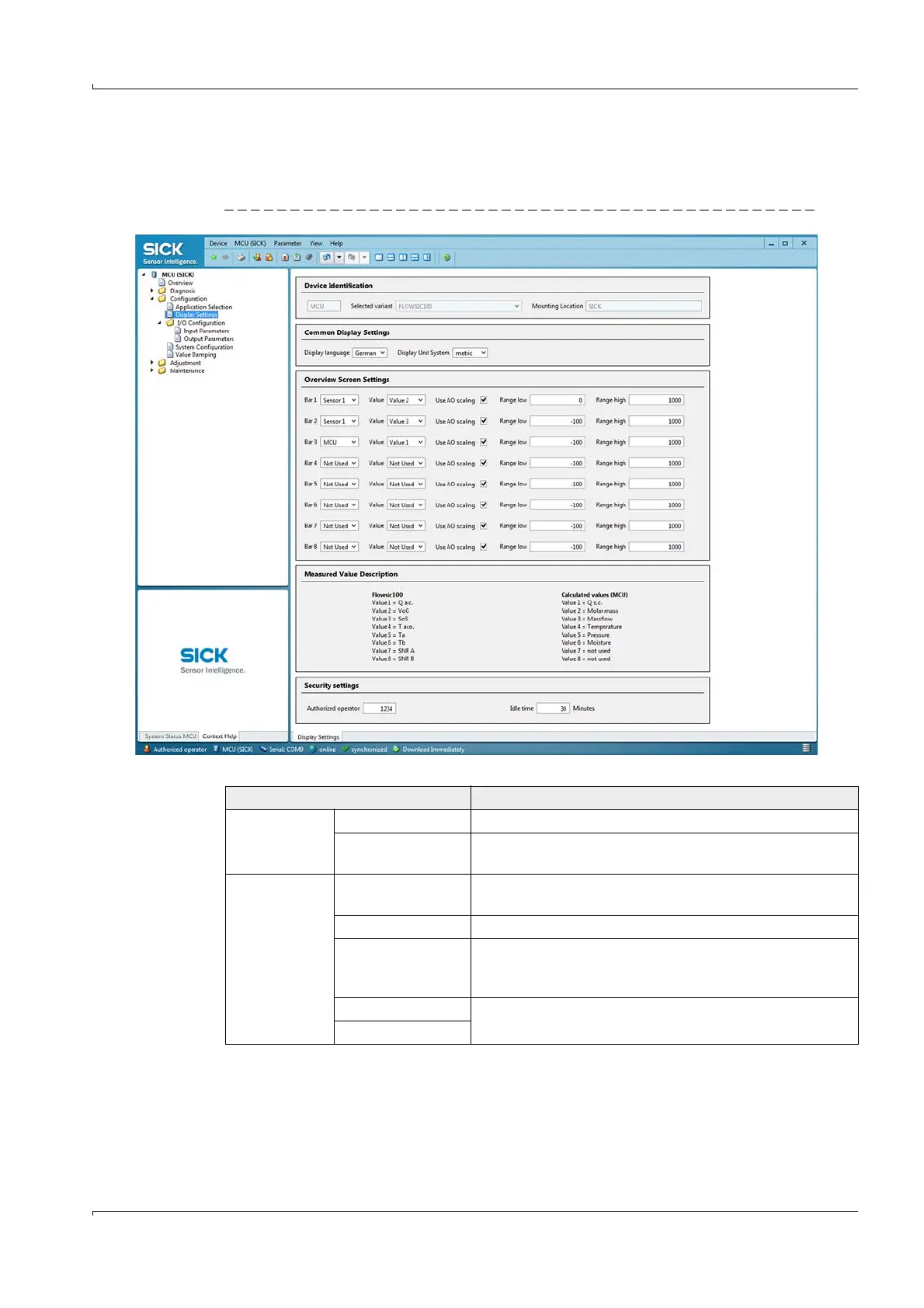

Fig. 132 "Configuration / Display Settings" menu
Field Significance
Common Dis-
play Settings
Display language Language used on LC-Display
Display Unit
System
Unit system used on LC-Display
Overview
Screen
Settings
Source Sensor
(1) to (8)
Sensor address for the first measured value bar of the
graphic display
Source Value Measured value index for the first measured value bar
Use AO scaling
If active, the measured value bar of the corresponding
analog output is scaled. If the checkbox is not checked,
the limit values must be defined separately.
Range low
Values for the separate scaling of the measured value bar,
independent of the analog output
Range high
