Purged sender/receiver units

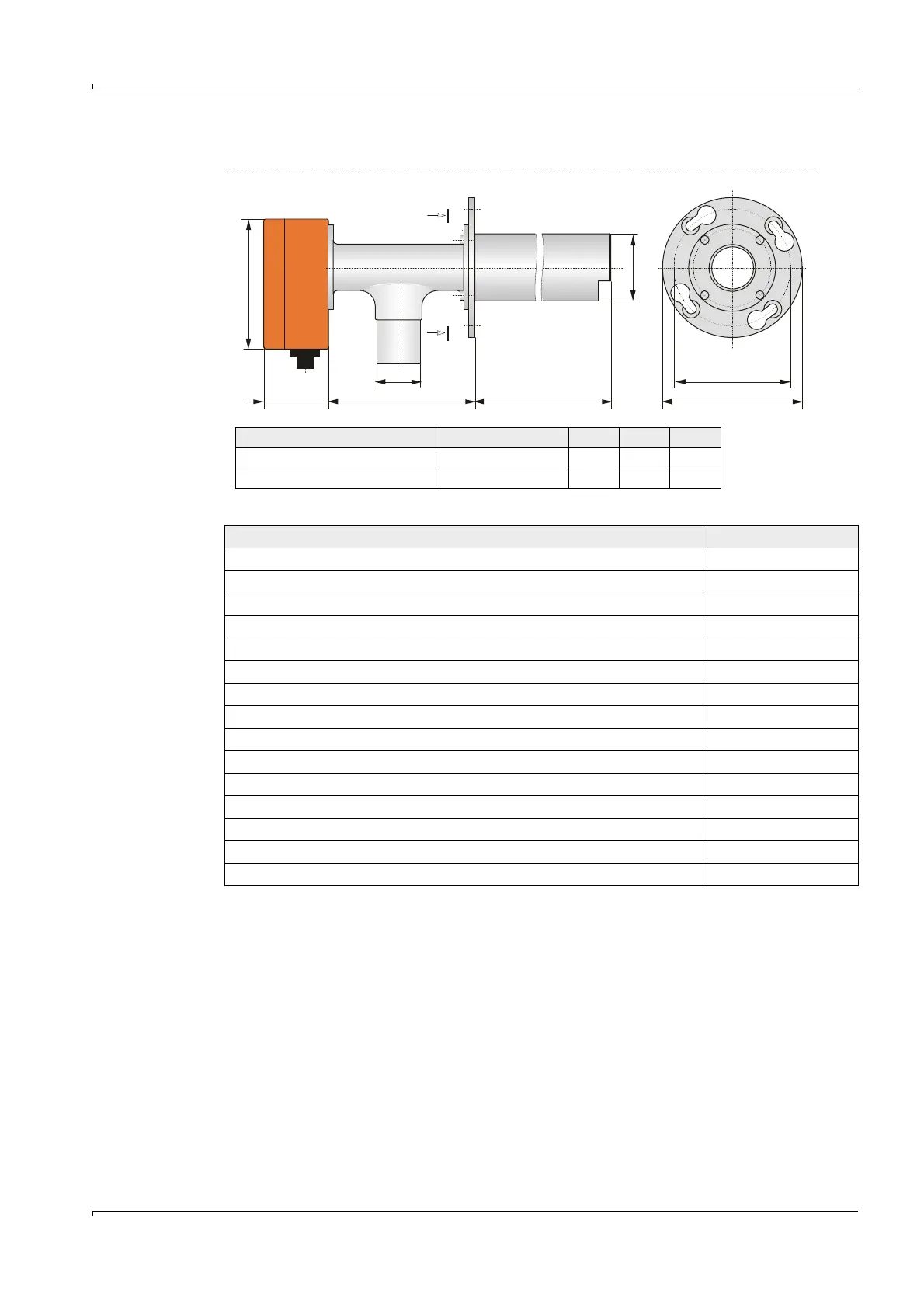

Fig. 142 FLSE100-PM, FLSE100-PH, FLSE100-PHS
Type of sender/receiver unit NL* D1 D2 D3
FLSE100-PM, FLSE100-PH 200, 350, 550, 750 60,3 100 125
FLSE100-PHS 350, 550, 750 76 170 210
A
A
A - A
D2
D3
Ø 40
60 132 NL
120
D1
Designation Part No.
FLSE100-PM 20SSTI sender/receiver unit 1042674
FLSE100-PM 35SSTI sender/receiver unit 1042675
FLSE100-PM 55SSTI sender/receiver unit 1042676
FLSE100-PM 75SSTI sender/receiver unit 1042677
FLSE100-PH 20SSTI sender/receiver unit 1042659
FLSE100-PH 35SSTI sender/receiver unit 1042660
FLSE100-PH 55SSTI sender/receiver unit 1042661
FLSE100-PH 75SSTI sender/receiver unit 1042662
FLSE100-PH 20TITI sender/receiver unit 1042663
FLSE100-PH 35TITI sender/receiver unit 1042664
FLSE100-PH 55TITI sender/receiver unit 1042665
FLSE100-PH 75TITI sender/receiver unit 1042666
FLSE100-PHS 35SSTI sender/receiver unit 1042667
FLSE100-PHS 55SSTI sender/receiver unit 1042668
FLSE100-PHS 75SSTI sender/receiver unit 1042669
* Other nominal lengths on request
