Specification
Subject to change without notice
Sender/receiver units with internal cooling

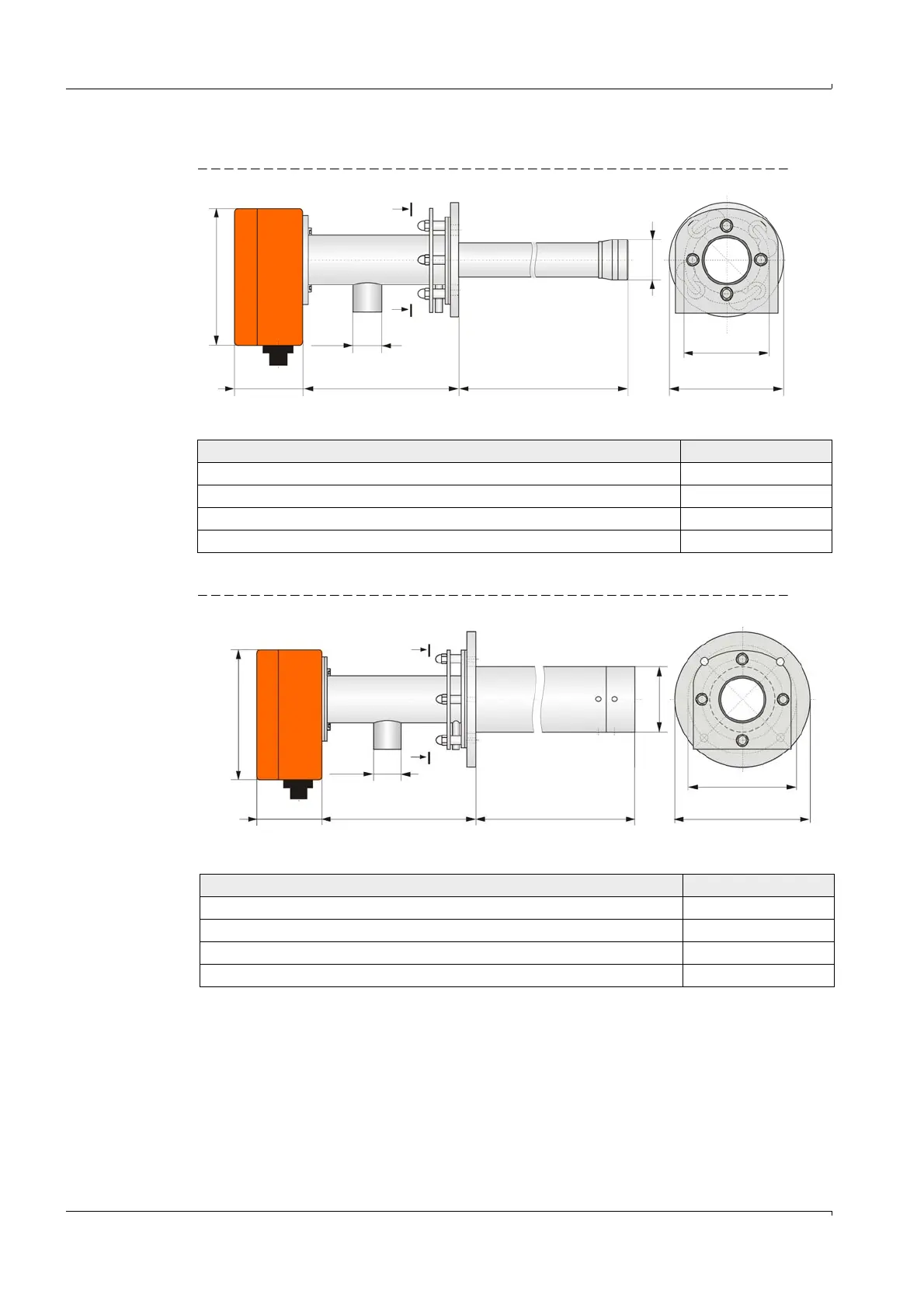

Fig. 140 FLSE100-MAC
Fig. 141 FLSE100-HAC
NL = 350 / 550 **
Ø 75*
Ø 100*
A - A
A
A
60 182 NL
Ø 35
120
Ø 25
Designation Part No.
FLSE100-MAC 35SSTI sender/receiver unit 1042771
FLSE100-MAC 55SSTI sender/receiver unit 1042772
FLSE100-MAC 35TITI sender/receiver unit 1042773
FLSE100-MAC 55TITI sender/receiver unit 1042774
NL = 350 / 550**
A
A
A - A
60 147 NL
120
Ø 60
Ø 25
Designation Part No.
FLSE100-HAC 35SSTI sender/receiver unit 1042775
FLSE100-HAC 55SSTI sender/receiver unit 1042776
FLSE100-HAC 35TITI sender/receiver unit 1042777
FLSE100-HAC 55TITI sender/receiver unit 1042778
*: Deliverable with pitch diameter 100 mm
and flange diameter 125 mm on request
**: Other nominal lengths on request
Ø 100
Ø 125
