Operating instructions Chapter 7
S3000
8009942/WK81/2012-11-28 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 105
Subject to change without notice
Application examples and
connection diagrams
The access is monitored permanently. For safety against manipulation on the S3000, e.g.
the floor is used as a reference. If the alignment of the S3000 changes (e.g. due to change
to the mounting), the S3000 shuts down.
7.1.2 Applications with multiple monitored areas (S3000 Advanced)
The two areas to be monitored are switched using the static control inputs depending on
the phase of the process on the machine. For example the area  or the area  can be
monitored, both areas can be monitored or none.

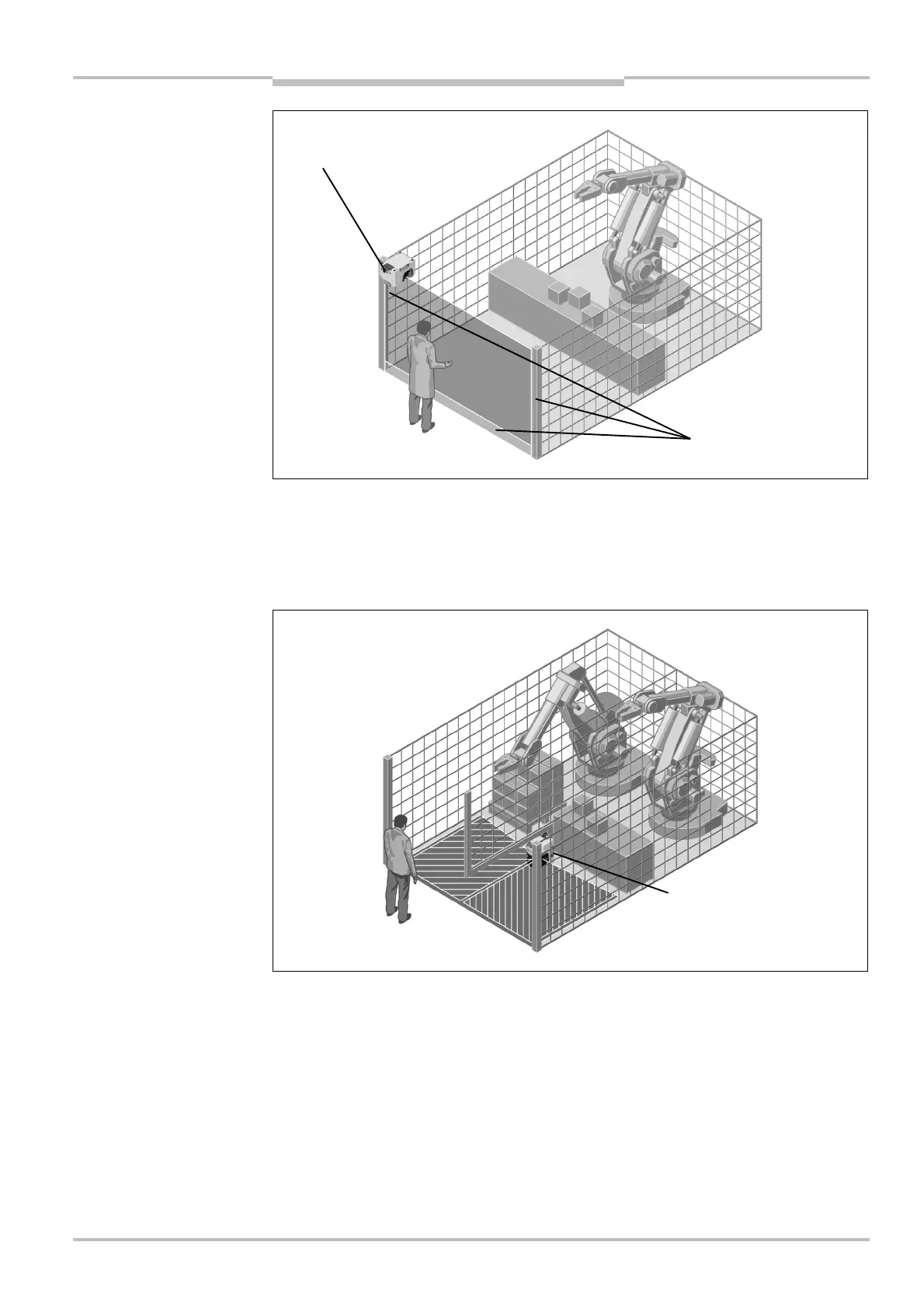

Fig.
66
:
Access protection
with S3000 Standard
Fig.
67
:
Hazardous area
protection with
S3000 Advanced
S3000
Advanced with two
protective fields and warning
fields — mounted horizontally


S3000 Standard with one
protective field — mounted
vertically
Floor and posts
as reference
