Application examples and
connection diagrams
7.5.3 Protective field switching with two static inputs
S3000 Advanced in conjunction with relays/contactors; Operating mode: with restart
interlock and external device monitoring; Protective field switching by means of control
inputs A and B.
7.5.4 Protective field switching with four static inputs
S3000 Professional in conjunction with relays/contactors; Operating mode: with restart
interlock and external device monitoring; static protective field switching using the control
inputs A to D.
Fig.
78
:

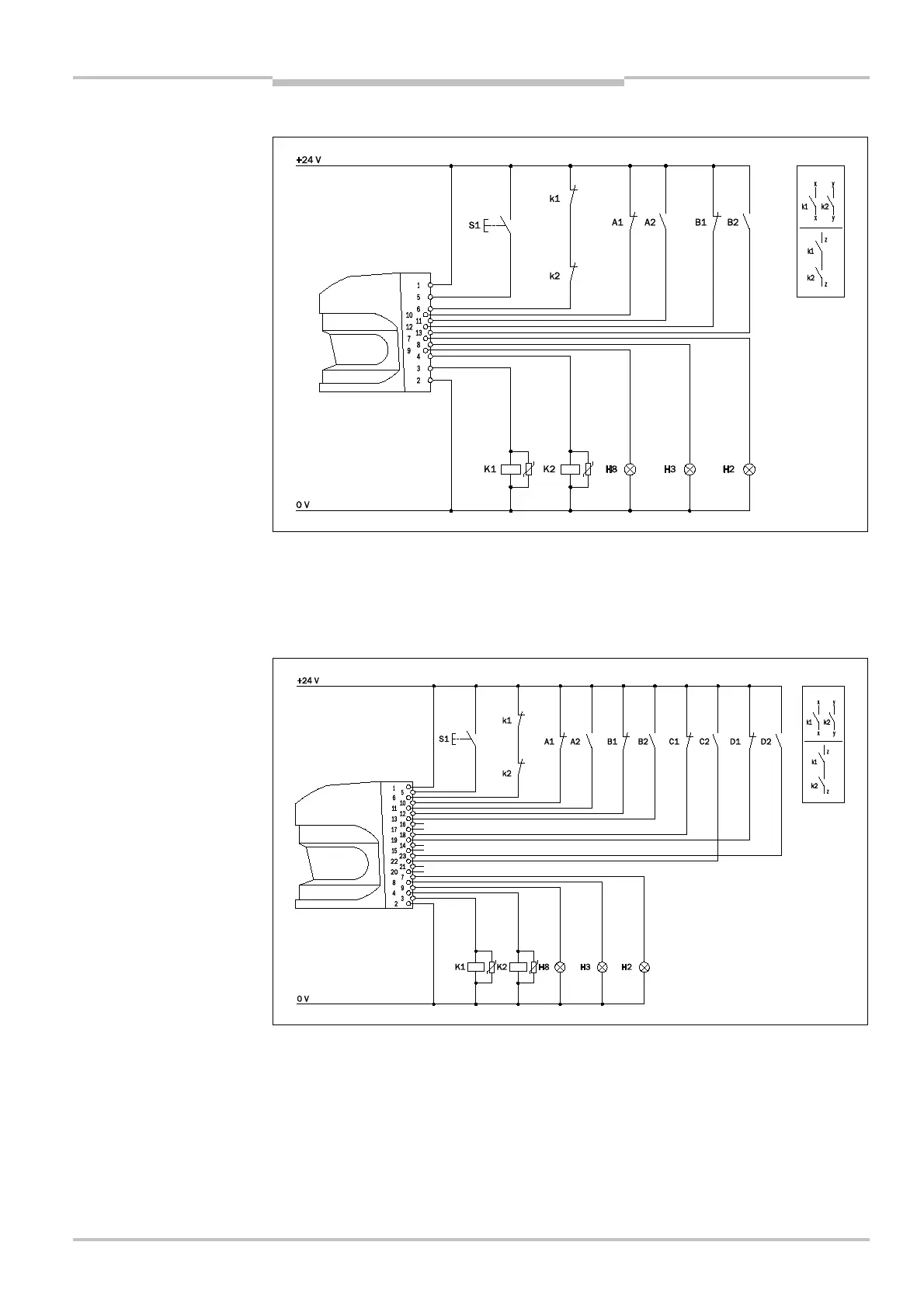

Connection diagram
for protective field switching
using two static inputs
Fig.
79
:
Connection diagram
for protective field switching
using four static inputs
S3000
Advanced
S3000
Professional
