SICK S3000 User Manual

Chapter 5 Operating instructions
S3000
84 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 8009942/WK81/2012-11-28
Subject to change without notice
Mounting
5.5 Measures to protect areas not covered by the S3000
D
uring mounting the S3000, areas may be found that are not covered by the safety laser
scanner.
These areas  become larger if the S3000 is mounted using the mounting kits.
Size of the unprotected areas
Mounting variant
X Y
Direct mounting 109 mm 1245 mm
With mounting kit 1 112 mm 1280 mm
With mounting kit 1 and 2 127 mm 1452 mm
With mounting kit 1, 2 and 3 142 mm 1623 mm
Prevent unprotected areas!
Mount the S3000 such that there are no unprotected areas. Take one of the precautions
given in the following:
 Fit cover plates to prevent standing behind.
 Fit the S3000 in a recess.

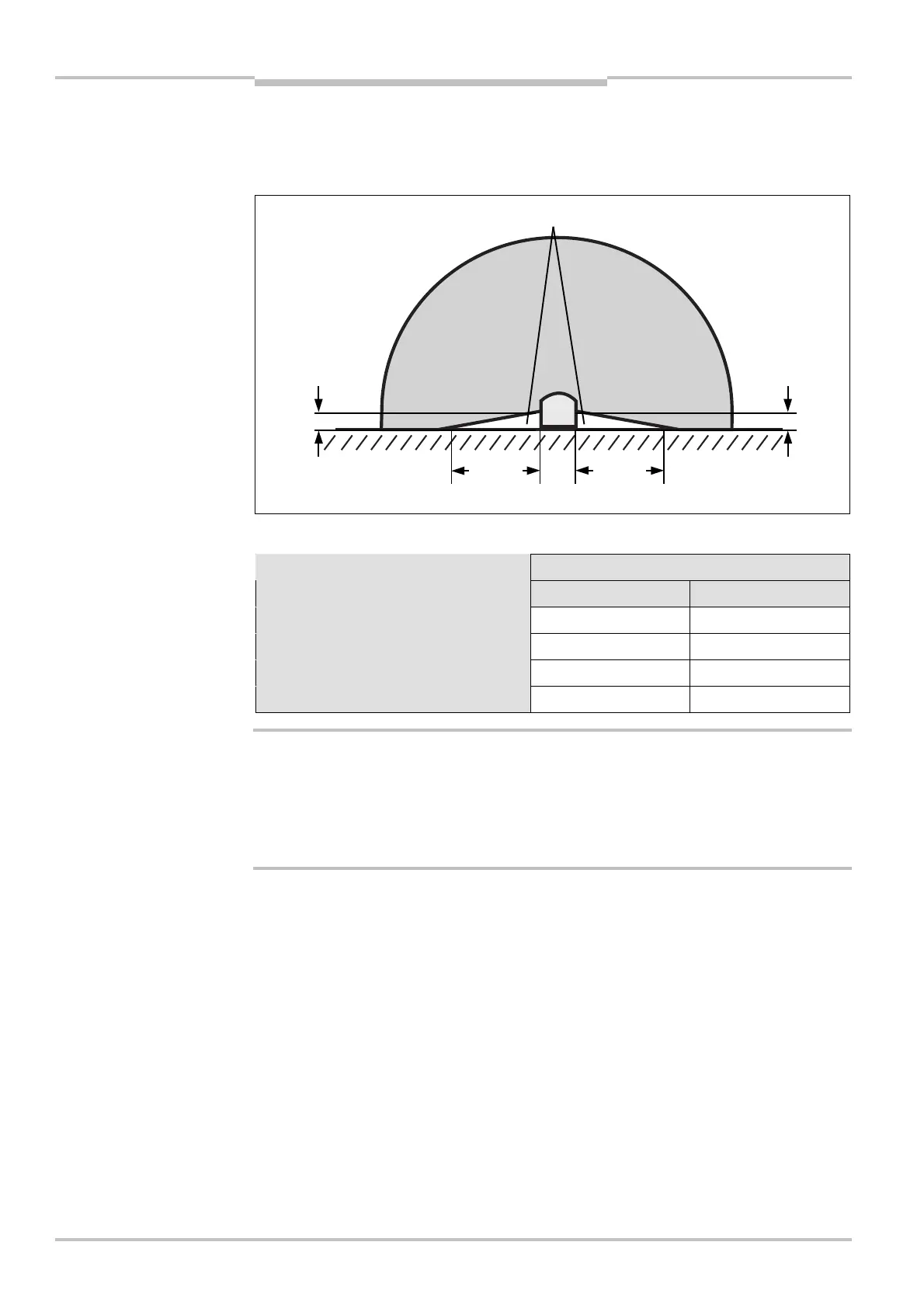

Fig.
44
:
Unprotected areas
for stationary applications
Tab.
22
:
Size of the
unprotected areas

WARNING

X
X
Y
Y
