Operating instructions Chapter 5
S3000
8009942/WK81/2012-11-28 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 91
Subject to change without notice
Mounting
5.7.4 Mounting with mounting kit 3
With the aid of mounting kit 3 (only in conjunction with mounting kits 1 and 2) you can
mount the S3000 such that the scan plane is parallel to the mounting surface. This
enables e.g. stable floor mounting or ensures that mounting kit 2 remains precisely
adjustable cross-wise on uneven wall surfaces.
 Mount the mounting kit 3 on the mounting surface.
 Then mount mounting kit 2 on mounting kit 3.
 Then mount mounting kit 1 on mounting kit 2.
 Then mount the S3000 on mounting kit 1.
 Pay attention to the maximum tightening torque for the threaded mounting holes M8×9
of 16 Nm.
 Adjust the S3000 longitudinally and cross-wise.
During mounting, please observe the dimensional drawings (see section 12.6
“Dimensional drawings” on page 159).

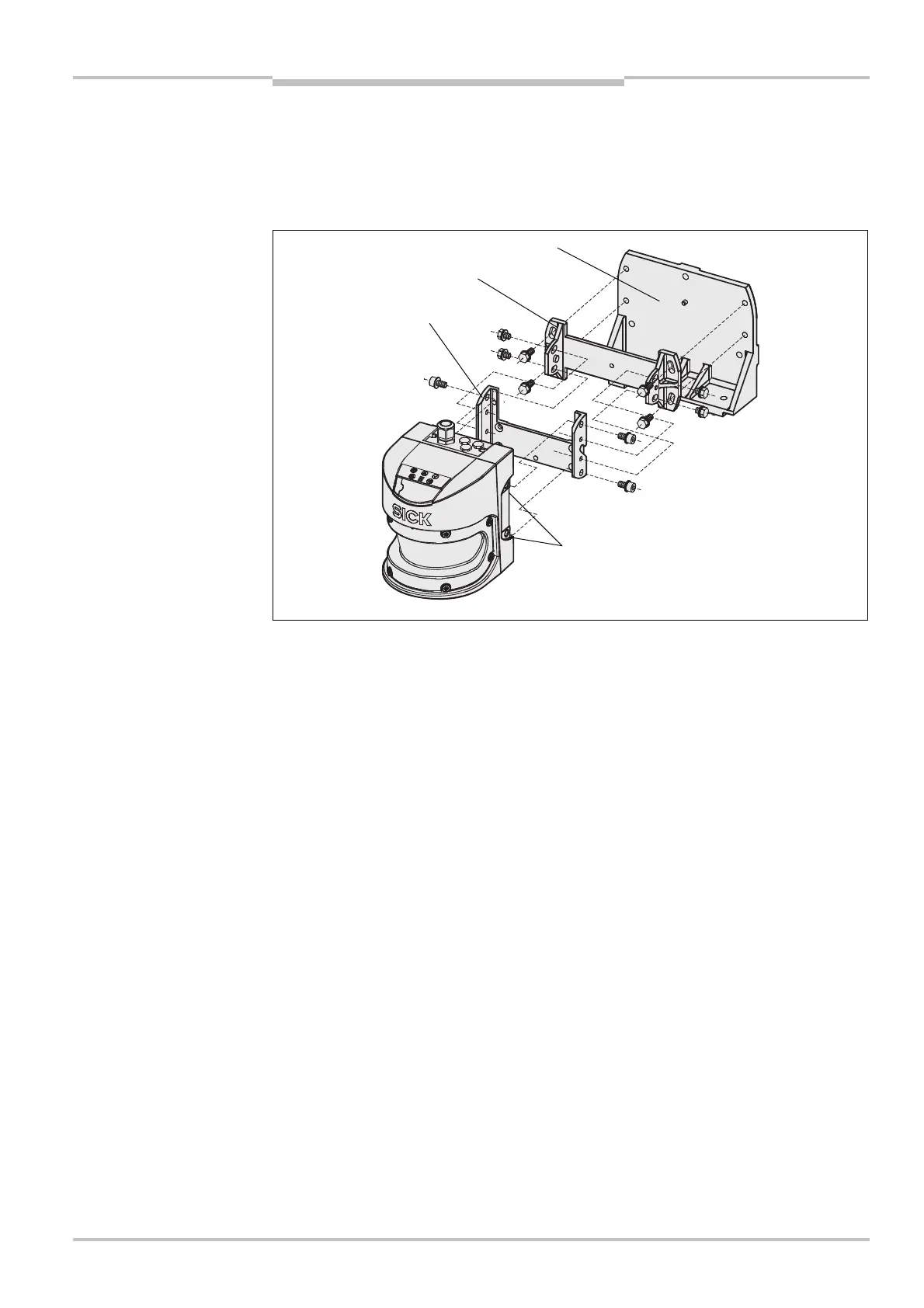

Fig.
53
:
Mounting with
mounting kit 3
Note
Threaded mounting holes
M8  × 9
Mounting kit 1
Fixing screws for the
S3000
Mounting kit 2
Mounting kit 3
