Operating instructions Chapter 7

S3000

Subject to change without notice

Application examples and

connection diagrams

7.2.2 Velocity-dependent vehicle monitoring for unidirectional travel

(S3000 Professional)

Using incremental encoders the S3000 Professional acquires the velocity of the vehicle via

its dynamic control inputs. For different velocities, various field sets with protective fields

and warning fields of varying sizes are configured in the S3000. The field sets are switched

dynamically using the vehicle velocity.

7.2.3 Vehicle monitoring with determination of the surrounding contour and

reflector detection (S3000 Expert)

The S3000 monitors the area in one direction of travel and stops the vehicle as soon as

there is an object in the protective field. In addition, the surrounding contour is measured

and reflectors fitted to the walls detected. Surrounding contour and reflector detection are

output via the RS-422 interface using configurable telegrams.

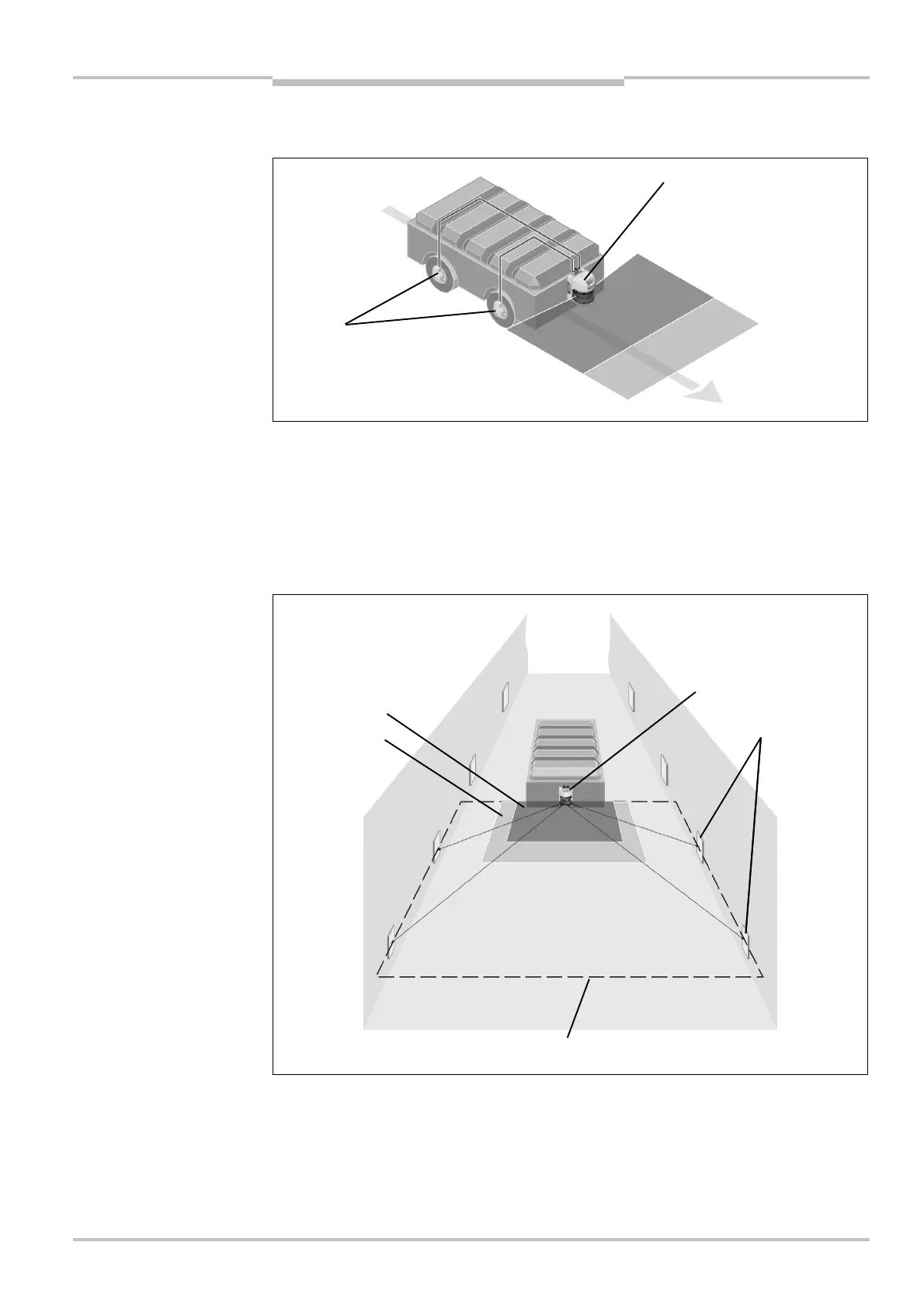

Fig.

Velocity-dependent

vehicle monitoring with

S3000 Professional

Fig.

Mobile application

with S3000 Expert

S3000

Professional

Incremental encoder

S3000

Expert

Reflectors

Warning field

Protective field

Surrounding contour
