Configurable functions
4.8 Universal I/O connections
W
ARNING
You are not allowed to use the universal I/O connections for safety-relevant functions!
You are only allowed to use the universal I/O connections for signaling. You must never
use the signals for controlling the application or for safety-relevant functions.
The S3000 has three universal I/O connections. You can configure these three
connections for one or more of the following functions (OR operator):
 contamination warning
 contamination error
 reset required
 error
 protective field
 protective field 2 (if the Dual protective fields field mode and the Simultaneous field
evaluation function have been selected)
 warning field
 simultaneous protective field
 simultaneous protective field 2 (if the Dual protective fields field mode and the
Simultaneous field evaluation function have been selected)
 simultaneous warning field or 2
nd
warning field (depending on the configured field mode)
 protective field of a connected guest
 protective field of a connected guest (if the Dual protective fields field mode and the
Simultaneous field evaluation function have been selected)
 simultaneous protective field of a connected guest
 warning field of a connected guest
 simultaneous warning field or 2
nd
warning field of a connected guest (depending on the
configured field mode)
The universal I/O connections are configured in the CDS in the Universal I/O area. Fig. 20
shows a configuration example.
If you operate the S3000 in the compatibility mode, then the connections on the
universal I/O are used as application diagnostic output, warning field output and
application diagnostic output for reset required.


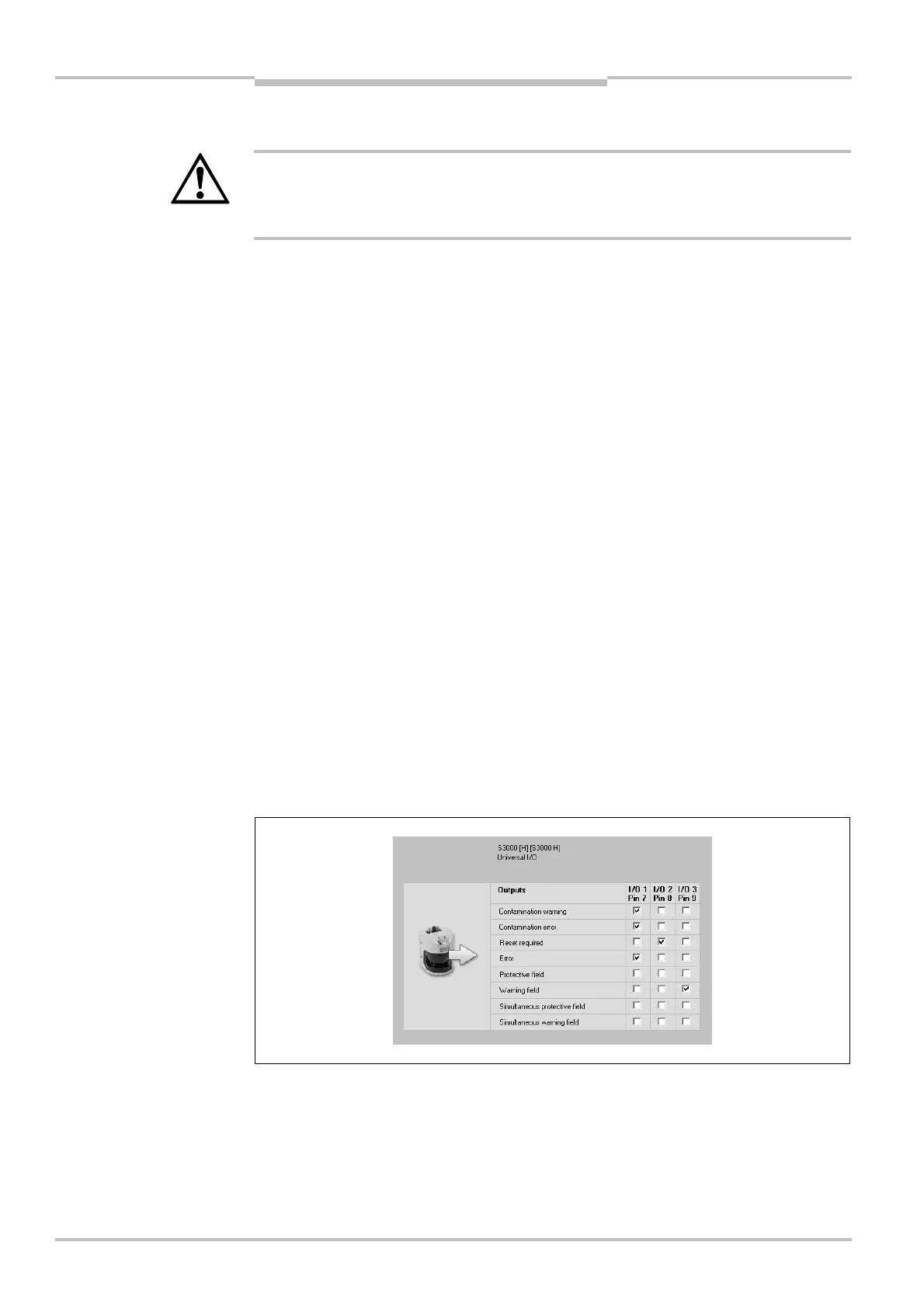

Fig.
20
:
Configuration
example universal I/O
connections of the S3000
Note
