SICK S3000 User Manual

Chapter 5 Operating instructions
S3000
82 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 8009942/WK81/2012-11-28
Subject to change without notice
Mounting
5.4.4 Methods of preventing unprotected areas
When the S3000 is mounted on a plane surface, there are areas in front of the mounting
surface that are not covered by the safety laser scanner .
These unprotected areas  become larger if you mount the S3000 using mounting kits.
Mounting variant Size of the unprotected areas
Direct mounting 109 mm
With mounting kit 1 112 mm
With mounting kit 1 and 2 127 mm
With mounting kit 1, 2 and 3 142 mm
Secure the unprotected areas!
For mobile applications, if the vehicle is accelerated to a maximum velocity of 0.3 m/s in
less than three seconds when in operation, you must prevent personnel from entering the
unprotected areas by means of mechanical trim panels, switch strips or fitting the S3000
in the vehicle trim panels.

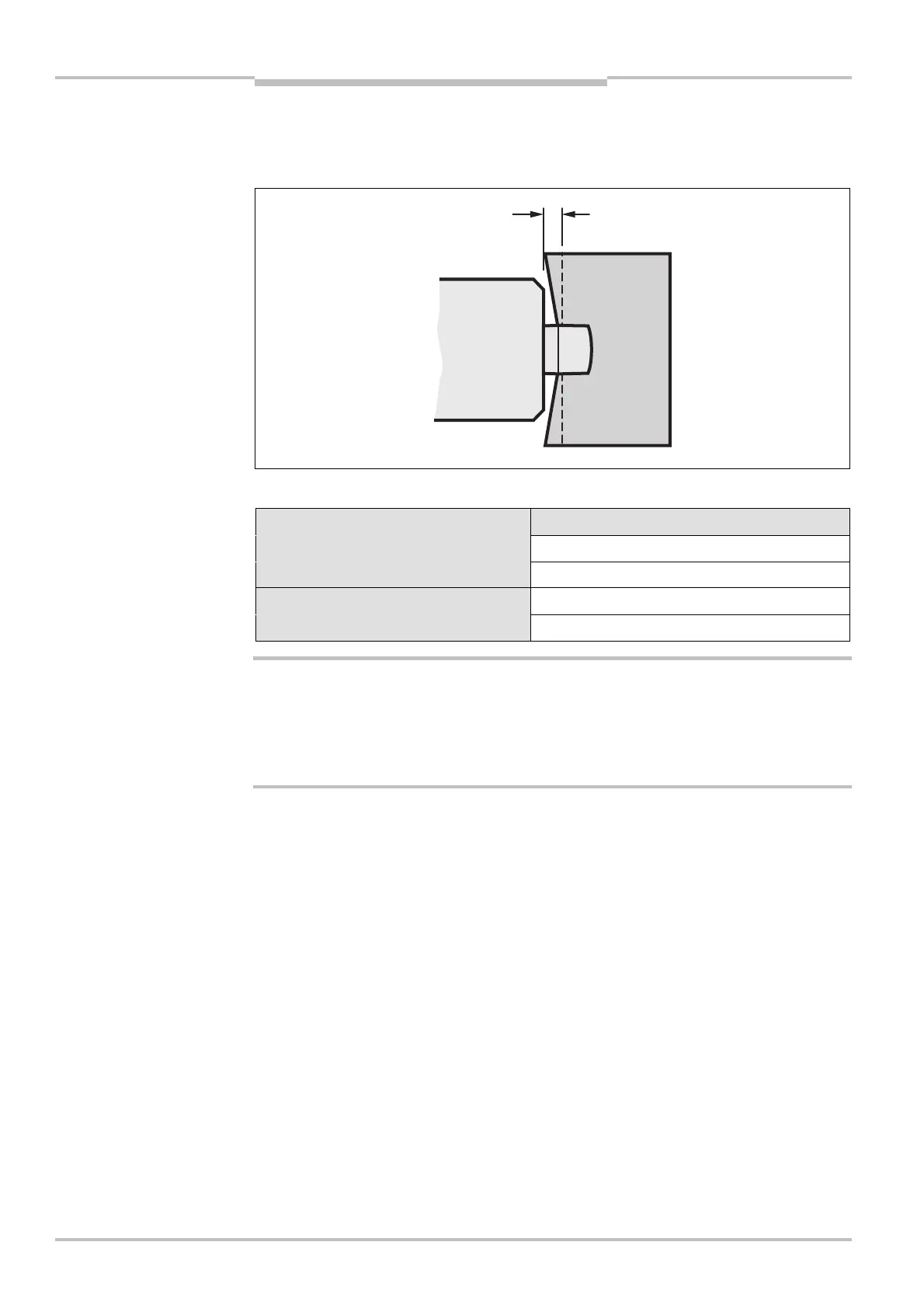

Fig.
42
:
Unprotected areas
for mobile applications
Tab.
21
:
Unprotected areas

WARNING

